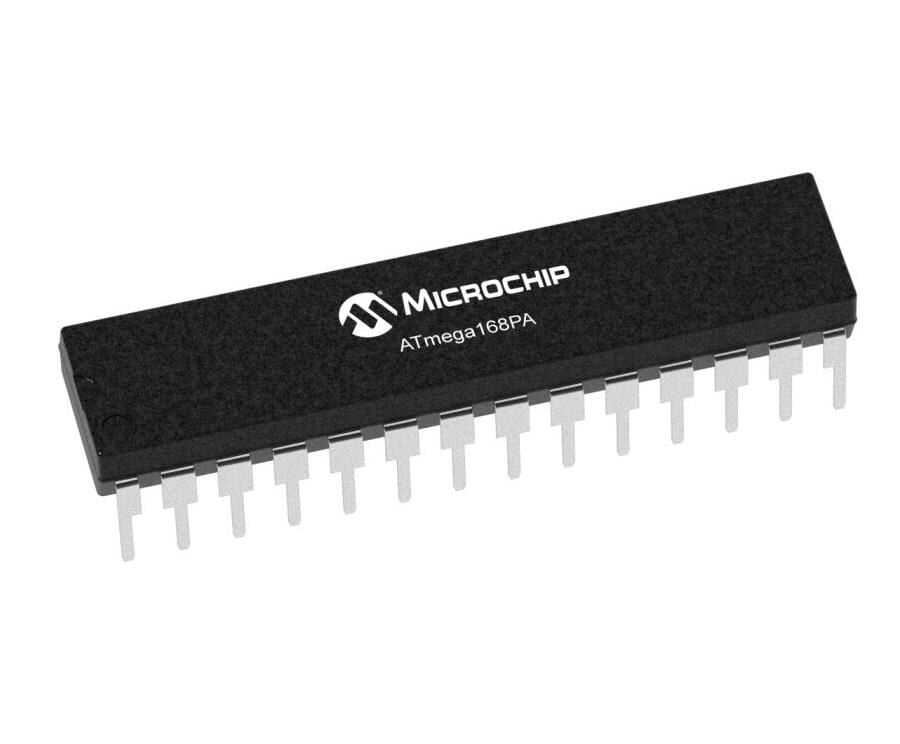

ATMEGA168PA-PU DIP-28 20MHz Microcontroller
High performance Microchip picoPower® 8-bit AVR® RISC based microcontroller, Combines 16 KB ISP flash memory with read-as-write capabilities, 512B EEPROM, 1 KB SRAM, 23 general-purpose I/O lines, 32 general-purpose work registers, three flexible timers/counters with comparison mode, internal and external interrupts, serial programmable USART, byte-oriented Two-Wire serial interface, SPI serial port, 6-channel 10-bit A/D converter (8 channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator, and five software-selectable power-saving modes. The device operates between 1.8-5.5 volts.
Technical Specifications
| Product Code | ATMEGA168PA-PU |
| Program Memory Type | Flash |
| Program Memory Size | 16kB |
| Bus Width | 8-Bit |
| Max Clock Frequency | 20 MHz |
| Data RAM Size | 1 kB |
| I/O Count | 23 |
| ADC Resolution | 10 bit |
| Operating Voltage Range (V) | 1.8 - 5.5V |
| Number of Pins | 28 |
