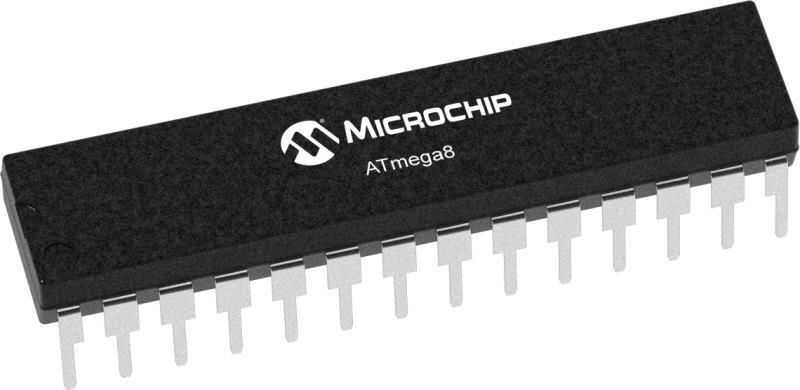

ATMEGA8-16PU DIP-28 16MHz Microcontroller

High-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller combines 8 KB ISP Flash memory, read-as-write capabilities, 512B EEPROM, 1 KB SRAM, 23 general-purpose I/O lines, 32 general-purpose run registers, three flexible timers/counters with comparison mode, internal and external interrupts, serial programmable USART, byte-oriented Two-Wire serial interface, 6-channel 10-bit A/D converter (8 channels in TQFP and QFN/MLF packages), programmable watchdog timer with internal oscillator , SPI serial port and five software-selectable power-saving modes. The device operates between 2.7-5.5 volts.

Technical Specifications

Product Code	ATMEGA8
Program Memory Type	Flash
Program Memory Size	8kB
Data Width	8-Bit
Max Hours Frequency	16 MHz
Data RAM Size	1 kB
I/ Number O	23
Number of Timers	3
Operating Voltage Range (V)	2.7 - 5.5V

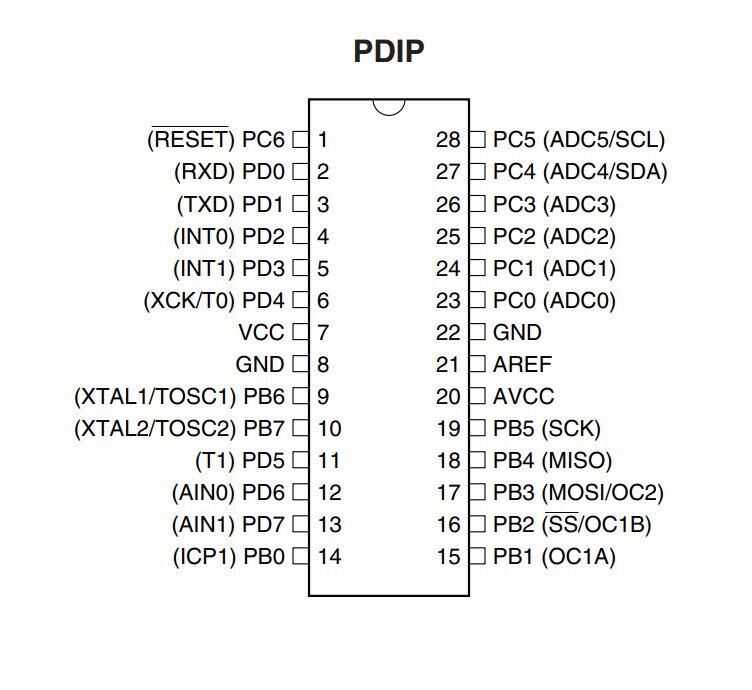

Number of Pins	28

ATMEGA8 Datasheet
