12V Battery Capacity Indicator USB+Type-C - Red

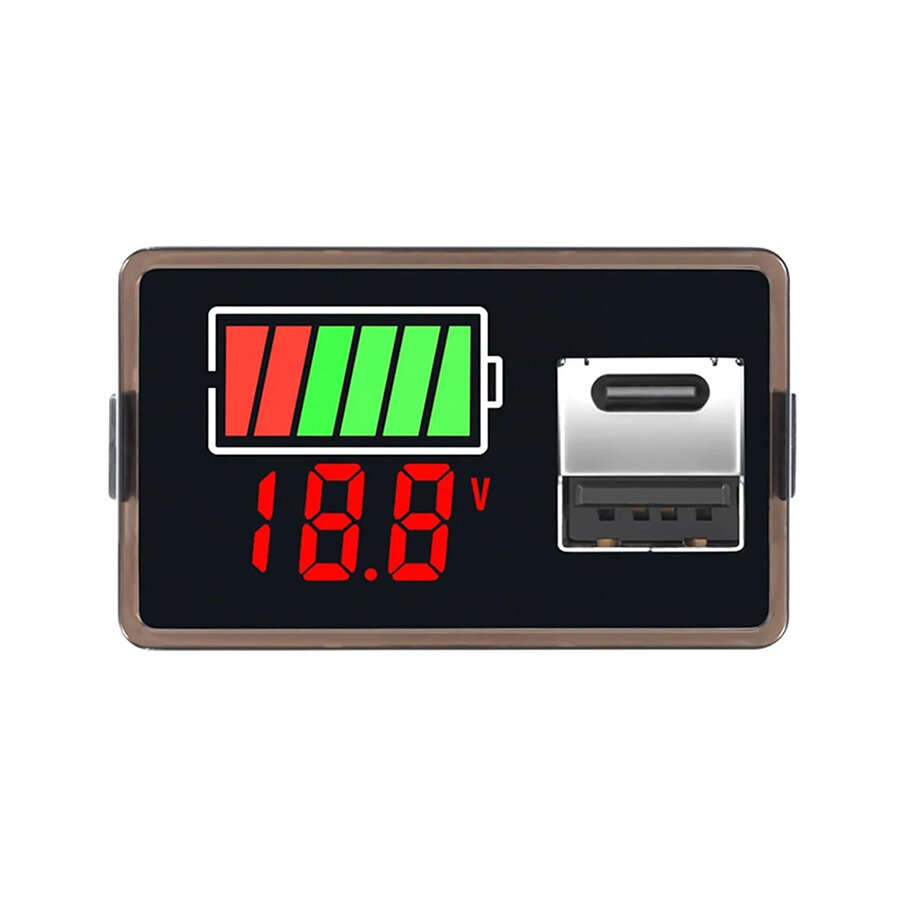

The 12V Battery Capacity Indicator USB+Type-C - Red can display the battery voltage and battery level, and you can also plug it directly into a phone or other 5V equipment charger.

It is commonly used in vehicles such as golf carts, cars, boats, caravans, ships, etc.

It is used for 3 different types of batteries. To switch between battery types, hold down the button on the back of the device for a long time while it is on. A message will appear on the screen. Release the button when the message appears, and the mode will change with each subsequent press. When you reach the desired mode, release the button and wait a moment, and that mode will be activated. P12 - 12V battery, L3 3S lithium battery, F3 3S iron lithium battery settings.

Features

Detection Range: 8-30V
USB Output Voltage: 5V DC

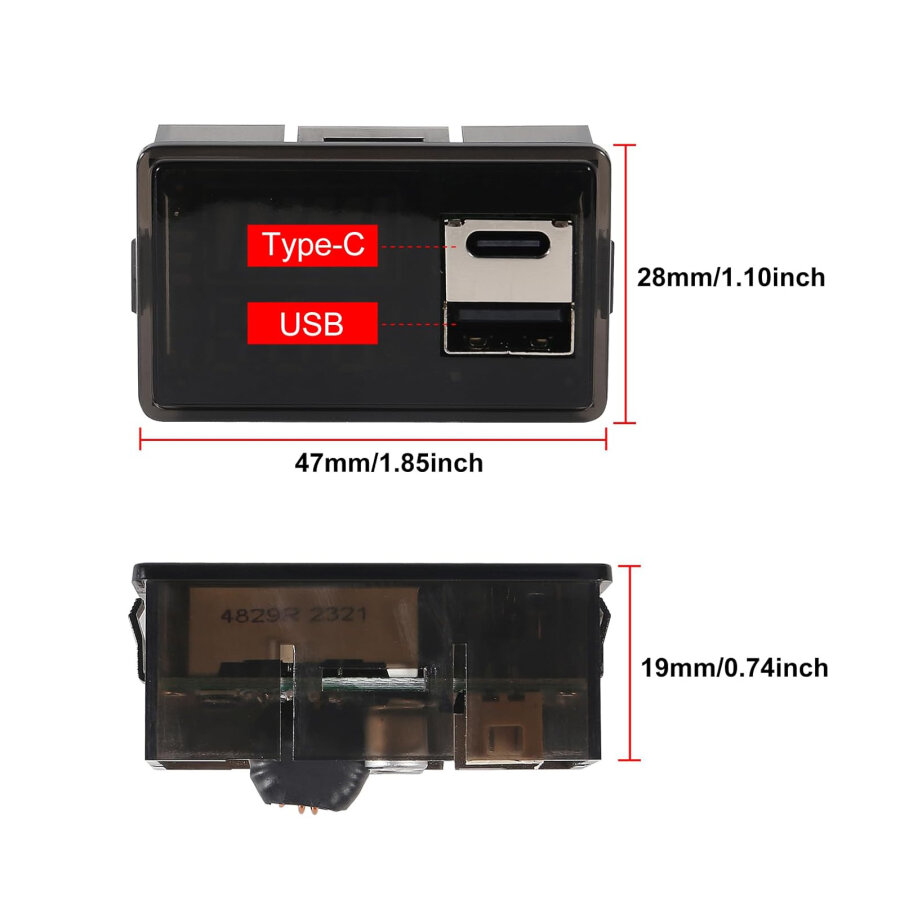

Dimensions: 47.6x19.4x28.7mm
