3.3V 5V Logic Signal Test Pen - Circuit Debugger

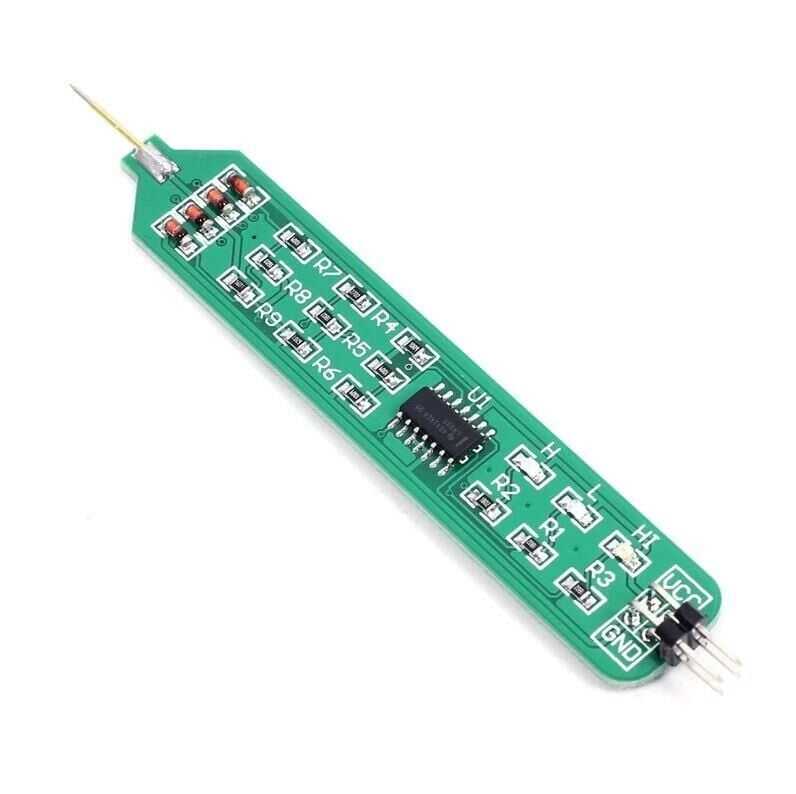

3.3V 5V Logic Signal Test Pen - Circuit Debugger. Thanks to its flexible probe, you can test the logic signal without using a multimeter. It is a pen. It is easy and fast to use. It has a red-green-blue LED on it that indicates the signal level. The red LED indicates high level, the green LED indicates low level, and the blue LED indicates that the signal is in the range of 0.6-2.4V or is not connected.

Features:

Operating Voltage: 3.3 - 5V
Dimension: 15x102mm
Current signal between 0-20mA production

Level Determination with 5V Power

Low Level between 0 - 0.6V
High Resistance between 0.6 - 2.4V
High Level above 2.4V

Level Determination with 3.3V Power

Low Level between 0 - 0.39V
0.39 - 1.49V High Resistance
High Level above 1.49V
