8520 8.5x20mm 28000RPM 2.1V Drone Motor
34,80
TL
+
VAT
41,76
TL
Notify Me When It Arrives
Notify Me When It Arrives

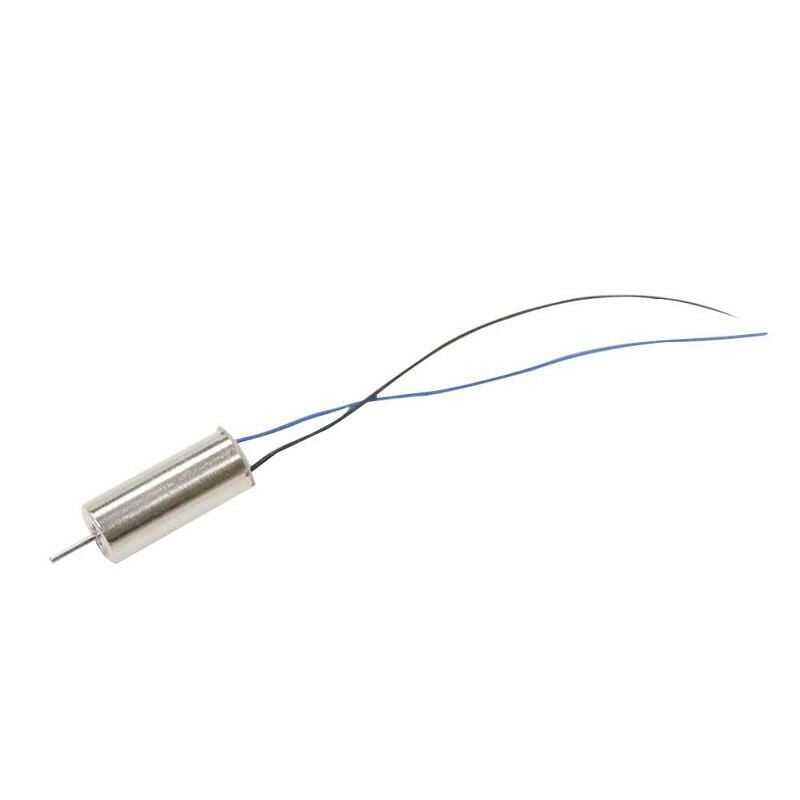

8520 8.5x20mm 28000 RPM 2.1V Drone Engine
Cylindrical shaped drone engine that you can easily use in your Drone, Quadcopter and Multicopter projects. 2 wires connected.
Coreless micro motor for Model Airplane Helicopter, electric toys.
Note: The product is stock material. For this reason, there may be small stains on it. The functionality of the products is tested and shipped.
Technical Specifications
- Motor Diameter: 8.5mm
- Shaft Diameter: 1mm
- Motor Length: 20mm
- Shaft Length: 6mm
- Operating voltage range: 1.5-4.2V DC
- Rated speed : 28000 ± 10% RPM
- Rated current: max. 200mA
- Rated Load: 20500 ± 6% RPM
- Rated load current: 2.7 ± 0.25A
- Direction of rotation: CW and CCW
- Cable Length: Approx. 65mm
