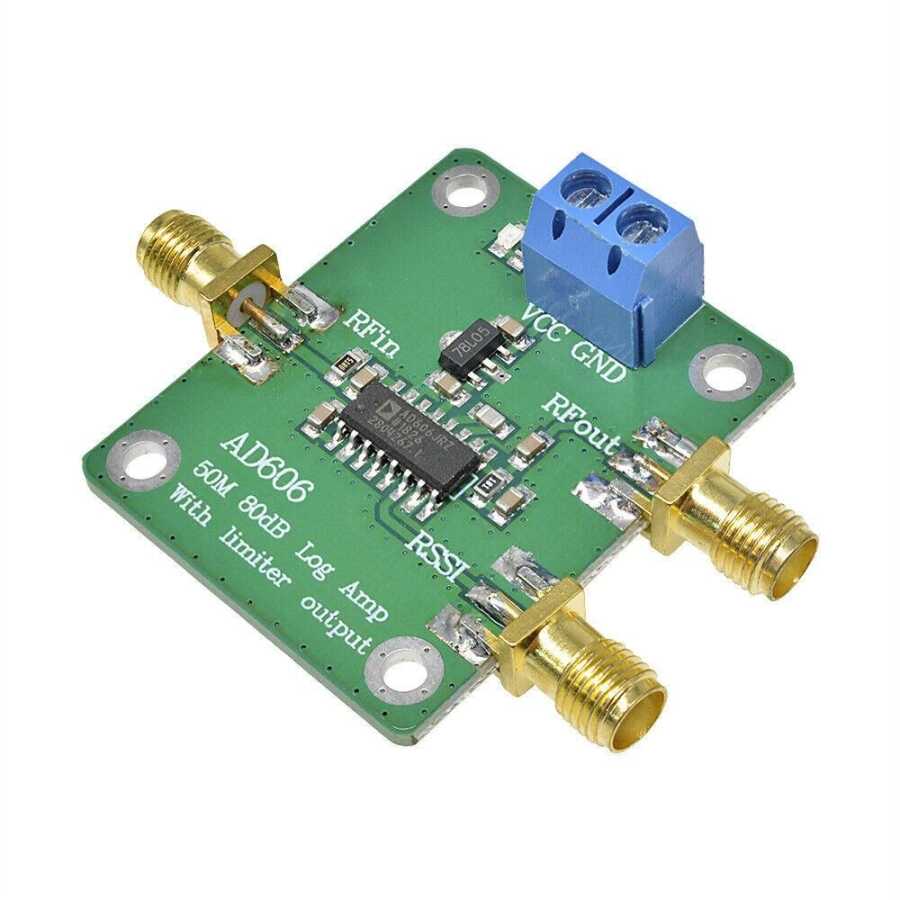

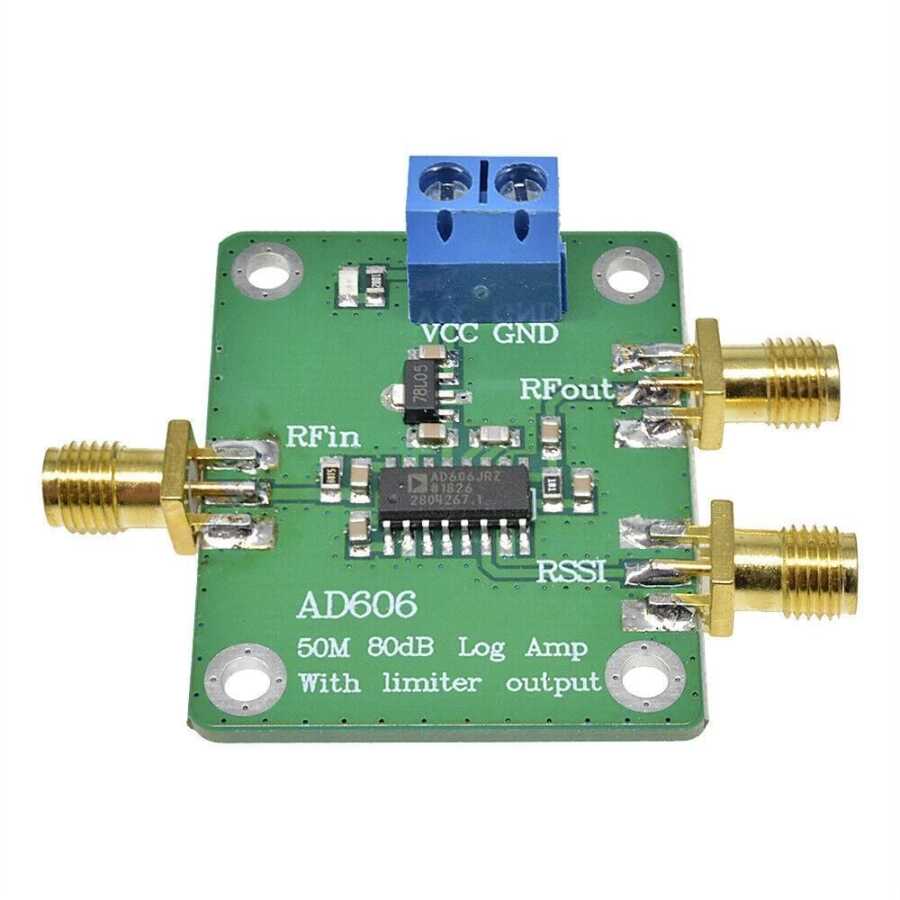

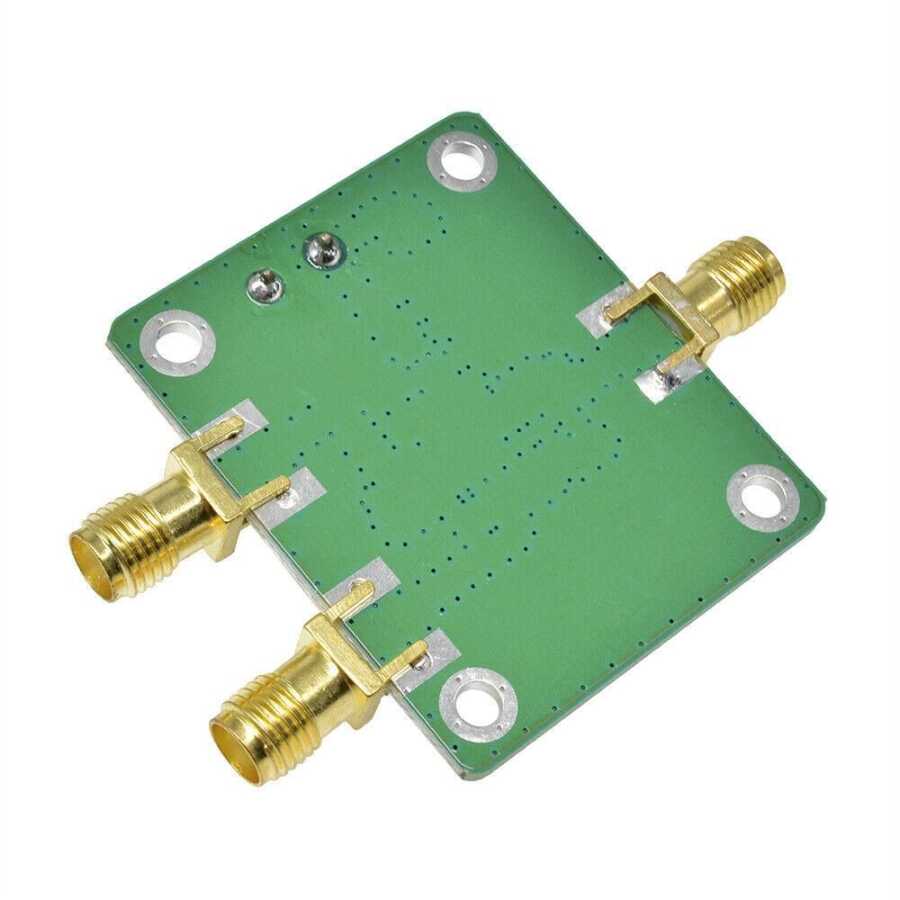

Ad606 80dB Demodulated Logarithmic Amplifier Module
AD606 output limiter module with 50MHz 80dB demodulation logarithmic recording is the amplifier. It has a wide range and adjustable output amplitude used for signal strength measurement. It has a 65mW CMOS compatible power saving mode with 325μW (typical value).
Technical Specifications
Logarithmic Amplifier Performance
–75 dBm to 5 dBm Dynamic Range
≤1.5 nV/ √Hz Input Noise
>Available up to 50 MHz
37.5 mV/dB Voltage Output
On-Chip Low Pass Output Filter
61 dB Output Flatness in 80 dB Range
638 Phase Stability @ 10.7 MHz in 80 dB Range
Adjustable Output Amplitude
Low Power
5 V Single Supply Operation
65 mW Typical Power Consumption
Up to 325 mW CMOS Compatible Power Interrupt
<5 ms Activation/ Deactivation Time
Uses
Ultrasound and Sonar Processing
Amplifier 100 MHz Phase Stable Limiting up to
Received Signal Strength Indicator (RSSI)
Wide Range Signal and Power Measurement
