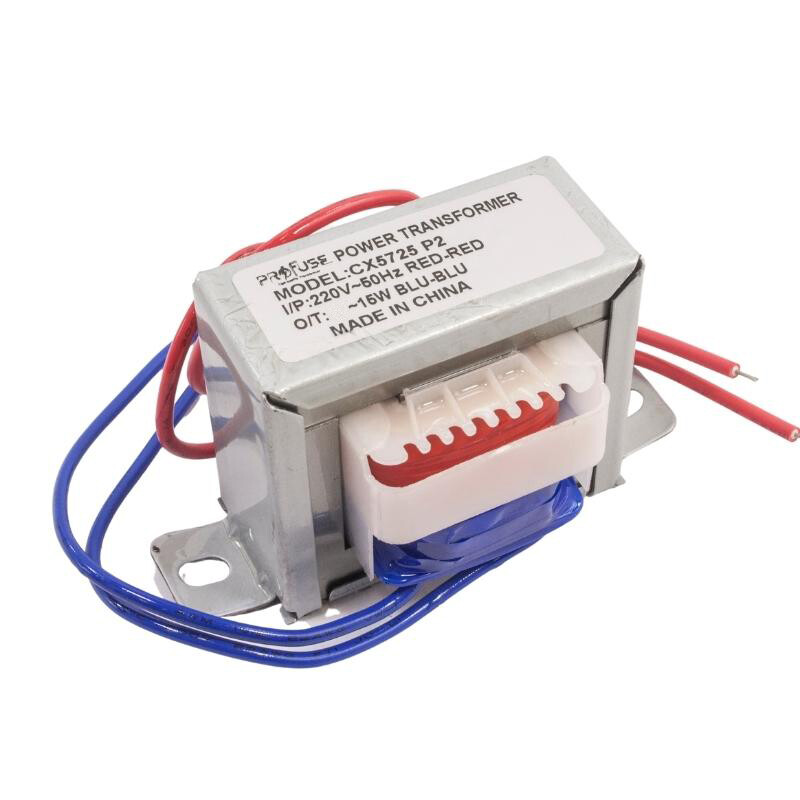

CX-5725 15W 24V AC Power Transformer

CX-5725 15W 24V AC Transformer - Transformer

Transformer or in short transformer is an electrical device that connects two or more electrical circuits together by electromagnetic induction. It transfers energy from one electrical circuit to another via an electromagnetic field. Transformers are machines that make the desired change in the voltage and current values ​​​​of electrical energy at a certain power

Profuse brand transformers are made of high quality silicone and steel sheet. They are single-phase circuit elements used to obtain the desired voltage and current value in AC circuits. For product connection, the feed is made from red cables and the output is made from blue cables.

Features

• Model: CX- 4824
• Supply Voltage: 220V AC
• Output Voltage: 24V AC
• Maximum Output Current: 0.625A
• Output Power: 15W
• Frequency: 50 Hz
• Connection;
  • Input: Red Cable
  • Output: Blue Cable
• Single Phase
• Material: High Quality Silicone and Steel Sheet
• Coil Material: Copper Enamelled Wire
• Weight: 534g
