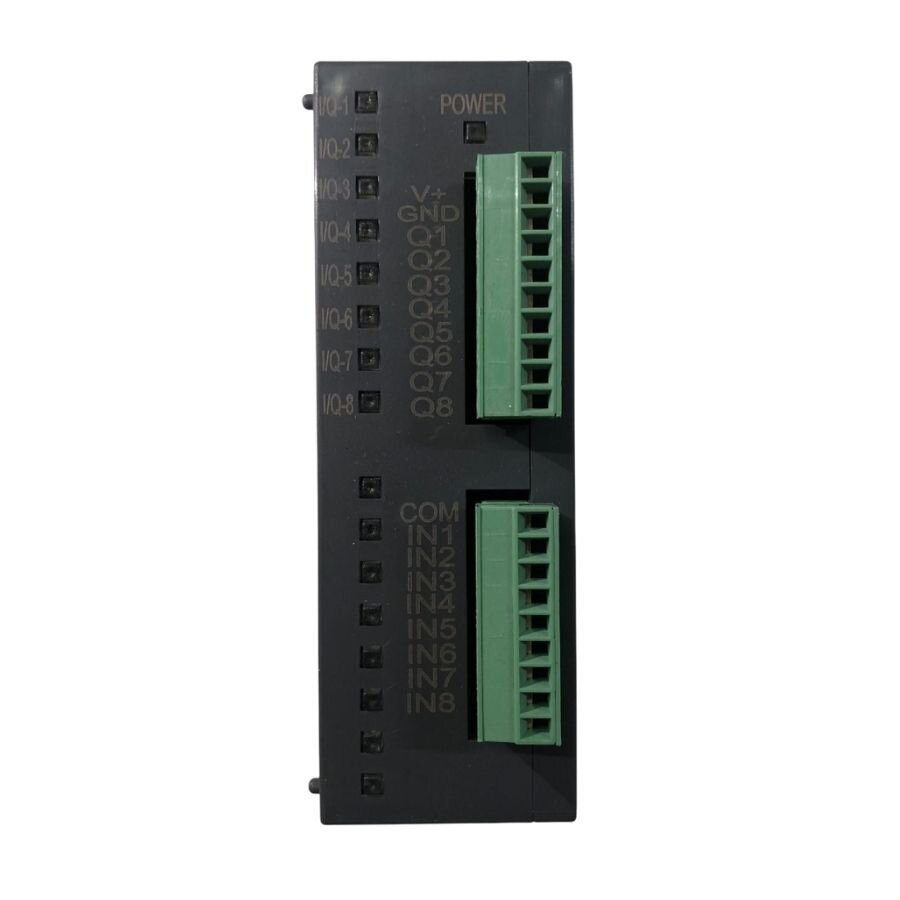

DELTECH I/Q-8 12-24V 4A Rail Type DC Motor Driver
DELTECH I/Q-8 12-24V 4A DIN Rail Type DC Motor Driver
The DELTECH I/Q-8 12-24V 4A DIN Rail Type DC Motor Driver is a DC motor controller with a microprocessor-based system that allows precise speed control and external direction control. It has instantaneous direction change capability and can withstand a peak current of 40A for 4ms.
Inputs
- Power Supply
- COM
- Input
Outputs
- PNP Output
General Features
- PLC CONTROL
- SENSOR AND ANALOG CONTROL
- PNP AND NPN INPUT
- 1 KHZ PNP OUTPUT
- Peak Current 40A for 4ms
- Mosfet Technology
- Mono block heatsink
- Input isolation 3700Vrms 20mA
- Slim and compact design
Specifications
- Input Voltage: 12-24VDC
- Continuous Output Current: 12V DC-- 8A / 24V DC --4A
- Operating Temperature: -55 °C to +110 °C
- Response Time: 1ms
- Mounting Type: DIN Rail Mount
- Dimensions: 32x87x114mm (W*H*D)
- Device Weight: 150 grams
SAFETY INSTRUCTIONS
• Do not connect or disconnect cables from terminals while the device is powered.
• Make sure the cable connections are correct as specified on page 3. The device will not be covered under warranty for damage caused by incorrect connections.
• Avoid operating the device in humid conditions.
• It is recommended to use the device in environments with proper air circulation.
• Use a power supply or battery that provides the required current for the valve, brake, or motor being u
