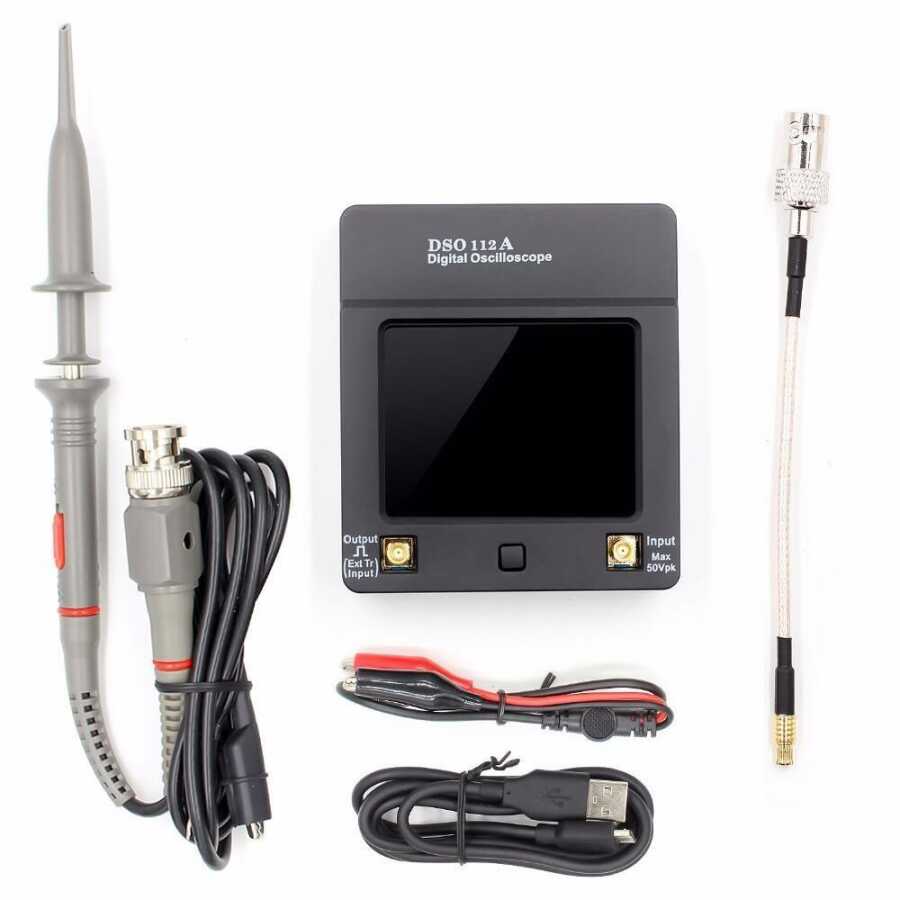

DSO112A TFT Touch Screen Oscilloscope 2MHz 5Ms/s

DSO112A Features :

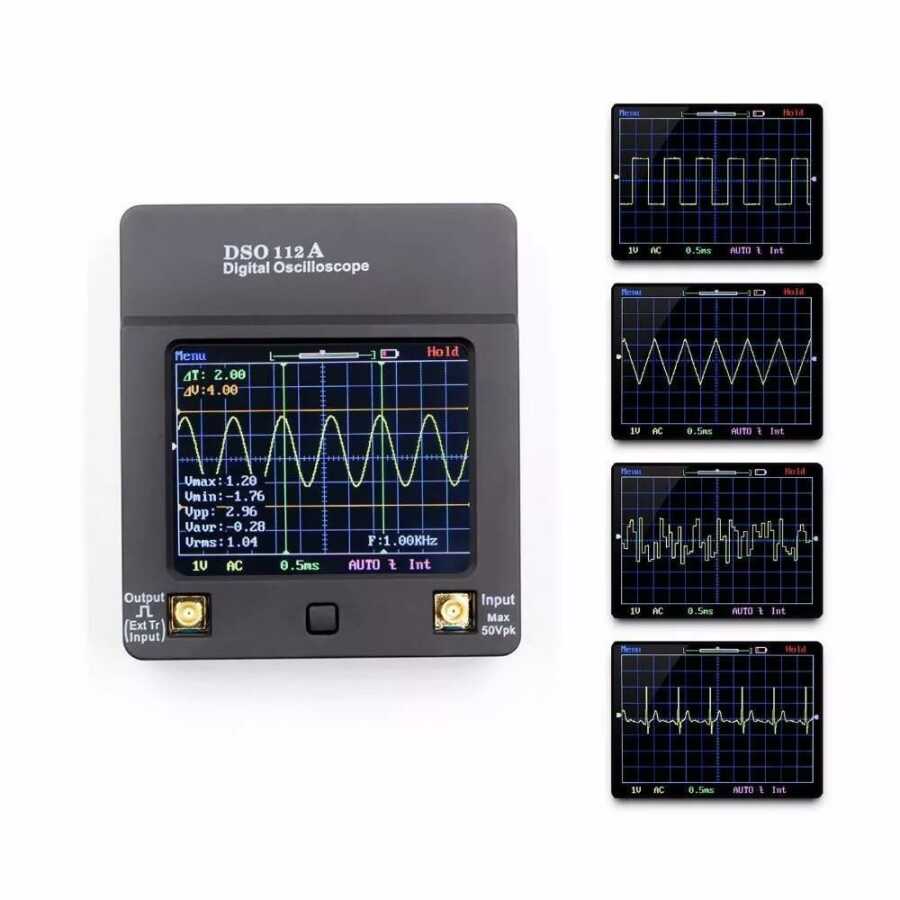

• Pocket oscilloscope with color display and touch panel
• 2 MHz analog bandwidth and 5 Msps maximum real-time sampling rate
• Unique for completely continuous signal rolling slow signal display (SCAN mode causes the signal display to be cut off)
• Vertical sensitivity: 2mV/Div, with high sensitivity and low noise
• Save 24 groups of preset parameters, waveform save and recall conveniently

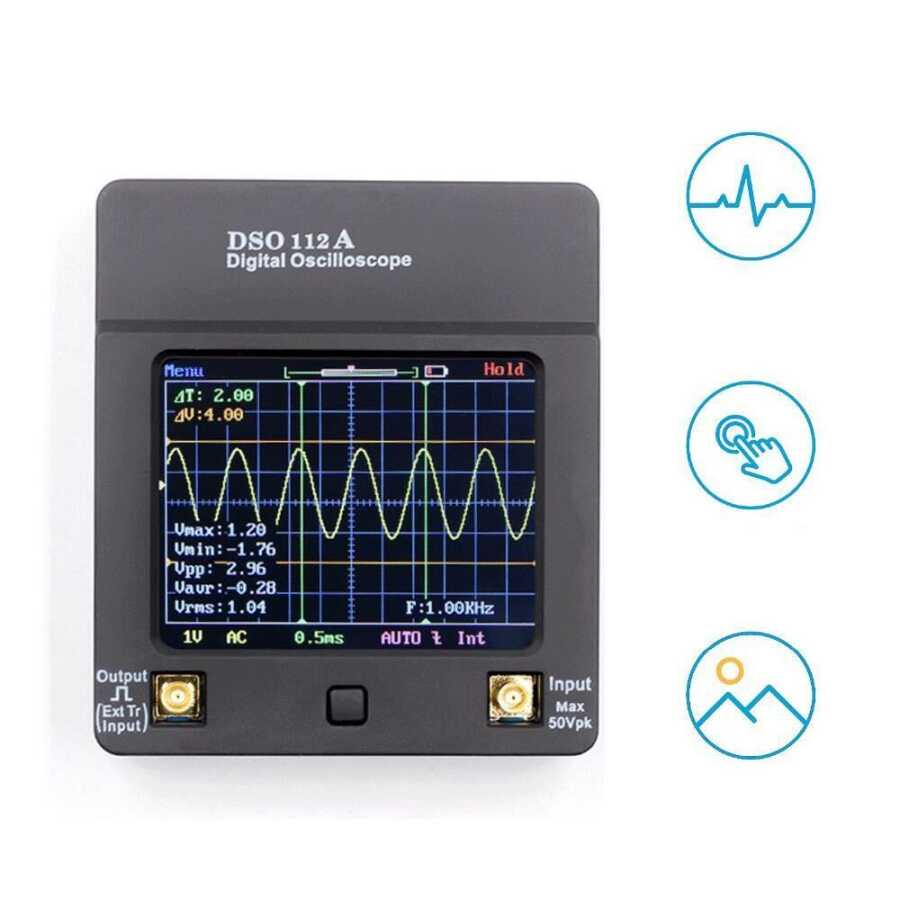

• Measurement frequency and Max./Min./Vpp/Avg. voltage values
• External trigger function adds stronger signal capture
• PC upload waveform data
• Freeze on waveform display at any time (HOLD function)
• Square wave test signal coming 1000Hz / 3.3V
• Firmware upgradeable via micro USB
• Battery / USB powered, built-in smart charger
• Analog frequency bandwidth: 0 - 2 MHz
• Max. real-time sampling rate: 5 Msps
• Vertical sensitivity: 2mV / Div-20V / Div, 12 graduated s (gradual 1-2-5)
• Horizontal time base range: 1μs / Div-50s / Div, 21 degrees (with progressive 1-2-5)
• Max. input voltage: 50Vpk (100Vpp)
• Max. record length: 512/1024 optional
• Input resistance: 1M ohm
• ADC precision: 8 bit
• Combining method: DC / AC
• Trigger type: Auto, normal, single
• Trigger edge: Rising / falling edge
• Trigger source: Internal / external
• External trigger voltage: 0 - 15 V
• Time cursors can automatically calculate and display the time difference
• Voltage cursors can automatically calculate and display the voltage difference
• Display: TFT color screen
• Power supply: 3.7 V, 1200 mAh Li-ion battery (included), USB Interface

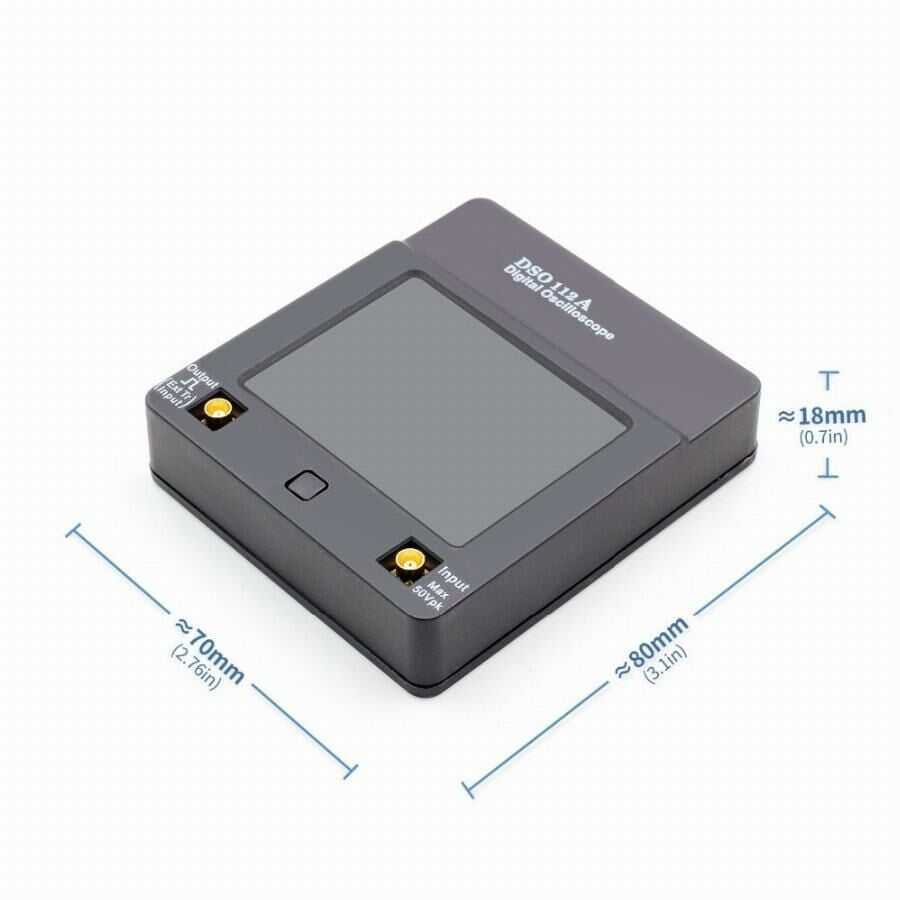

• Dimensions: 68 x 78 x 18 mm (2.7 x 3.1 x 0.7 in) )
• Weight: 85 grams (3.02 oz)
