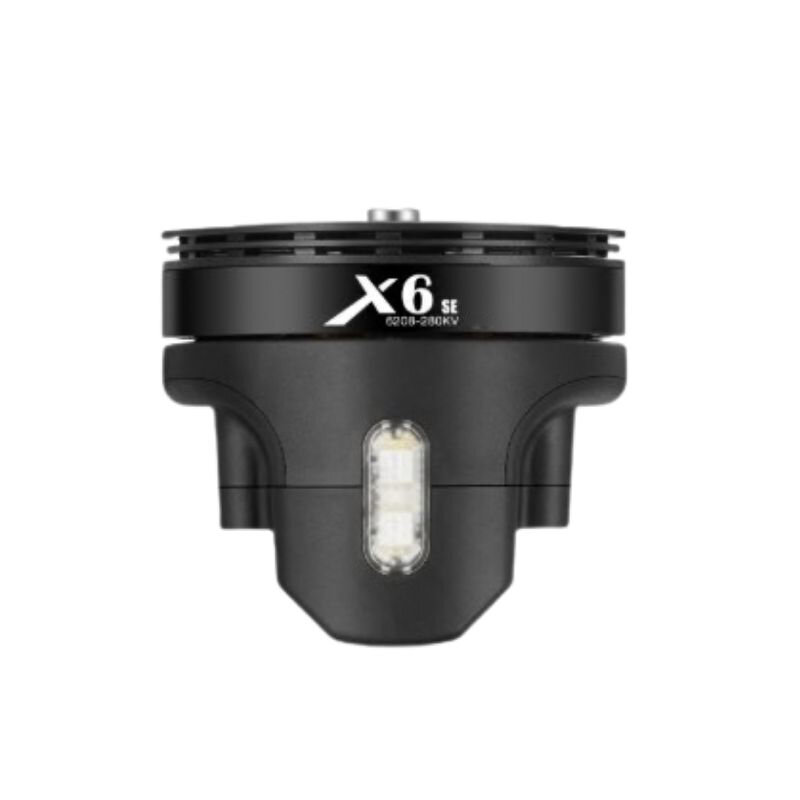

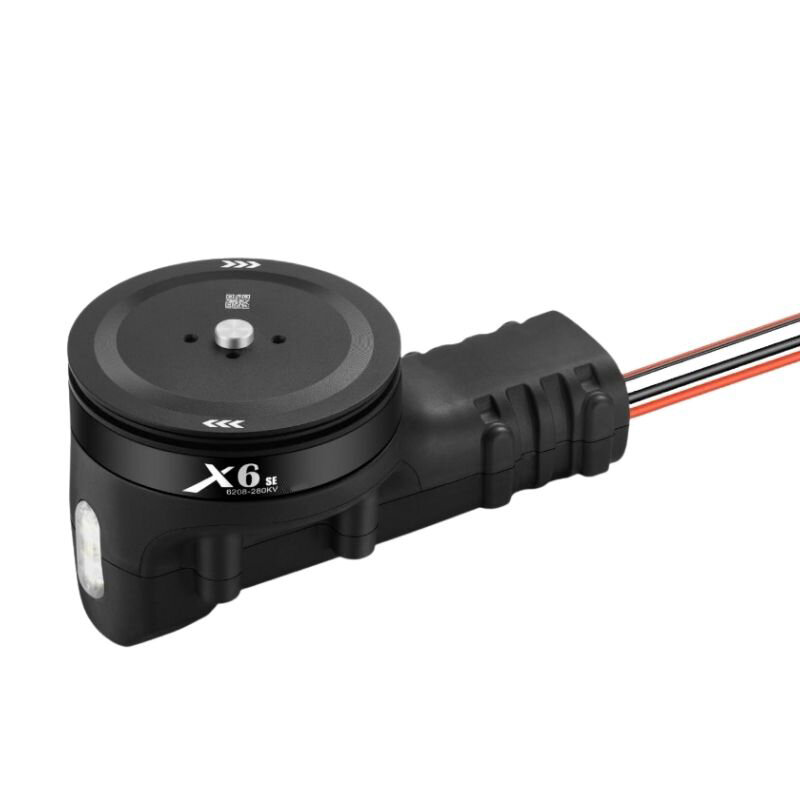

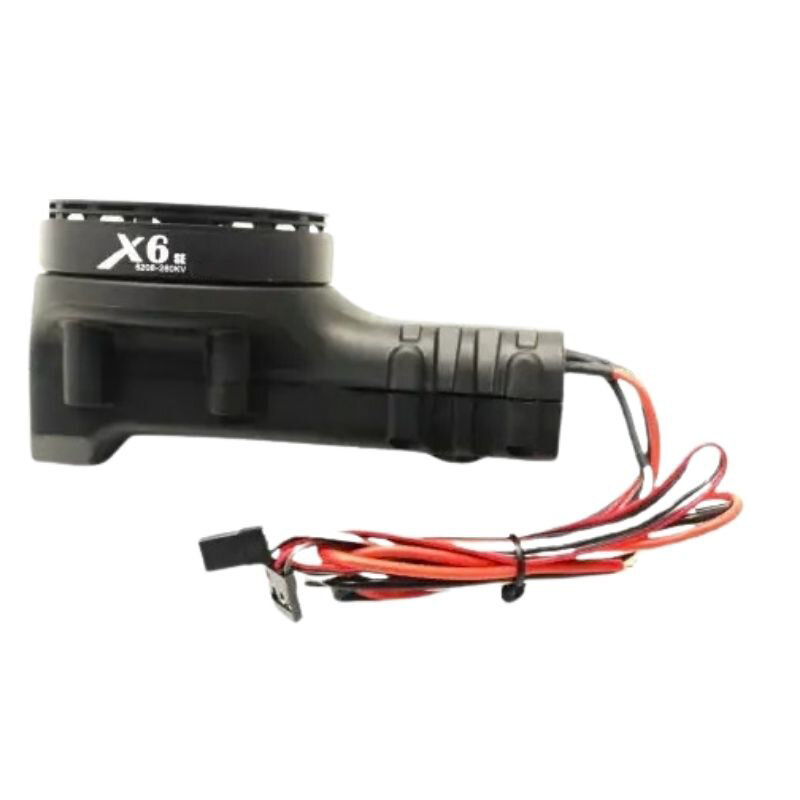

Hobbywing X6-SE 280KV Drone Motor - CW

Hobbywing X6-SE 280KV Drone Motor - CW

The Hobbywing X6-SE 280KV Drone Motor - CW is a brushless DC motor designed as part of an integrated propulsion system for drone training and education applications. With a frame size of 6208 and a rating of 280KV, this clockwise (CW) rotating motor offers reliable performance for medium-lift quadcopter builds and, when paired with 2270 propellers, provides a maximum thrust of 6.2 kg per rotor.

Suitable propellers can be found here.

Features

• 280KV Motor Specifications: Optimized for 6S LiPo batteries with balanced power and torque distribution.
• High Thrust: Produces a maximum thrust of 6.2 kg per rotor, 8 kg Suitable for quadcopters.
• 25 mm Arm Tube Compatibility: Designed to fit drones with a 25 mm diameter arm tube.
• Lightweight Design: Weighs only 373±15 g with the propeller, minimizing the total drone weight.
• CAN Protocol Support: Integrates with advanced flight control systems using CAN communication.

Applications and Use Cases

• Aerial Photography: Stable lift capacity makes it suitable for camera-equipped quadcopters.
• Drone Training and Education: Specifically designed for learning platforms and educational robotics programs.
• Inspection Missions: Reliable performance for industrial and infrastructure inspection flights.
• Mapping and Surveying: Mapping applications requiring stable flight.
Provides consistent thrust.
• Professional Drone Builds: Integration into custom 8 kg quad-propeller drone designs for enthusiasts.
• Multi-Rotor Racing: Precise motor control suitable for sports and recreational drone flight.

Technical Specifications

• Model: X6-SE
• SKU: 30550005801
• KV: 280
• Arm Tube Diameter: 25 mm
• Battery: 6S
• Recommended Thrust: 2-2.5 kg/rotor
• Maximum Thrust: 6.2 kg/rotor
• Maximum Power: 1070 W
• Suitable Propeller: HF22*7.0″
• CAN Protocol: Yes

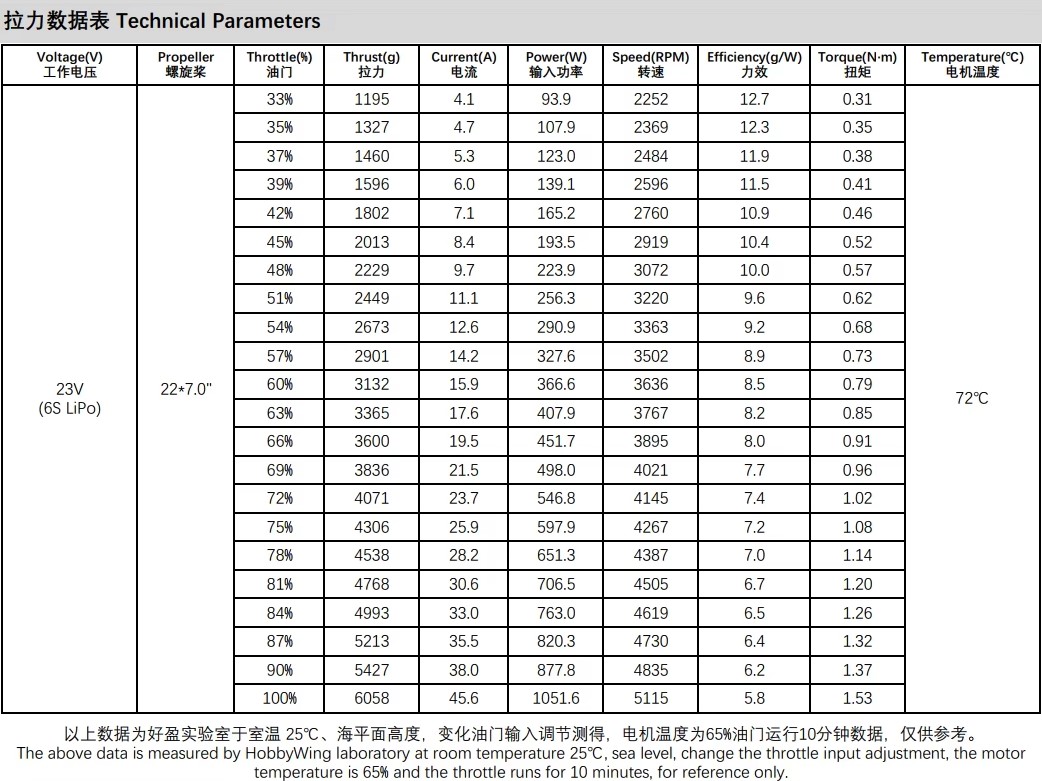

Power Table

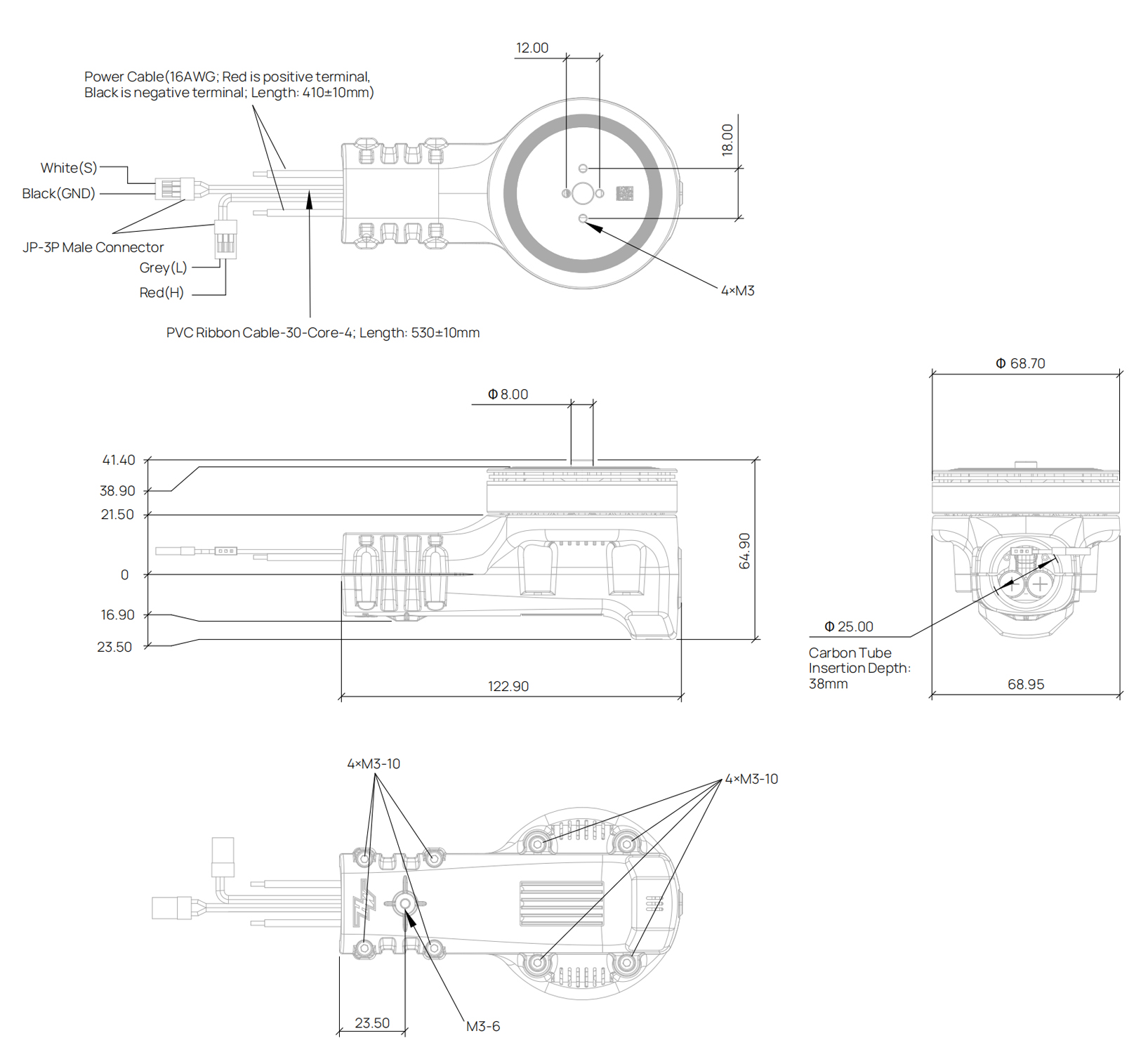

Dimensions
