LP-20-C/RJ45/015/PE-42-001 Waterproof Ethernet Connector - Male
Product code :
KOM.KNN.05.000435
249,40
TL
+
VAT
299,28
TL
Notify Me When It Arrives
249,40
TL
+
VAT
299,28
TL
Add to Favorite
10+
RecommendCommentAlarm Price

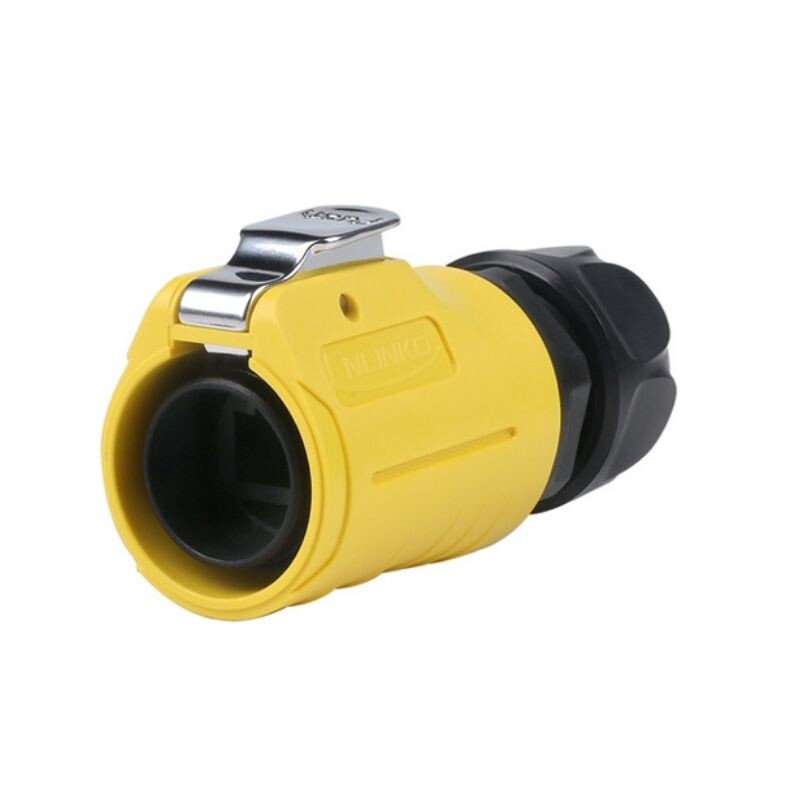

LP-20-C/RJ45/015/PE-42-001 Waterproof Ethernet Connector - Male
RJ45 series connectors have multiple style connection modes such as 1/4 bayonet connection and quick plug-in, which are applicable for harsh environments. These connectors have a protection system with high-frequency noise immunity and electromagnetic interference protection, and IP65 waterproof and dustproof protection level. Compliance with EIA568B and ISO/IEC11801 level D or CAT 3e standard, CAT6 compatible RJ45 connectors, data transfer rate reaches 10GBit/s.
CNLINKO products can be produced with cables upon request. Valid for special production bulk purchases. For special requests, you can send an e-mail to info@motorobit.com.
Technical Specifications
- Plug-in Style
- Standard crystal connector
- Stable contact resistance
- IP68 rating when connected
- Durability (Min): 500 uses
- Cable Size: 26 AWG
- Diameter Range: 6.5-8.5mm
- Rated Current: 1.5A
- Contact Resistance: <30mOhm
- Withstand Voltage: 1000V
- Operating Temperature: -40 C to 85 C
- Housing Material: High Performance Plastic
