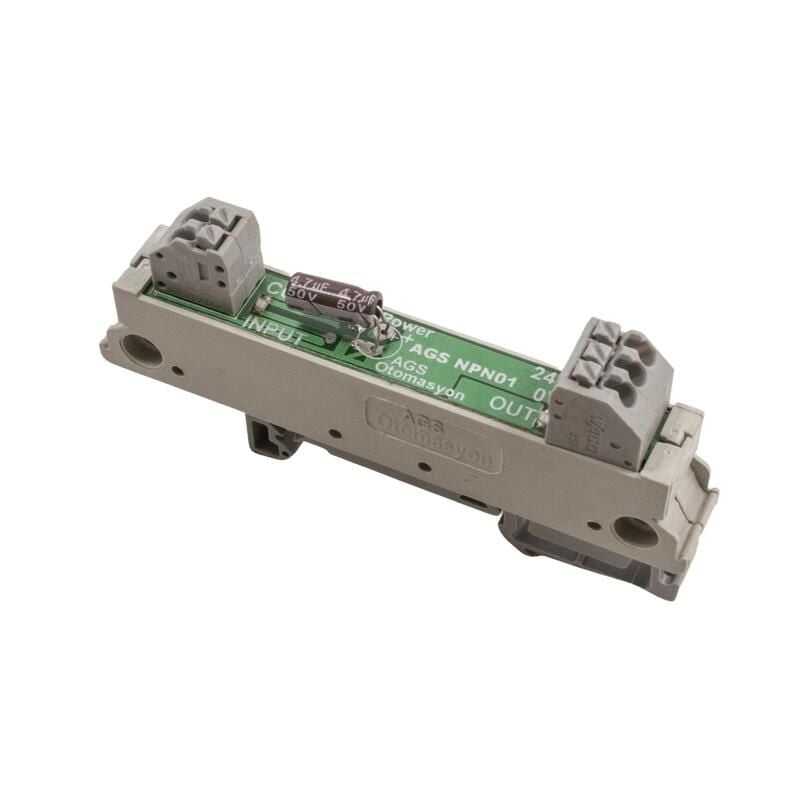

NPN-01 5A Single Channel DC NPN Relay Module - Rail Mounted

Features:

• Does not arc
• Long on-off life
• Optocoupler isolation
• Inputs compatible with PLCs with NPN and PNP outputs
• Suitable for PWM applications
• Green LED on inputs
• Red LED at the outputs
• Can be used as high current and PWM dimmer for LED lighting
• Hydraulic valves, pneumatic valves, DC contactors, DC motors, DC fans and similar inductive devices Ideal for loads and reactive loads

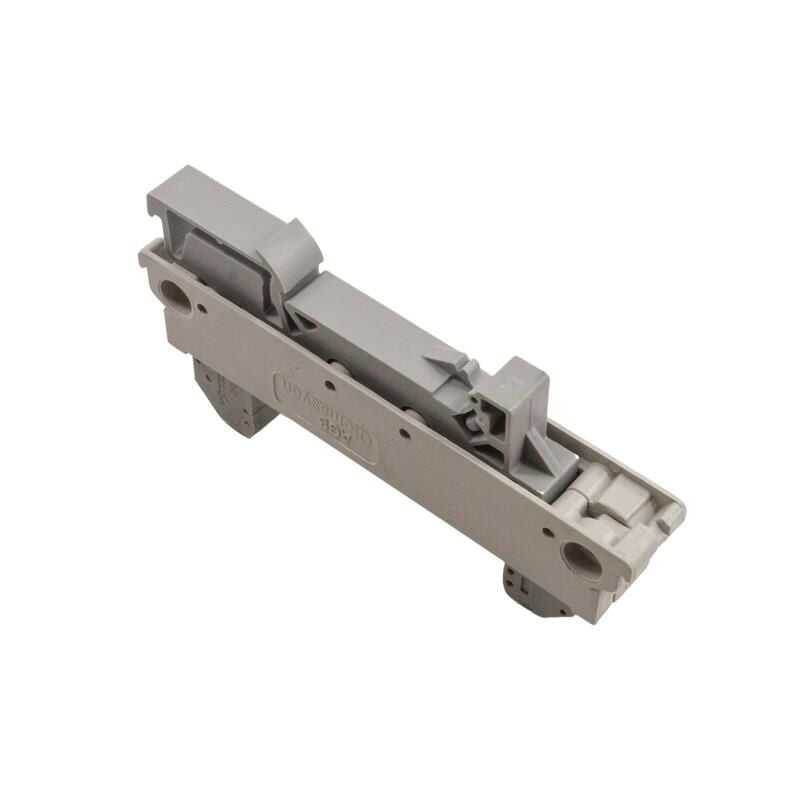

• W automatic rail mounting, Convenient design, advantage in assembly labor
• No to the problem of transistor heating (The power consumed on it is 35 times lower than the classical transistor)
• Dimensions: Length: 85mm, Width: 13mm, Depth: 40mm

Electrical Specifications:

• Operating Voltage (on): 5V>
• Operating Voltage (off): 5V<
• input current range: 7-8mA
• Max. Trigger Frequency: 10 KHz
• Output Voltage Range: 12-50V
• Max. Current: 5A
• Max. On - Off Time: 150ns

Connection Diagram:
