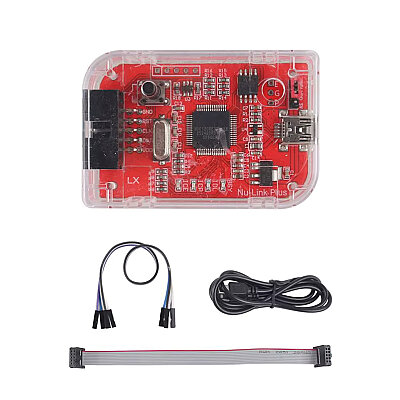

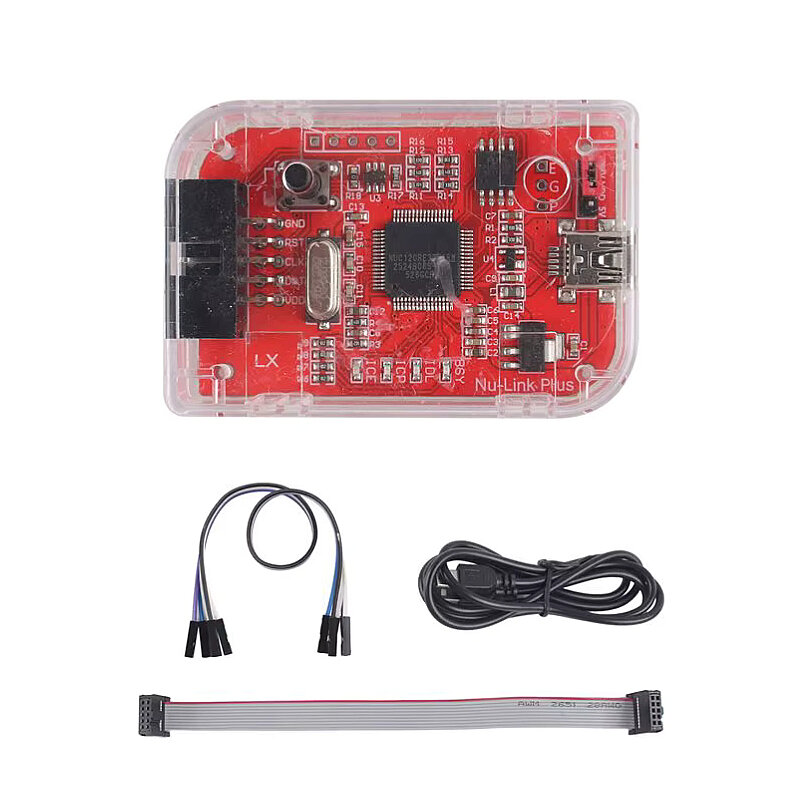

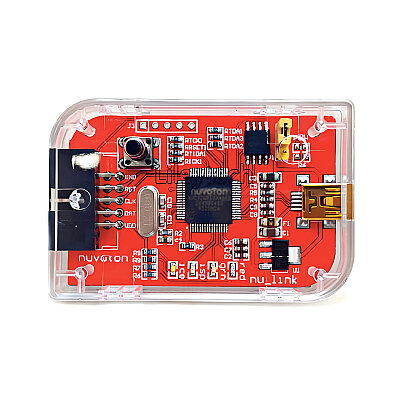

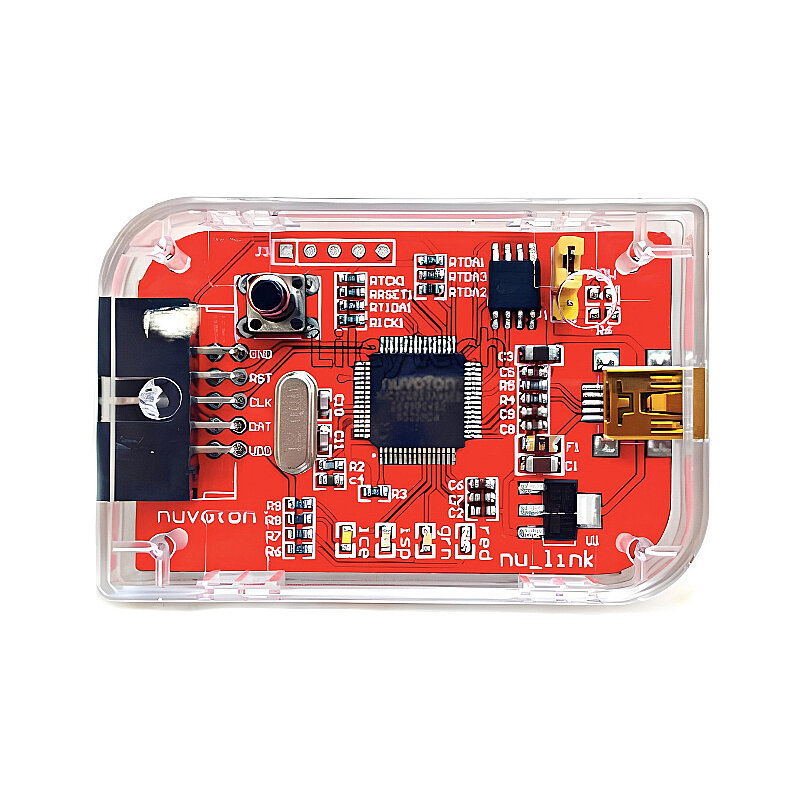

Nu-Link Plus ICP Programmer – Nuvoton Compatible

Nu-Link Plus ICP Programmer – Nuvoton Compatible

The Nu-Link Plus ICP Programmer – Nuvoton Compatible is a USB-connected programmer and debugger designed for programming, firmware loading, and debugging Nuvoton microcontrollers. It provides direct access to compatible Nuvoton microcontrollers via the SWD (Serial Wire Debug) interface.

Nu-Link can be used for both real-time debugging during the software development phase and for loading completed firmware files onto the target microcontroller.

The device connects to the computer via USB and establishes a connection to the target board using the SWD interface.

Example Usage

Features

• Computer Interface: USB
• USB Standard: USB 2.0 Full-Speed
• Target Communication Interface: SWD (Serial Wire Debug)
• Maximum SWD Speed: Up to 12 Mbps
• ICP Support: Yes
• Online Programming: Yes
• Offline Programming: Yes
• Program Debug Support: Yes
• Firmware Loading: Yes
• Flash Memory Read/Write: Supported
• Memory Read/Write: Supported
• Register Monitoring: Supported
• Breakpoint Support: Yes
• Step Debug / Step-by-Step Execution: Supported
• Status Indicator: LED
• Offline Programming Button: Yes
• Standard Nu-Link SWD I/O Level: 5V
• Supported Microcontrollers

  • Nuvoton NuMicro series
  • N76E003
  • N76E616
  • N76E885
  • MS51 series
