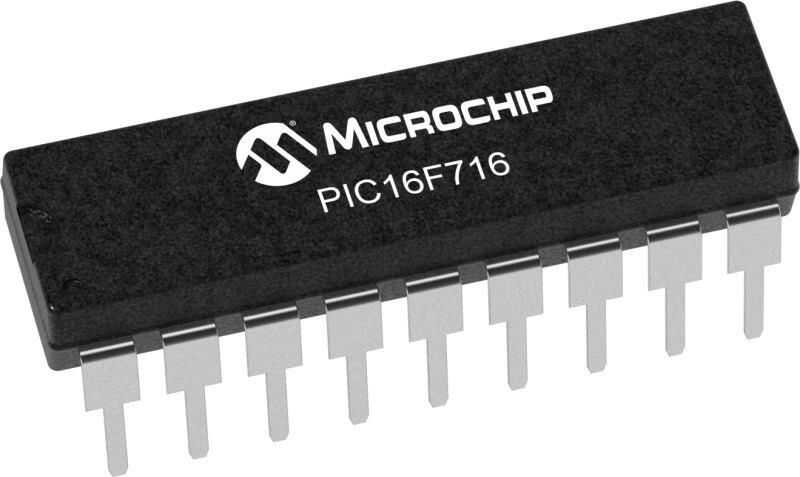

PIC16F716-I/P DIP-18 20MHz Microcontroller

This is powerful (200 nanoseconds command execution) yet easy to program ( only 35 single-word commands) The CMOS Flash-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 18-pin package and is upwardly compatible with PIC16C5X and PIC12FXXX devices. The PIC16F716 is a 4-channel 8-bit Analog-to-Digital (A/D) converter with 2 additional timers and suitable for automotive, industrial, appliance and consumer applications.

Technical Specifications

Product Code	PIC16F716
Program Memory Type	Flash
Program Memory Size	3.5 kB
Bus Width	8-Bit
Max Clock Frequency	20 MHz
Data RAM Size	128B
I/O Count	13
Number of Timers	2
Operating Voltage Range (V)	2 - 5.5V
Number of Pins	18

PIC16F716 Datasheet
