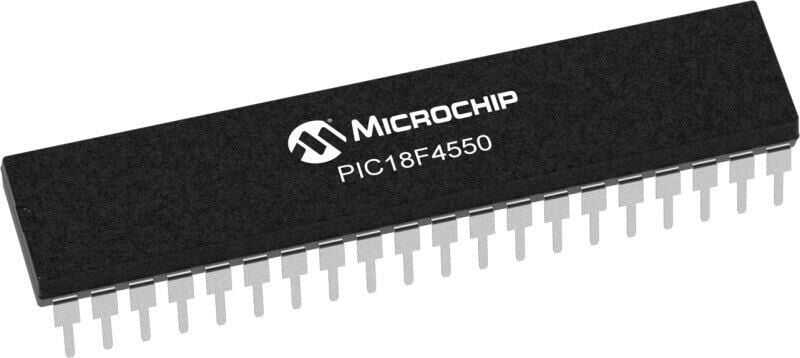

PIC18LF4550-I/P DIP-40 48MHz Microcontroller

Low power (nanoWatt) leveraging the availability of three serial ports and ideal for connectivity applications: FS-USB(12Mbit/s), I²C™ and SPI™ (up to 10 Mbit/s) and an asynchronous (LIN compatible) serial port (EUSART). A large amount of RAM memory for buffering and Advanced Flash program memory make it ideal for embedded control and monitoring applications that require periodic connection to a PC via USB (legacy free) for data upload/download and/or firmware updates.

Technical Specifications

Product Code	PIC18LF4550
Program Memory Type	Flash
Program Memory Size	32kB
Bus Width	8-Bit
Max Clock Frequency	48 MHz
Data RAM Size	2 kB
I/O Count	35
Number of Timers	4
Operating Voltage Range (V)	2 - 5.5V
Number of Pins	40

PIC18LF4550 Datasheet
