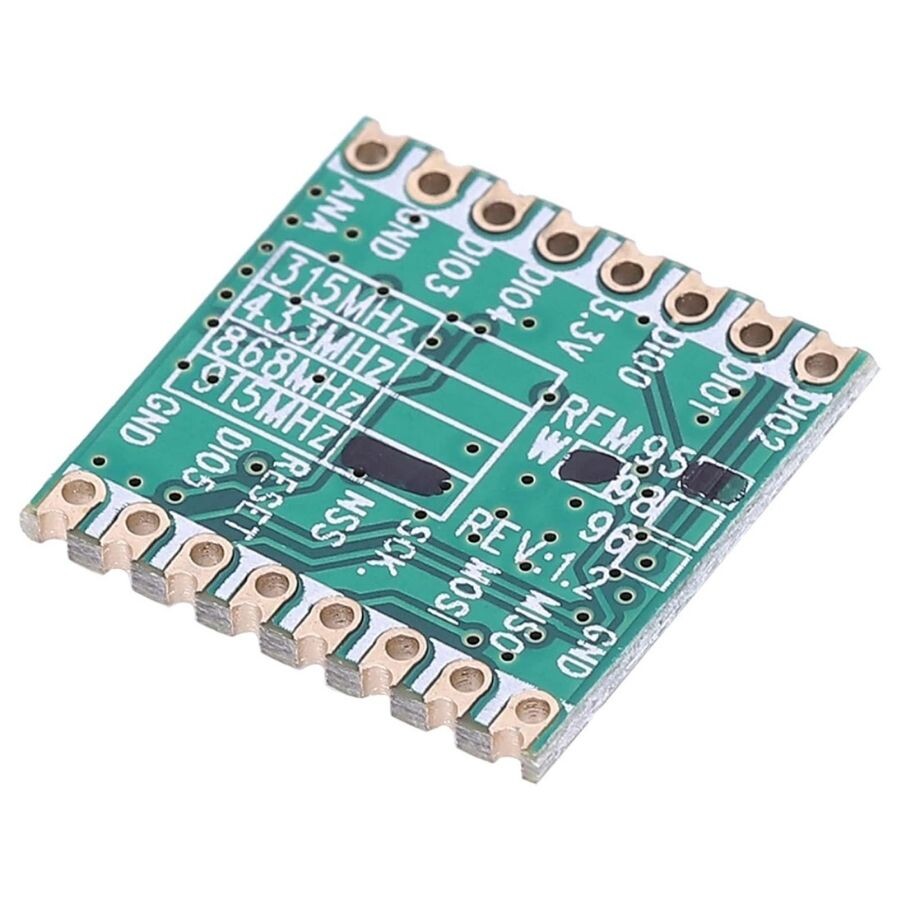

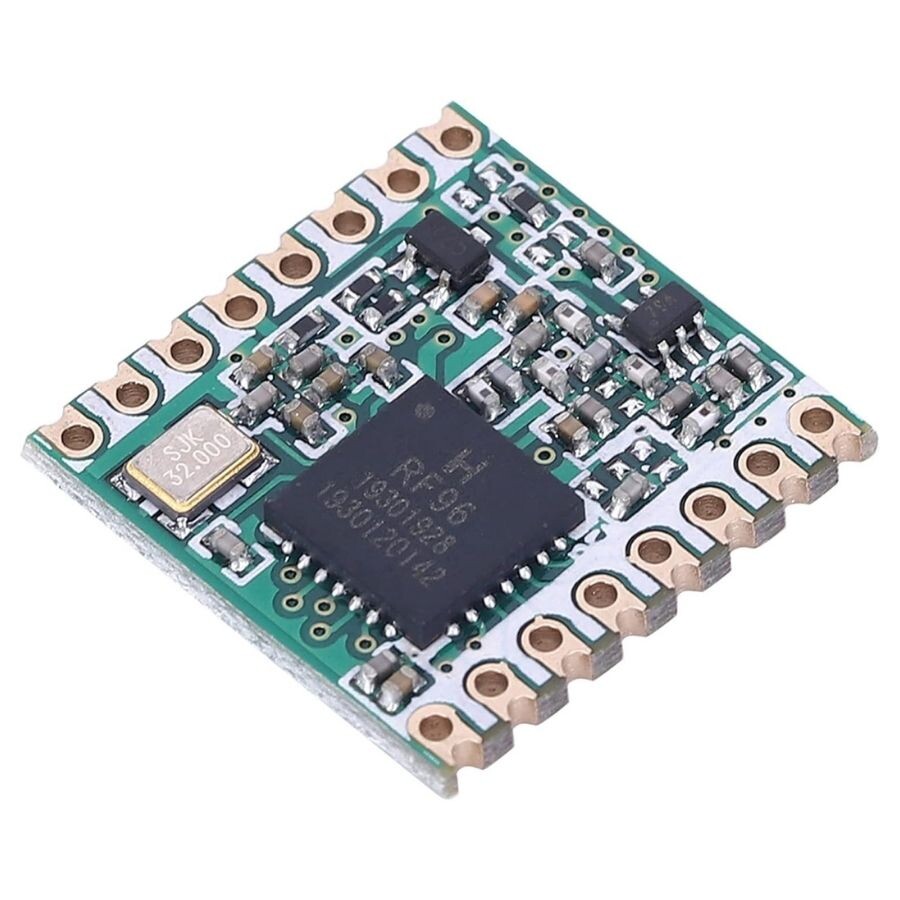

RF96 868MHz Transceiver Module
The RFM95/96/97/98 transceivers feature a LoRaTM long-range modem, providing long-range spread-spectrum communication, high interference immunity, and minimizing current consumption.
Using Hope RF’s patented LoRaTM modulation technique, the RFM95/96/97/98 (W) can achieve sensitivity above -148dBm using a low-cost crystal and bill of materials.
The high sensitivity combined with the integrated +20dBm power amplifier provides industry-leading link budget, making it ideal for any application requiring range or robustness.
LoRaTM is a powerful alternative to traditional modulation techniques. It offers significant advantages in both blocking and selectivity, solving the traditional design tradeoff between range, interference immunity, and power consumption.
Features:
- LoRaTM Modem.
- Maximum link budget 168 dB.
- +20 dBm - 100 mW fixed RF output vs. V supply.
- +14 dBm high efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bulletproof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
- Low RX current 10.3 mA, 200 nA logging.
- Fully integrated synthesizer with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM, and OOK modulation.
- Built-in bit synchronizer for clock recovery.
- Pre-heuristic detection.
- 127 dB Dynamic Range RSSI.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine with CRC up to 256 bytes.
- Built-in temperature sensor and low battery indicator.

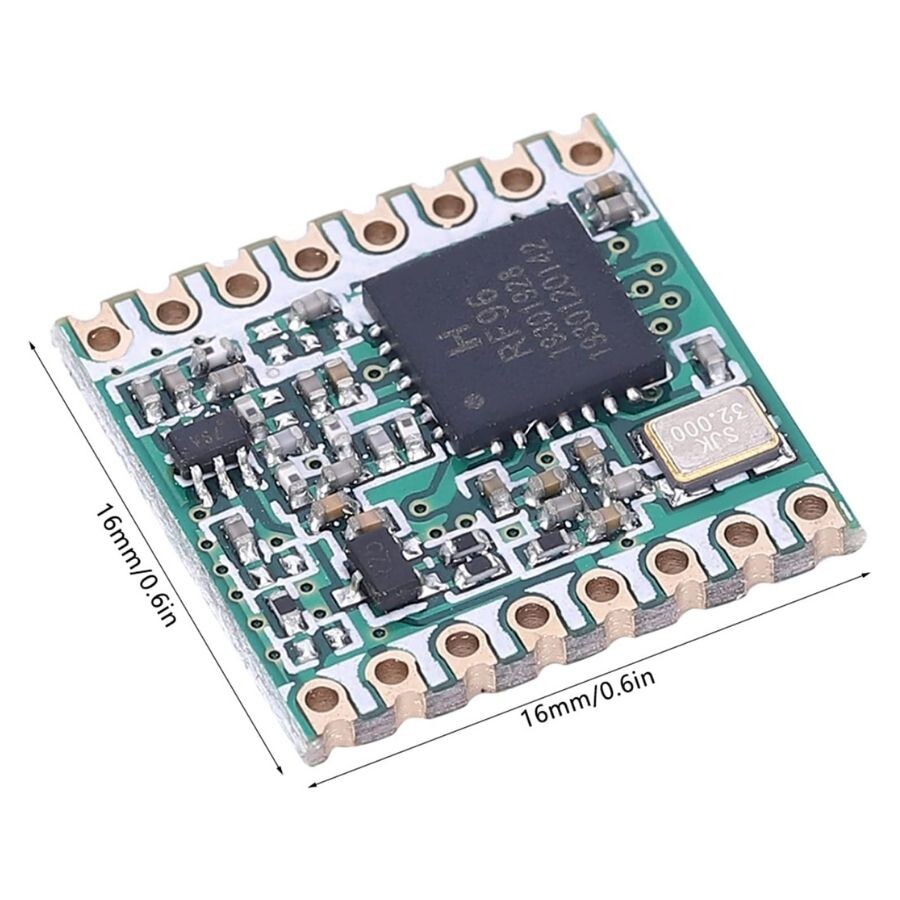

- Module Size: 16 * 16 mm
Application Areas
- Automatic Meter Reading
- Home and Building Automation
- Wireless Alarm and Security Systems
- Industrial Monitoring and Control
- Long-Range Irrigation Systems
