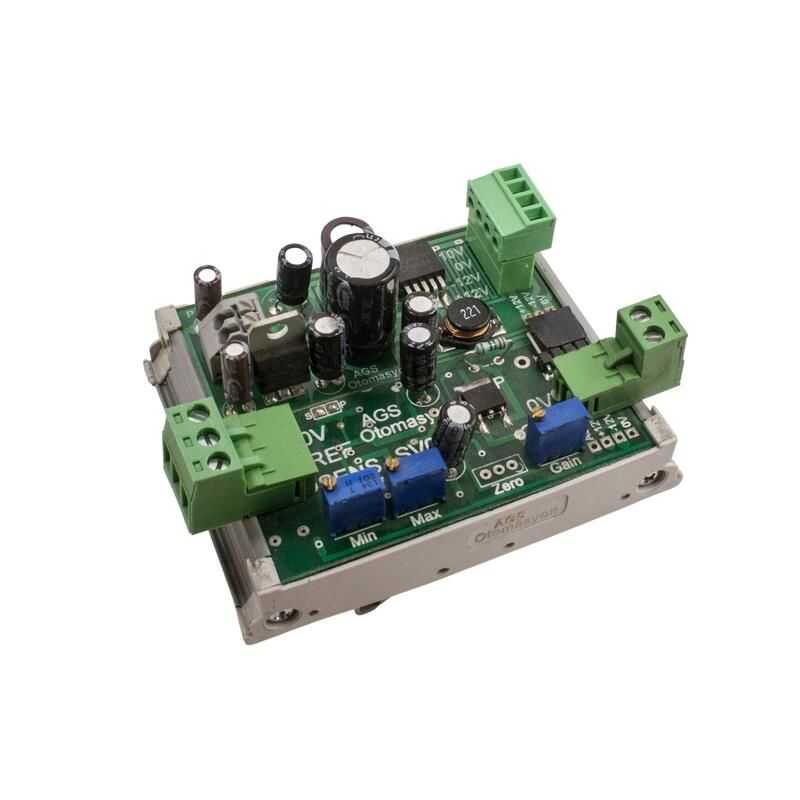

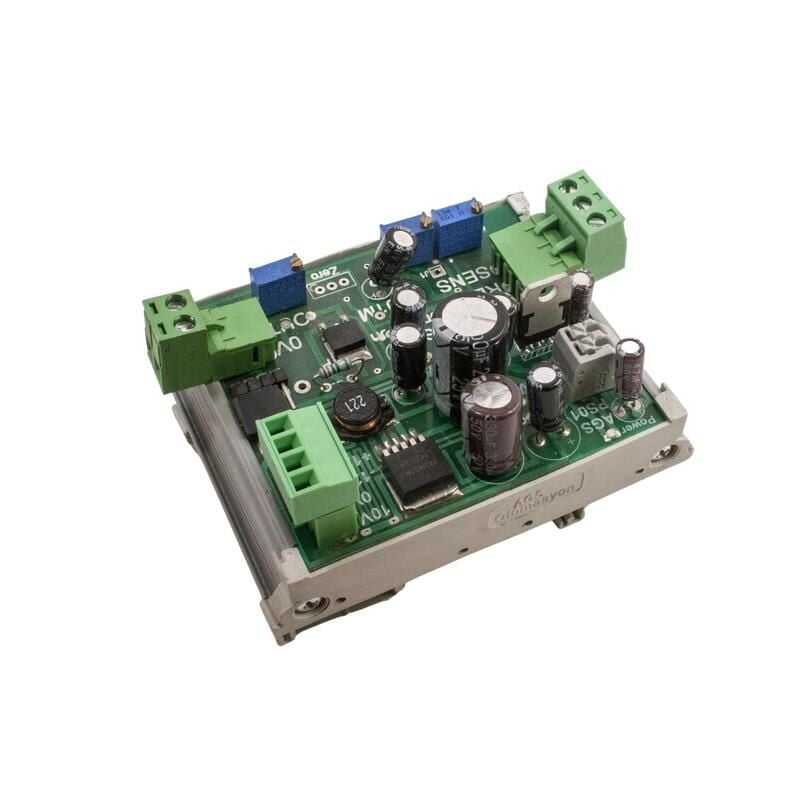

SV-01 Single Channel Servo Valve Drive - Rail Mounted

SV-01 Single Channel Servo Valve Drive - Rail Mounted

Features:

• High Sensitivity
• Compatible with all brands of servo valves
• Ideal for Parison
• Possibility to get feedback and calibrate from any sensor, whether a ruler or pressure sensor
• 12V & 35V Wide input voltage range
• Voltage output to the outside (+10V,-12V,+12V)
• Ability to control double-layer valves with additional card
• Can read LVDT with additional card
• Analog Inputs -10 to +10V

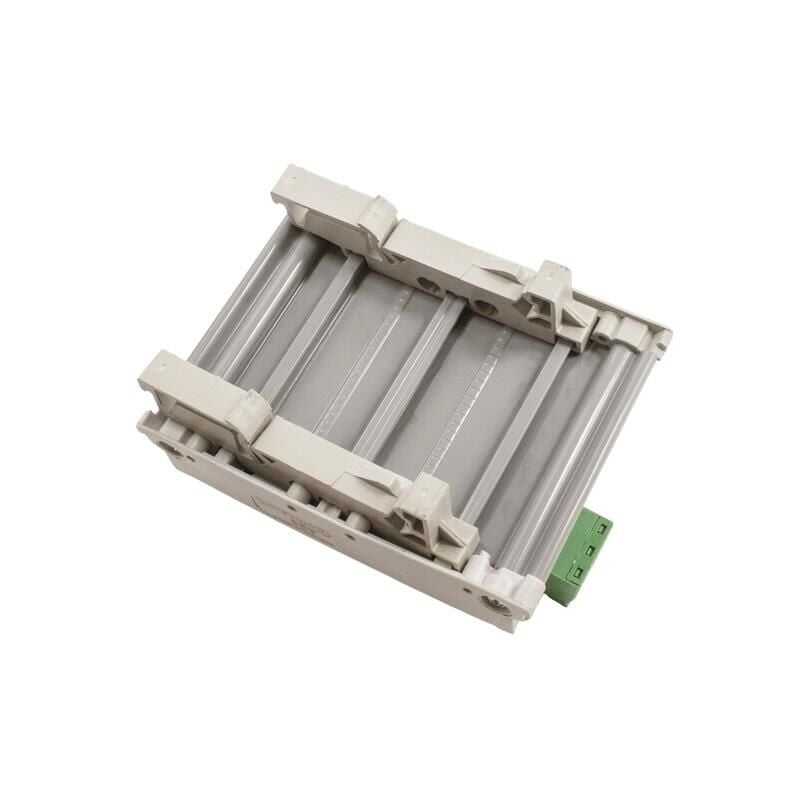

• W automatic rail mounting, Convenient design, advantage in assembly labor
• Easily adjustable Max and Min Trimpots
• Dimensions: Length: 88mm, Width: 62mm, Depth: 45mm

Electrical Specifications:

• input current range : 7-8mA
• Analog Inputs: -10V, +10V
• Supply Voltage Range: 12V-35V
• Output Voltage Range: -10V, +10V
• Max. Current: 3A
• Max. Current Overflow (10ms): 50A

Connection Diagram:
