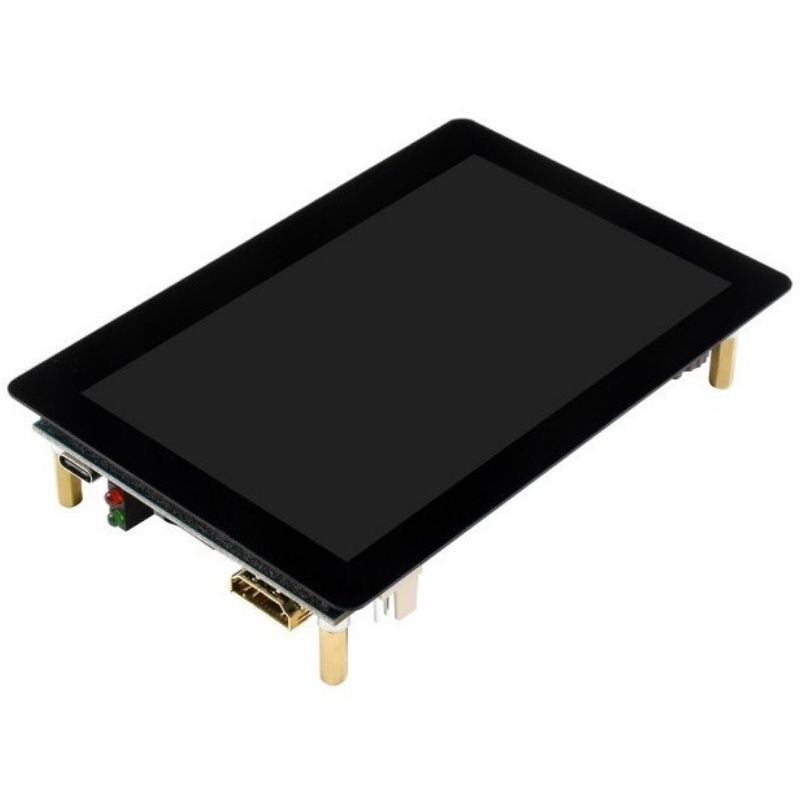

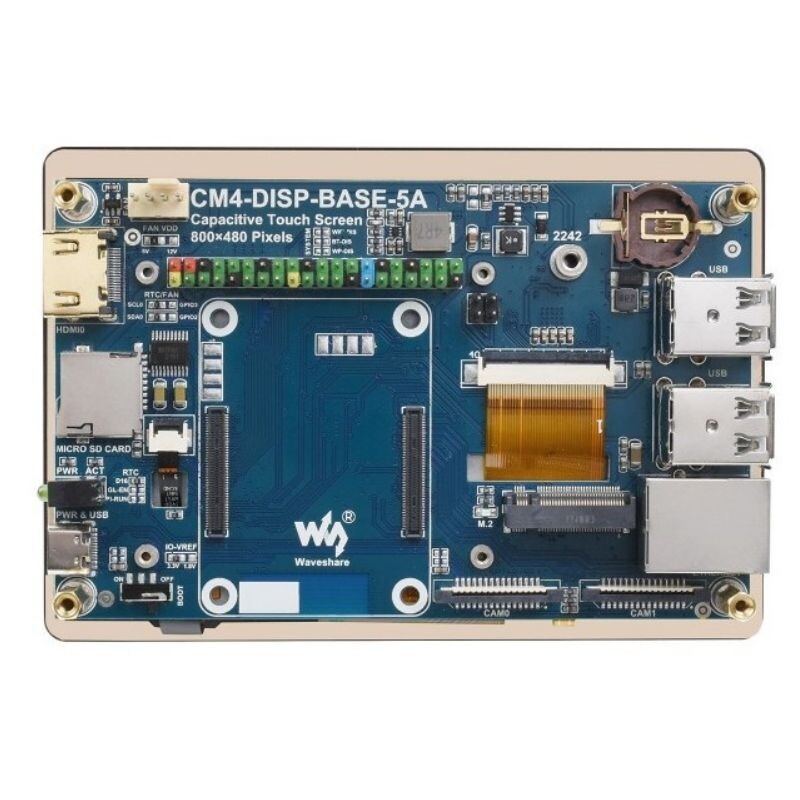

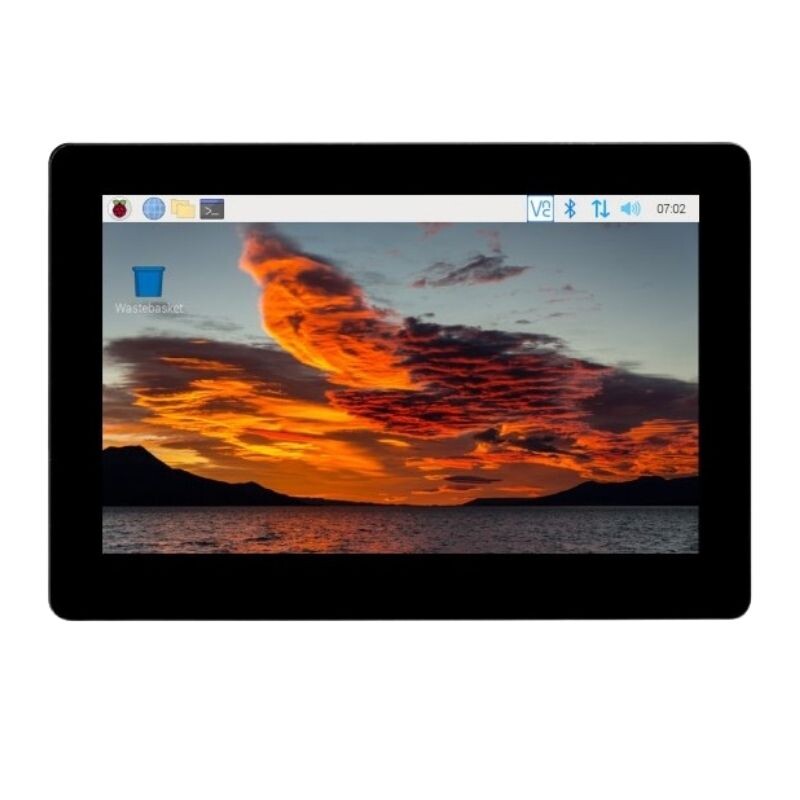

WaveShare 5" 800x480 Touch Screen - Raspberry Pi CM4 PoE Ethernet Extender. PoE pin Gigabit Ethernet port supports 4K output, onboard four-way USB2.0, 5 inch touch screen, etc. The all-in-one kit is convenient for users.

Important Note:

1. Do not plug or unplug any devices except USB and HDMI while the motherboard is working.
2. If the fan needs to be replaced, please confirm the fan voltage and then turn on the power.
3. The USB SLAVE interface is used to burn the image and cannot be used as an OTG interface.
4. In normal use, it is necessary to provide at least 5V 2.5A power supply for CM4. Otherwise, there may be problems such as automatic shutdown, frequency reduction, etc.
5. Onboard default 4-way USB 2.0 interface.
6. Support POE pins, additional POE HAT is required if POE function is required. 7. You need to add a driver for this screen to work.
