Name: WaveShare ATMEL USB AVRISP XPII AVR Programmer
Brand: WaveShare
SKU: ELK.PRK.01.000025
Price: 2322.00 TRY
Availability: InStock

ATMEL USB AVRISP XPII AVR Programmer

Waveshare ATMEL USB AVRISP

Supports all AVR devices and select 51 Devices with ISP or PDI interface
Programs both Flash and EEPROM
Supports Fuses and Lock Bit Programming
Based on AT AVRISP mkII firmware
Can Be Upgraded to Support Future Devices
Adjustable ISP programming speed up to 8M frequency
USB 2.0 compatible (full speed, 12Mbps)

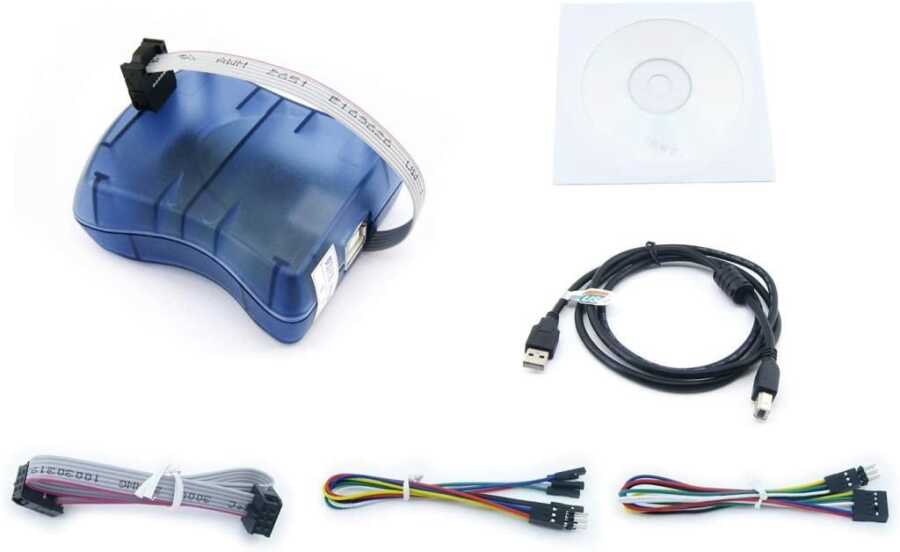

3 optional cables to target panel
USB bus powered, no external power supply required

AVRISP mkII compatible

- Compatible with AT AVR ISP, easy to use, stable and reliable

Based on AT AVRISP mkII firmware

- AVRStudio Designated as AVRISP mkII in , high speed programming

Upgradable firmware

- Firmware can be upgraded to Support Future Devices

- Auto Upgrade

Supported software

- AVR Studio 4/5/6 or WINAVR (GCC) is used as front-end software

- Supports program files created by IAR, ICCAVR, CVAVR

Device Support

- USB AVRISP XPII, ISP and supports all AVR devices with PDI Interface. Support for new devices will be added with new versions of AVR Studio.

- Supports AT86RF401 / AT89S51 / AT89S52
