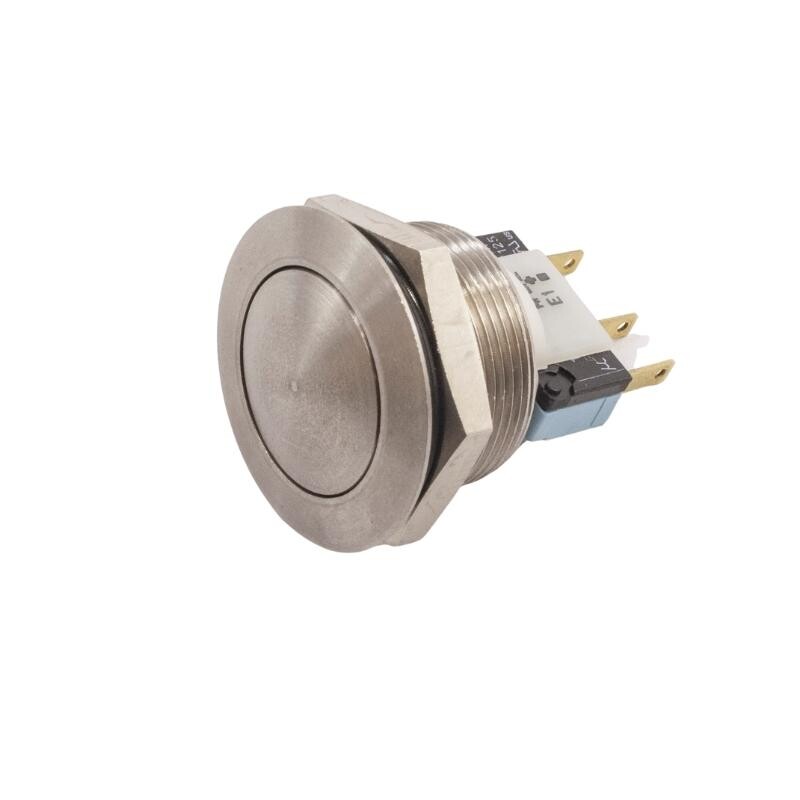

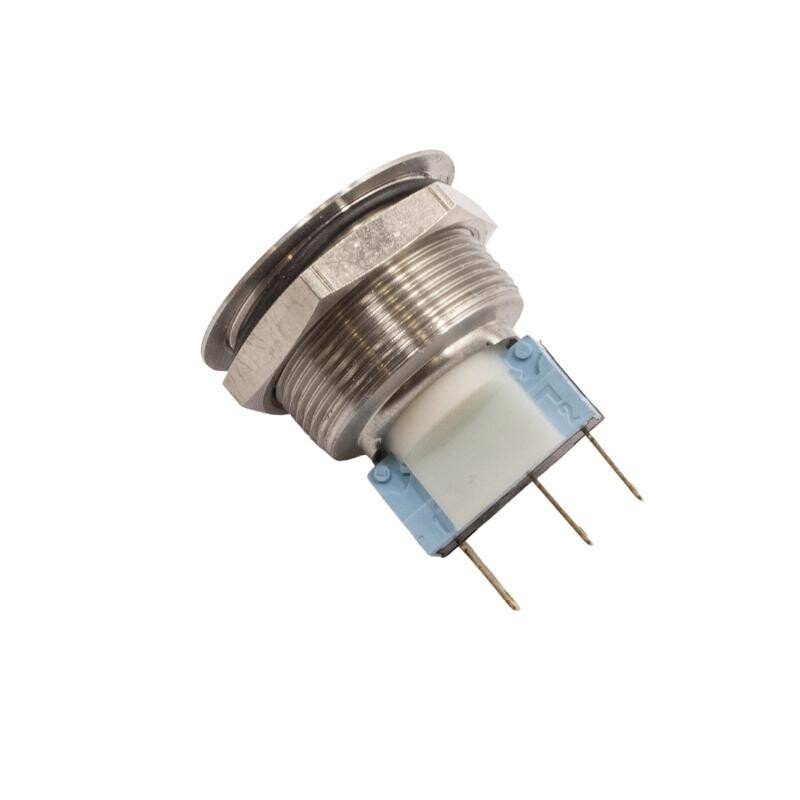

24mm Flat Momentary Metal Button - AV24LB404

24mm metal button is a product that you can use in various industrial applications, electronic projects and mass production projects. The product is shipped with a sealing gasket.

24mm Metal Button Types

24mm Metal Button Types are divided into two, Spring and Key, depending on their usage. Spring buttons allow voltage to pass as long as they are held down. Models with a switch transmit energy when pressed for the first time, and turn off when pressed again.

The factors to consider when choosing a product are as follows;

Head Type: Protruding or Straight
Light: With or without light
Light Type: Power With Icon or Not
Product Type: With Switch or Spring

These details required when choosing a product are in the product image and It is clearly stated in the name. Please pay attention to the name and image before purchasing.

Technical Specifications:

Operation: Momentary
Mounting Diameter: 24mm
Protection Class: IP65
Voltage: 12-24V
Current: 5A
Switch Contacts: 1NO and 1NC
Operation Temperature: -30 °C ~ 70 °C

Datasheet
