50m Laser Distance Measurement Sensor

50m Laser Distance Measurement Sensor

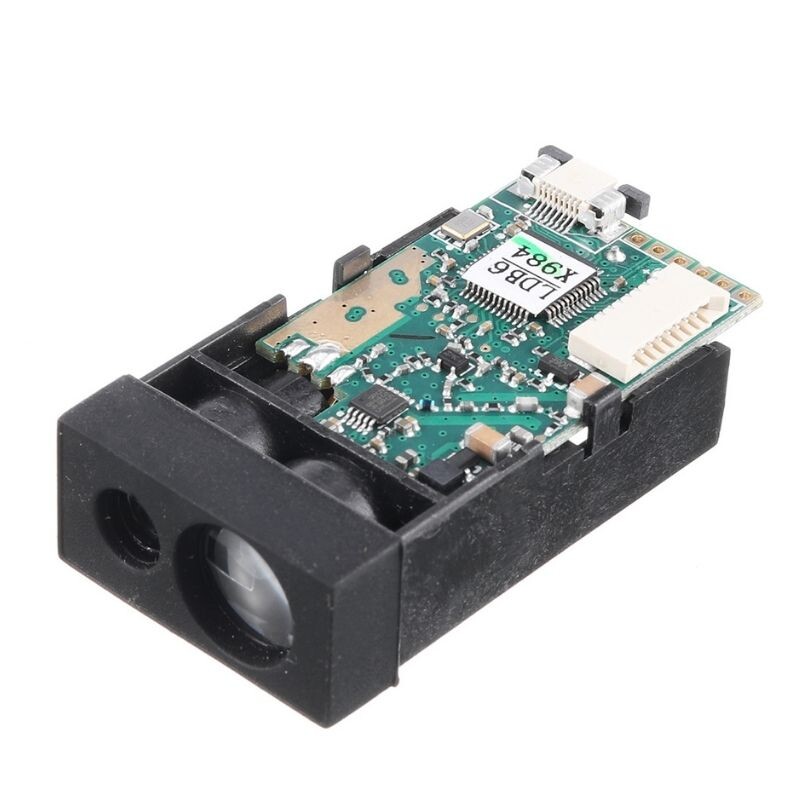

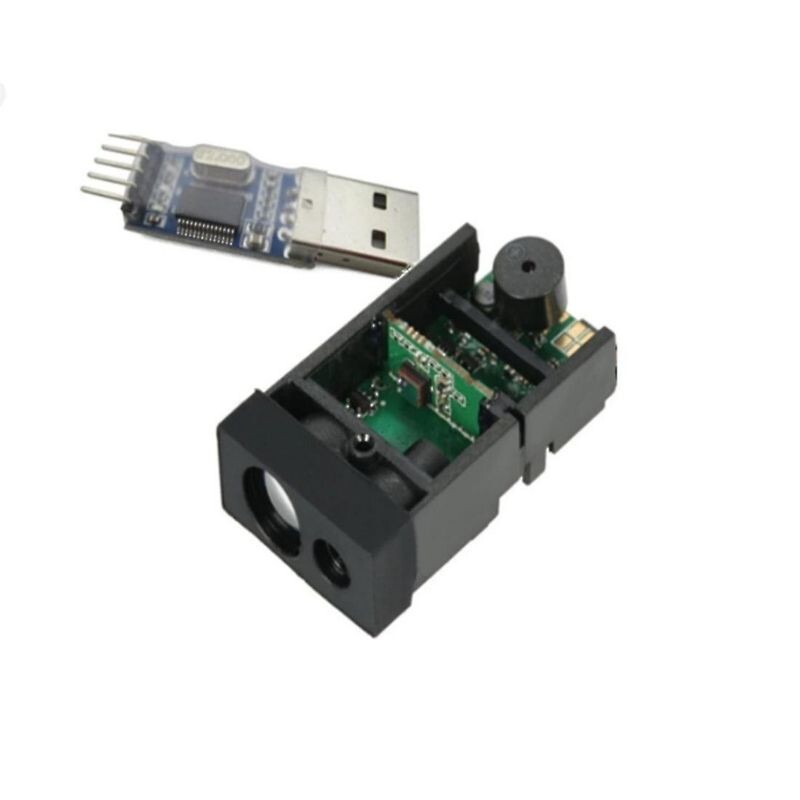

50m Laser Distance Measurement Sensor is a laser distance measurement sensor with a range of up to 50m and a sensitivity of 1mm. This module has a wavelength of 635nm. Communication with the module takes place via the UART interface with 19200/8/1/n transmission parameters.

Uart Communication Instructions

• 'O' - Start Scan
• 'C' - Scan Complete
• 'D' - Taking the Measurement
• 'S' - Module Temperature

Specifications

• Operating Voltage: 3V
• Laser Wavelength: 635nm
• Distance: 0.02 - 50m
• Measurement Speed: 0.3 -3s
• Accuracy : ± 1mm
• Operating Temperature Range: -20 ~ 60°C

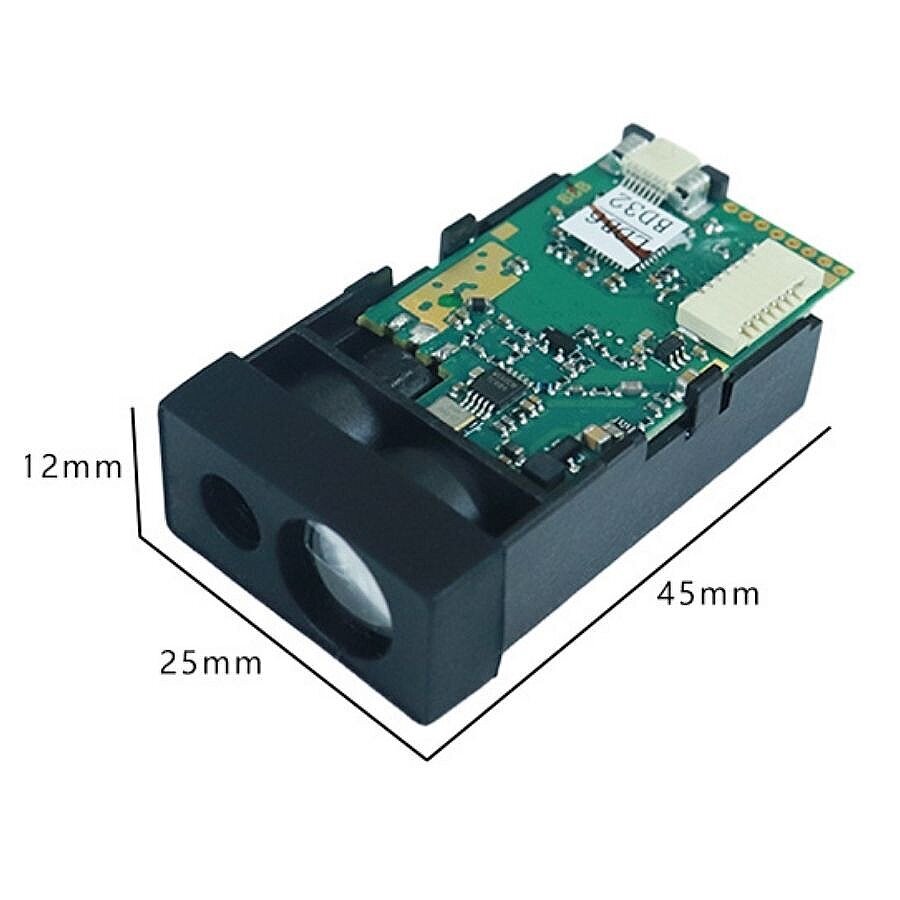

• Dimension: 48x25x12mm

User Manual
