74HC02 SMD Integrated
4,90
TL
+
VAT
5,87
TL
Notify Me When It Arrives
4,90
TL
+
VAT
5,87
TL
Add to Favorite
RecommendCommentAlarm Price

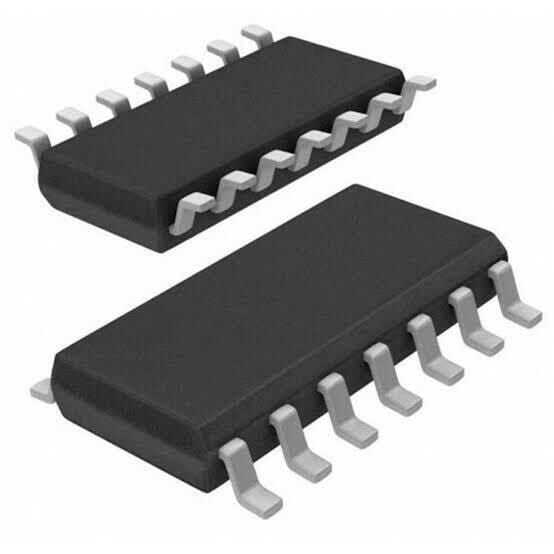

74HC02 SMD Integrated
74HC02 NOR gates use advanced silicon gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All ports feature buffered outputs providing high noise immunity and the ability to drive a 10 LS-TTL load. The 74HC logic family is functionally pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
Uses
- Education
- Toys
- Musical Instruments
- Medical Health and Fitness
- Network Infrastructure
- Electronic Point of Sale
- Test and Measurement
- Factory Automation and Control
- Building automation
- RS Latch
| Series | 74HC |
| Logic Function | NOR |
| Number of Doors | 4 |
| Number of Input Lines | 8 |
| Number of Output Lines | 4 |
| Number of Pins | 14 |
| Package Type | SMD |
