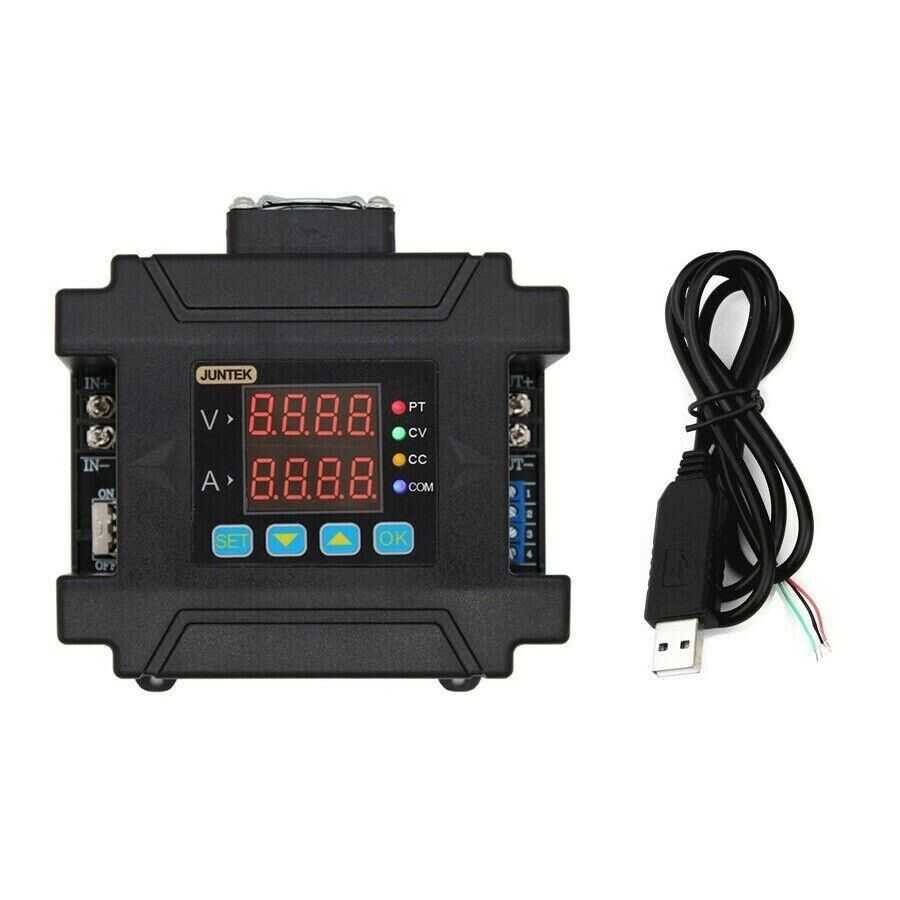

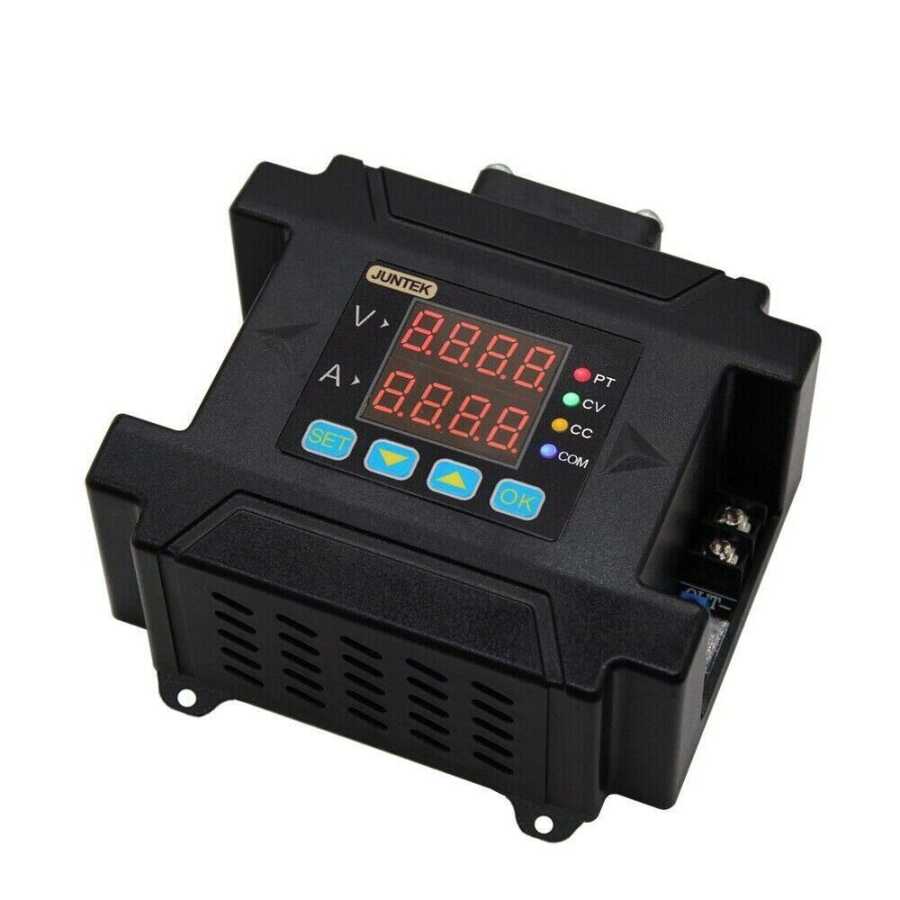

DPM8624 60V 24A Programmable DC-DC Power Supply

DPM8600 series programmable DC power supply can digitally display output voltage, current, temperature and other parameters. It has two different output states: constant voltage and constant current.

Input DC voltage is 10-75V with power supply or battery, you can use them with high precision digital You can combine it in an adjustable DC power supply or charger.

The output voltage is 0-60V digitally adjustable continuously, the minimum voltage resolution is 10mV and the ripple is less than 50mVpp. The output current is 0-24A (minimum resolution 1mA), divided into 2 different models, the current is digital and continuously adjustable.

Based on the switching power supply technology of BUCK structure Based on the data, the operating frequency is up to 150KHz, and it can still work stably with a minimum differential voltage of 0.5V.

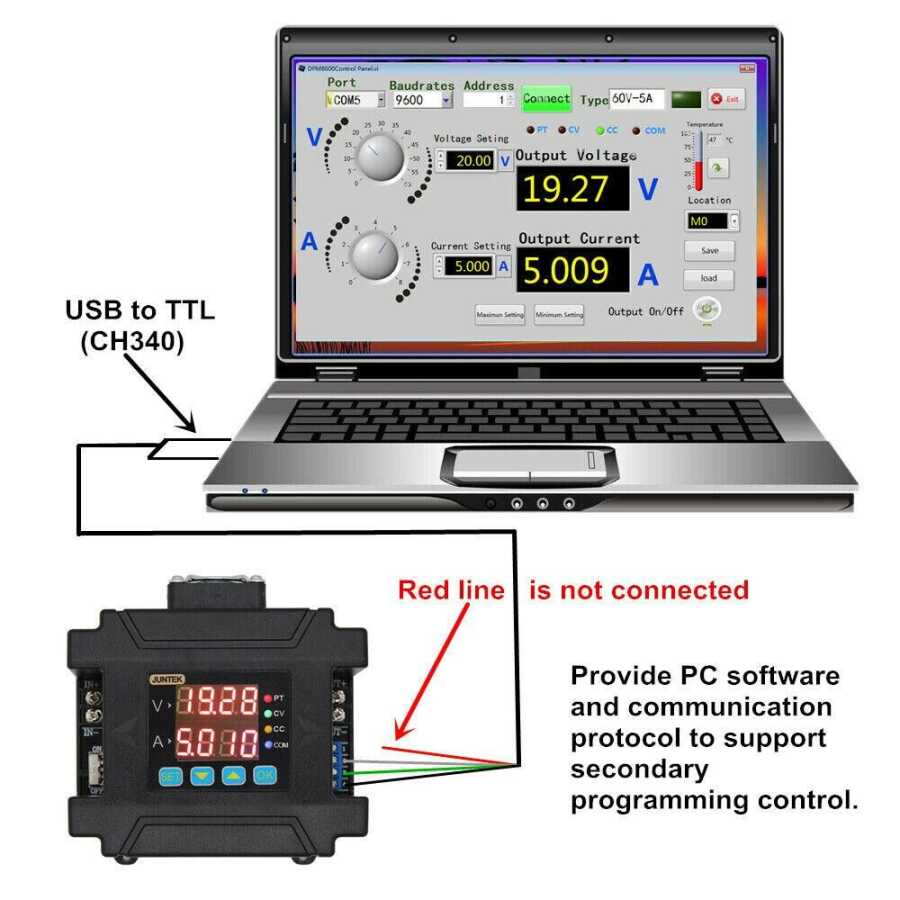

Supports standard "USB to TTL", TTL serial communication , It is convenient to use PC software to control the power supply. The communication protocol is divided into a simple communication protocol and a MODBUS-RTU communication protocol, which can be freely selected in the machine menu. Via the TTL interface, it is also possible to conveniently change all settings from a PC using free software.

It can be used as an ammeter, smart meter, LED driver, voltage regulator or industrial controller for solar energy systems.

Technical Specifications

Input Voltage range: 10-75V
Output Voltage range: 0.01-60V
Output Current range: 0.01-24A
Output power range: 0-1440W
Output Voltage adjustment resolution: 10mV
Output current setting resolution: 10mA
Output ripple: <50mVpp
Conversion Efficiency: 92% (Input 40V, Output 30V, Current 7A)
Voltage and current display accuracy: 10mV, 10mA
Voltage error: %2+1 digits
Current error: %5+2 digits
Response duration: <50ms
Operating Frequency: 150KHz
Operating Temperature: -10°C to +45°C
TTLserial communication interface

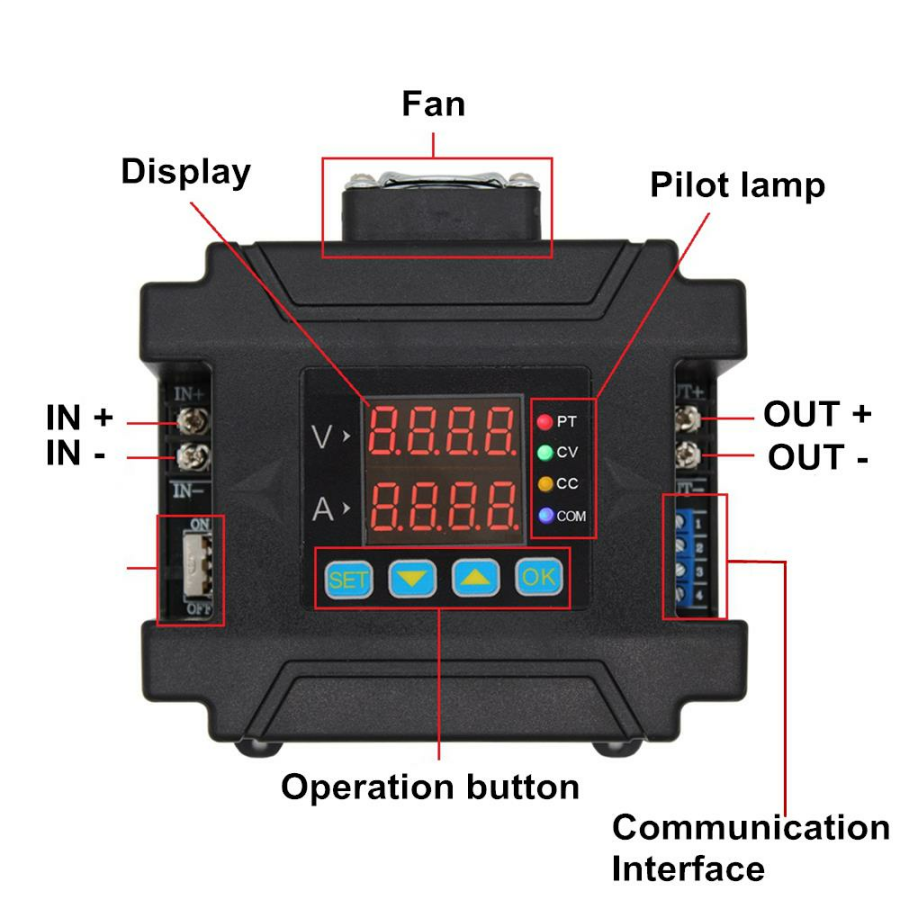

Control Method: Digital Control + LED Display
Weight: 420g

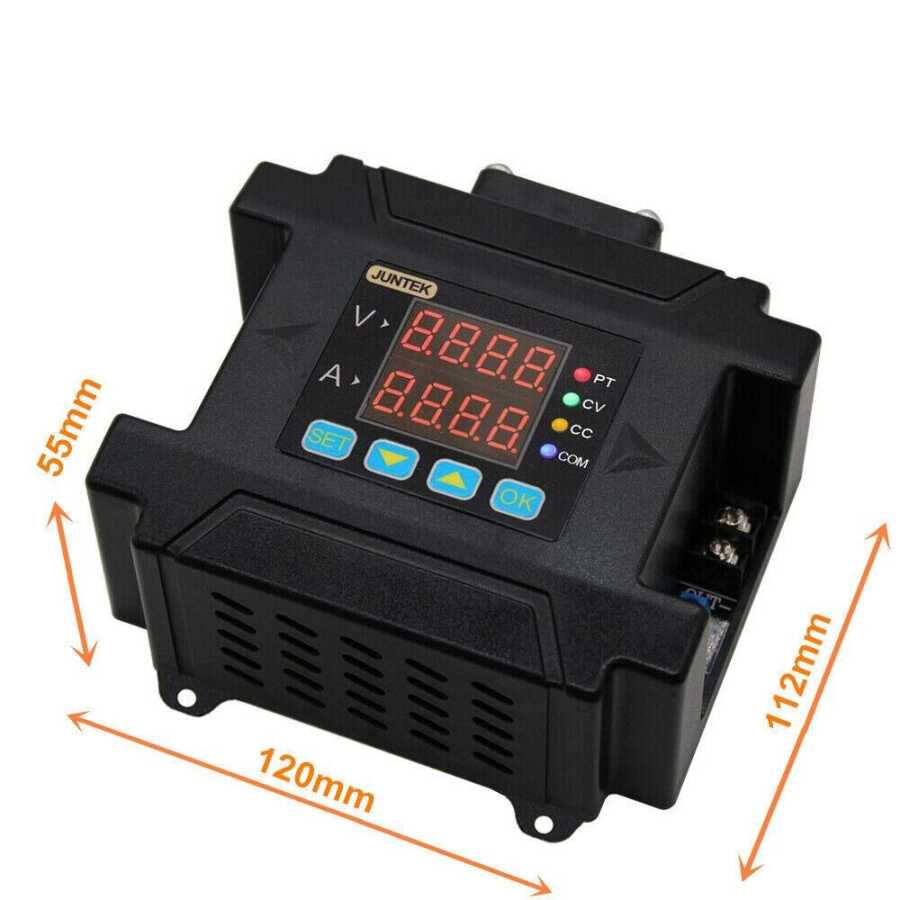

Dimensions: 150 x 120 x 59 mm
Package Weight: 560g

Package Size: 210 x 150 x 75 mm
