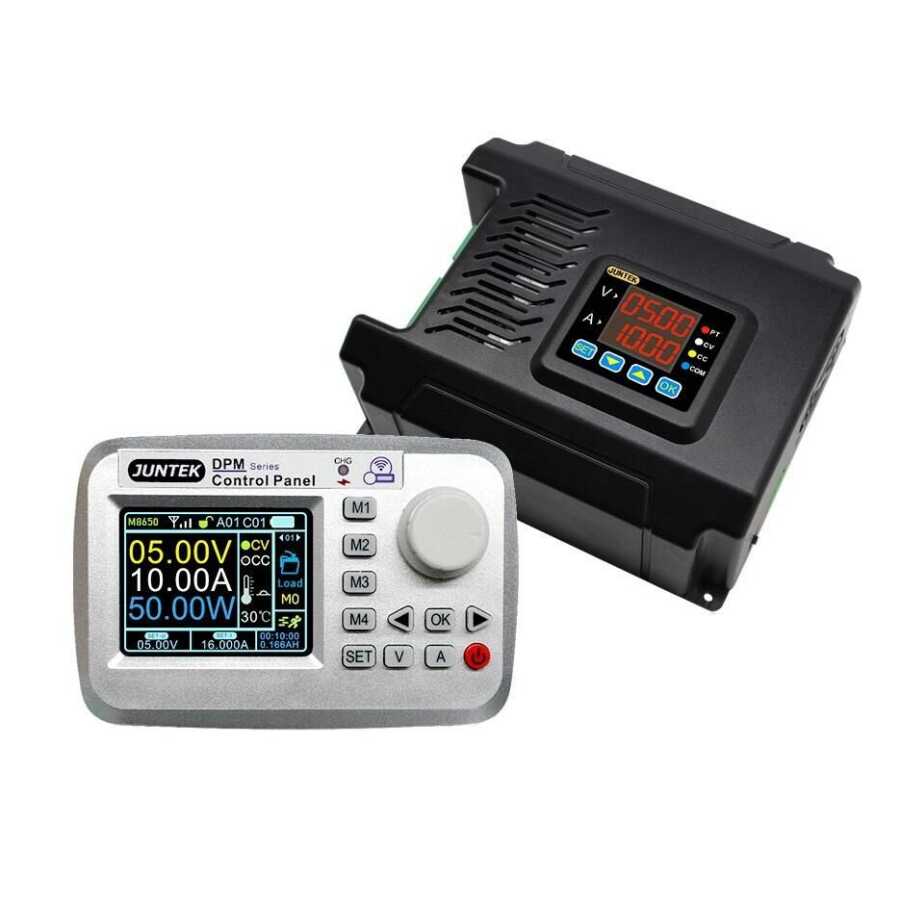

DPM8650-RF 60V 50A Programmable DC-DC Power Supply - RF Controlled

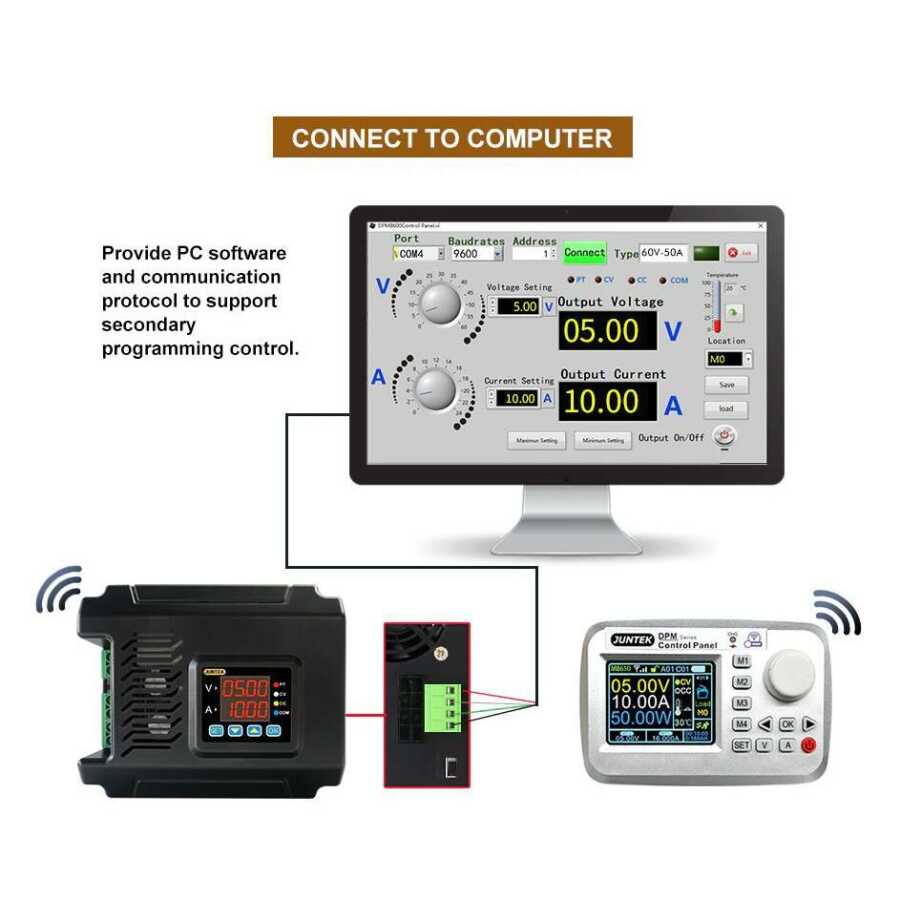

DPM 8600 series power supplies are high output, very compact and optimally designed programmable power supplies are the sources. Additionally, it is equipped with an RS485 communication interface that provides serial communication protocol. It can also be used with the Modbus-RTU communication protocol and supports further development of its own protocols. It even provides a multi-purpose solution for design and testing needs.

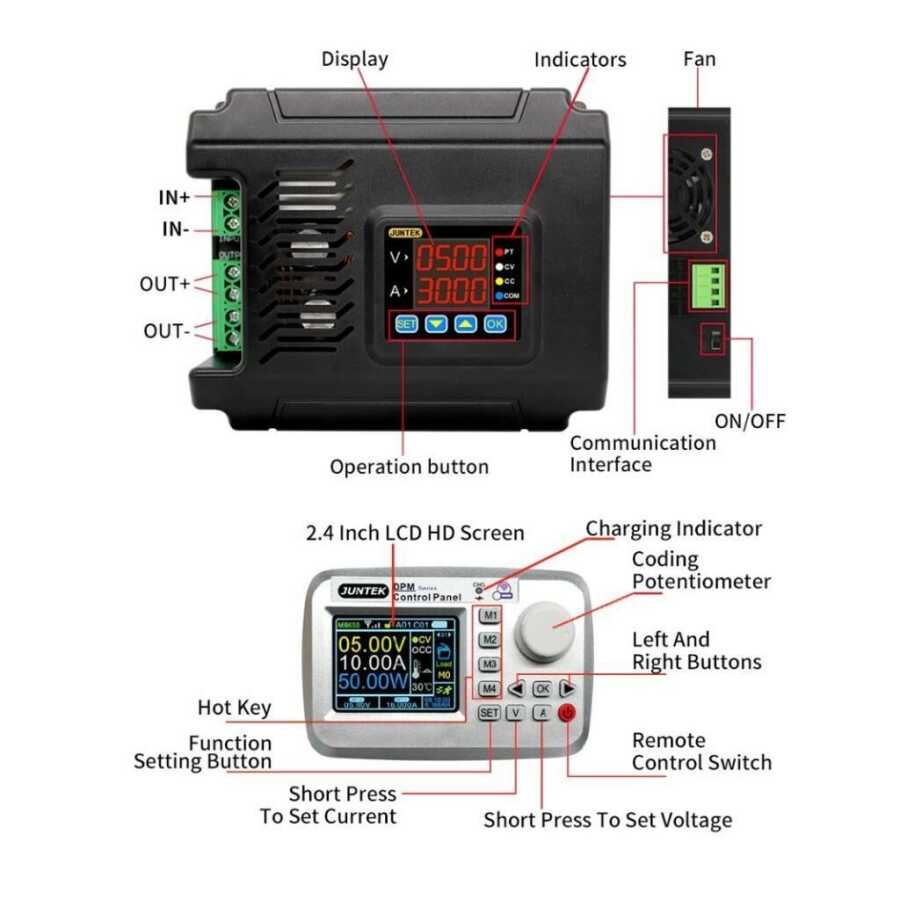

The DPM8650-RF ships with a wireless remote control. This remote control has a 2.4” LCD screen. It has many display values, simple operation, a built-in rechargeable lithium battery and a range of up to 10 meters. Its special feature is that several power supplies can be controlled simultaneously. This power supply can be used in a variety of applications. For example, it can be used as an ammeter, smart meter, LED driver, voltage regulator for solar energy systems or industrial control.

Technical Specifications

Input Voltage range: 10-75V
Output Voltage range: 0-60V
Output Current range: 0-50A
Output power range: 0-3000W
Output Voltage adjustment resolution: 10mV
Output current setting resolution: 10mA
Output ripple: <50mVpp
Conversion Efficiency: 92% (Input 40V, Output 30V, Current 7A)
Voltage and current display accuracy: 10mV, 10mA
Voltage error: %2+1 digits
Current error: %5+2 digits
Response time: < 50ms
Operating Frequency: 150KHz
Operating Temperature: -10°C to +45°C
TTL serial communication interface
Control Method: Digital Control + LED Display
Weight: 940g

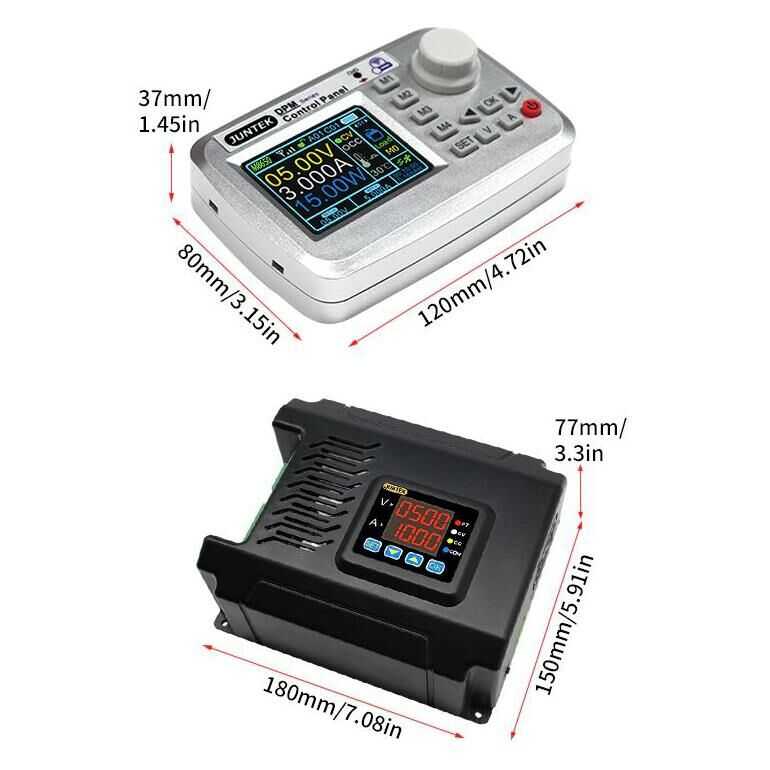

Dimensions: 180 x 150 x 77 mm

Datasheet
