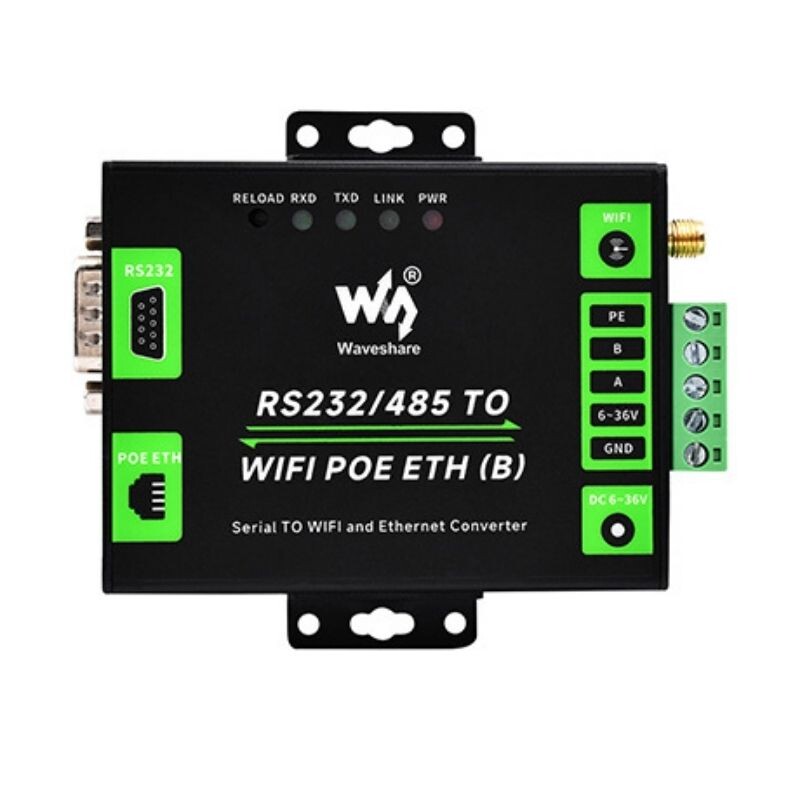

Industrial RS232/RS485 to WiFi and Ethernet Converter Module - PoE Ethernet Port
Industrial RS232/RS485 to WiFi and Ethernet Converter Module - PoE Ethernet Port
Industrial RS232/RS485 to WiFi and Ethernet Converter Module - PoE Ethernet Port is an RS232/485 device data collector / IoT gateway designed for Industrial environment. Serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client etc. It combines many functions in one, including: With RS232, RS485, WIFI and Ethernet interfaces, the module can realize functions such as serial port, serial port to WIFI. Ethernet to Ethernet, Ethernet to WIFI, etc. Built-in multiple power supply interfaces support 6~36V wide range power supply and optional PoE function. Industrial grade metal case design supports wall and rail mount installations, is small in size and easy to install. Suitable for applications such as data collection, IoT gateway, safety and security IoT and smart device monitoring.
Specifications
- Supply Voltage: 6~ 36VDC / PoE port
- Ethernet: RJ45
- Wifi: 802.11b/g/n
- Uart:
- RS232 (ESD/EFT)
- RS485 (ESD/EFT/Surge Protection)
- Frequency: 2.412 ~ 2.484GHz
- Wireless Network: Station / AP / AP+Station Mode
- Security: WPA-PSK / WPA2-PSK
- Encryption Type: TKIP / AES
- Transmission Power;
- 802.11b: +19dBm (Max.@11Mbps)
- 802.11 g: +18dBm (Max.@54Mbps)
- 802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
- Receiving Sensitivity;
- 802.11b : -89dBm (@11Mbps)
- 802.11g: -81dBm (@54Mbps)
- 802.11n : -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
- Baudrate: 300~460800bps
- Parity Bit: none, odd, even, mark, space
- Data Bit: 5 ~ 9 bit
- Protocol: TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
- Communication Method: TCP/IP , VCOM
- Operation Modes: Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
- Operating Temperature Range: -40 ~ 85°C
For detailed information and software product guide.
Size
