Industrial USB to 8 Channel TTL UART Converter

Industrial USB to 8 Channel TTL UART Converter

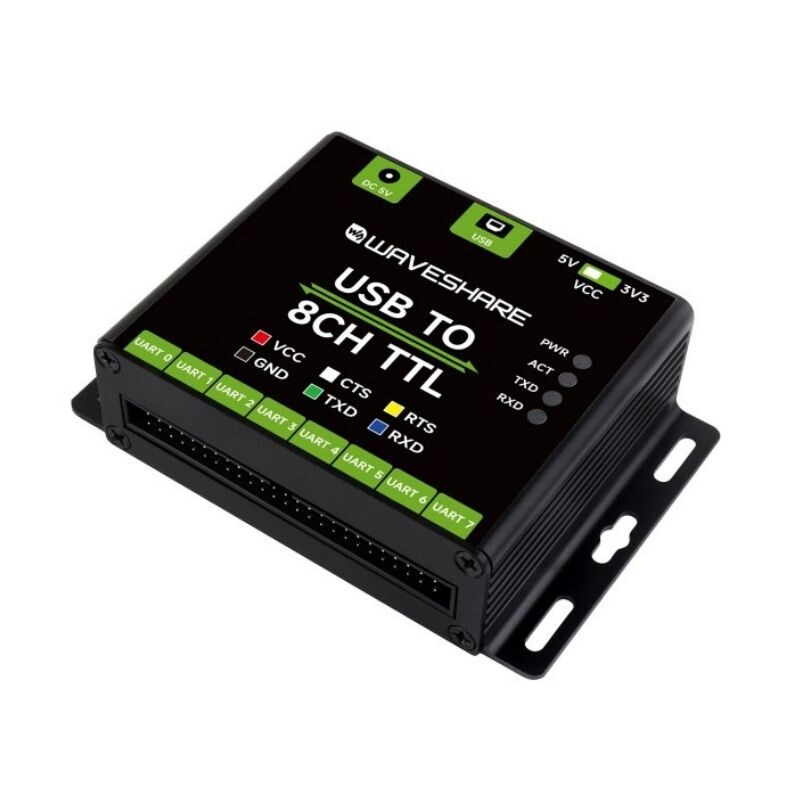

Industrial USB to 8 Channel TTL UART Converter, an industrial UART TO TTL converter with power isolation, aluminum alloy case, original CH348L chip and internal protection circuits such as self-recovery fuse and TVS. This converter is easier to operate due to the delay-free fully automatic transceiver circuit. Featuring fast communication, stability, reliability and safety, this converter is an ideal choice for various industrial control devices and applications with high communication requirements.

For detailed information, please visit  wiki page.

Features

• Extending USB to 8CH TTL (UART) with hardware flow control allows simultaneous and independent communication for each channel.
• SKU: 27076
• Built-in resettable fuse and protection diodes, current/voltage stable outputs provides overcurrent/overvoltage resistance and improves shockproof performance.
• Built-in TVS (Transient Voltage Suppressor) effectively suppresses surge voltage and transient surge voltage in the circuit, is lightning resistant and anti-electrostatic.
• Built-in voltage converter circuit, surge and ESD protection, safe and stable communication.
• Built-in TTL serial 3.3V/5V voltage converter, configure TTL level via switch.
• Aluminum alloy housing with oxidized matte polished surface, CNC process clearance, sturdy and durable, well-processed.
• 4x external LED to indicate power and transceiver status.
