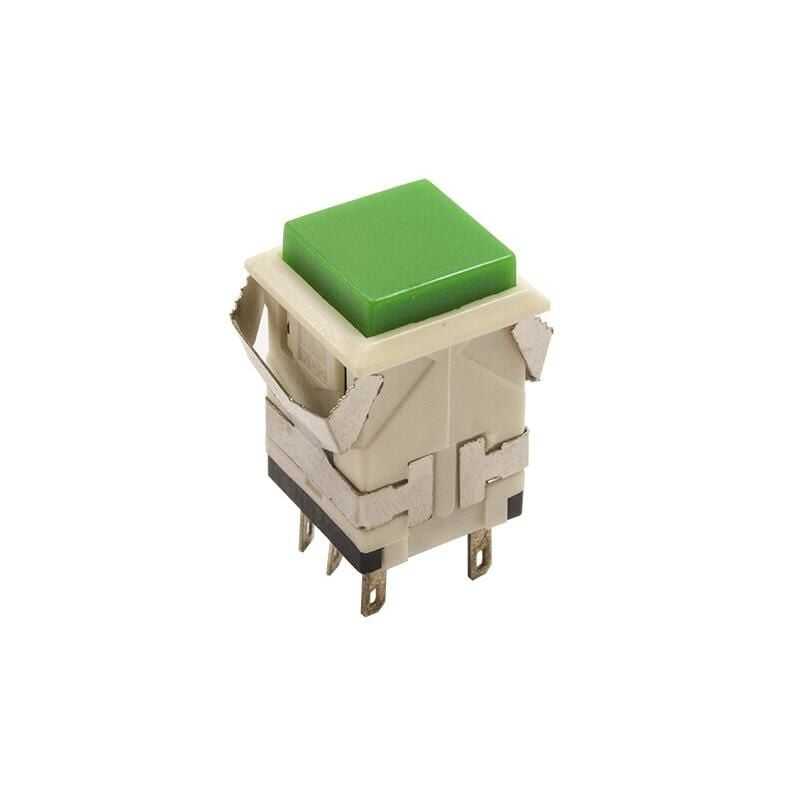

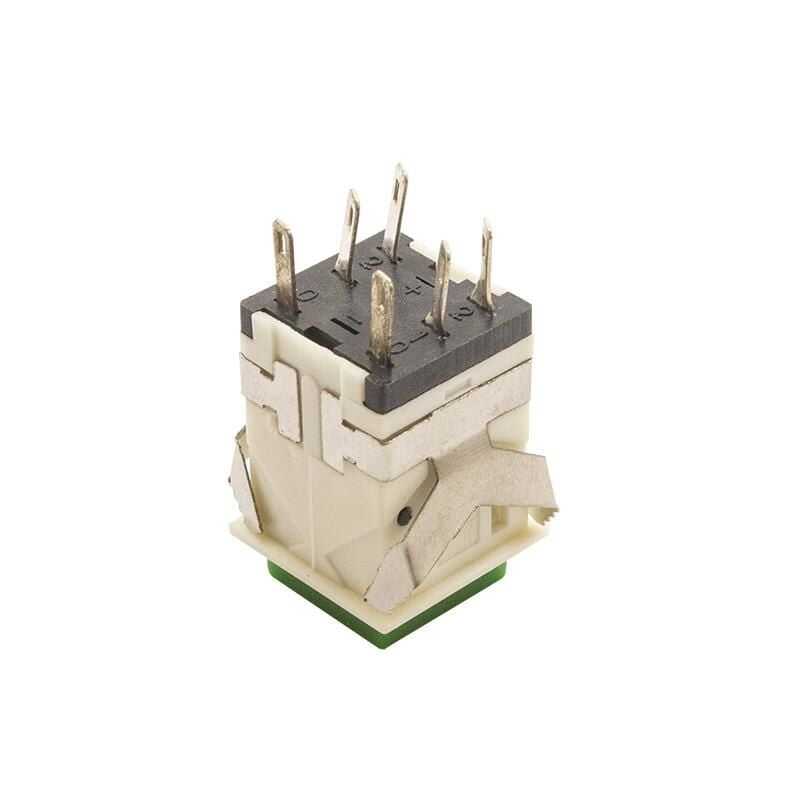

KD2-23 19mm Self - locking Push Button - Green
17,80
TL
+
VAT
21,36
TL
Notify Me When It Arrives
17,80
TL
+
VAT
21,36
TL
Add to Favorite
RecommendCommentAlarm Price
KD2-23 19mm Non-Illuminated Push Button with Switch - Green
When the Push Button with Switch is pressed, it will open and be in permanent state and will trigger a signal in this process, when pressed again the time signal will be activated. will be cut. It is an ideal keyed push button for your electronic applications.
Type: Keyed On -Off
Color: Green

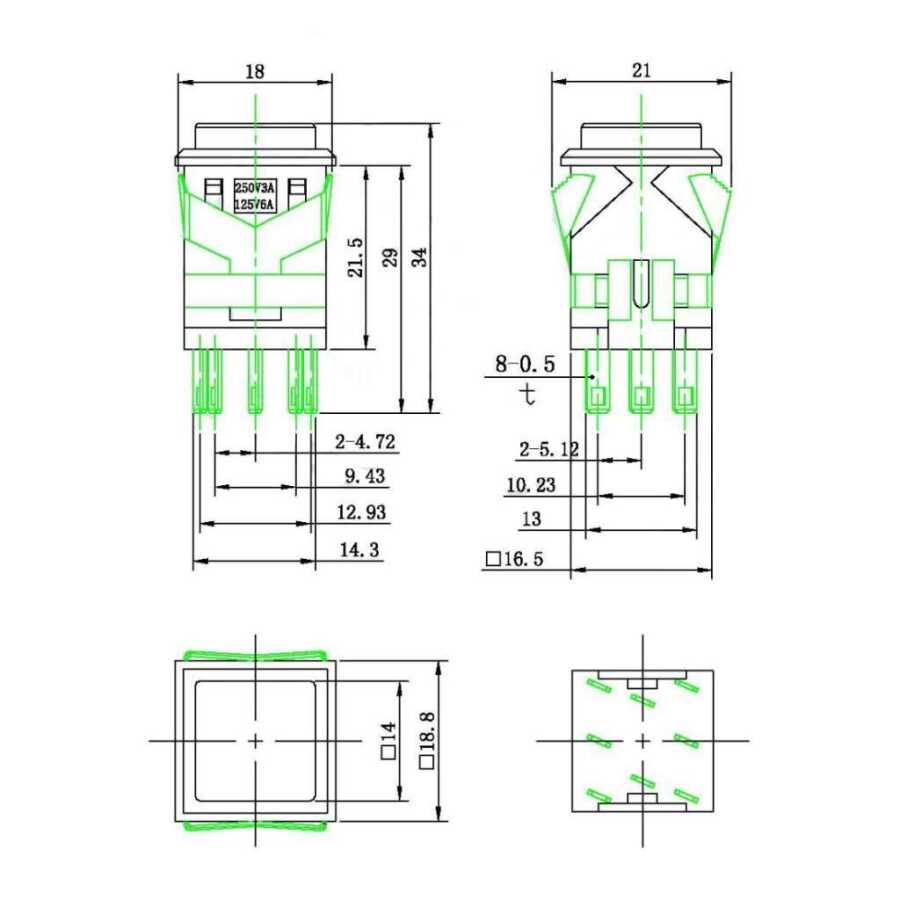

Exterior Square Size: 18.5x18.5mm
Panel Connection Cutting Dimension:17.2x17.2mm
Total Length: 34mm

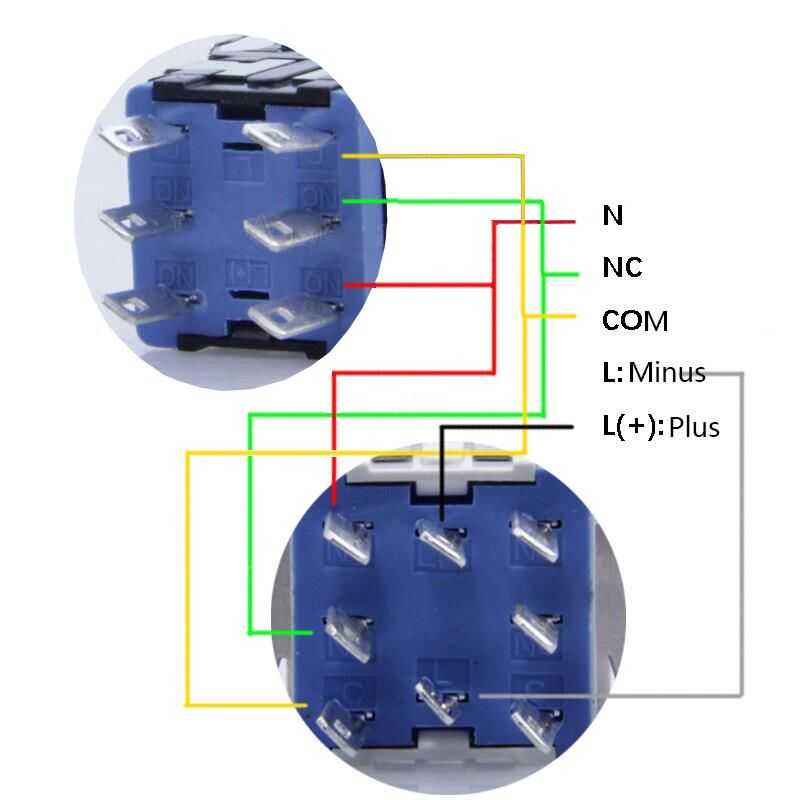

Terminal: 6 pin
Current / Voltage: 3A 250VAC/6A 125VAC
Contact Resistance: 100mΩ max.
Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 500VAC 1 minute
Operating Temperature: -25℃~+85℃Insulation Resistance: 100mΩ min (500VDC)
