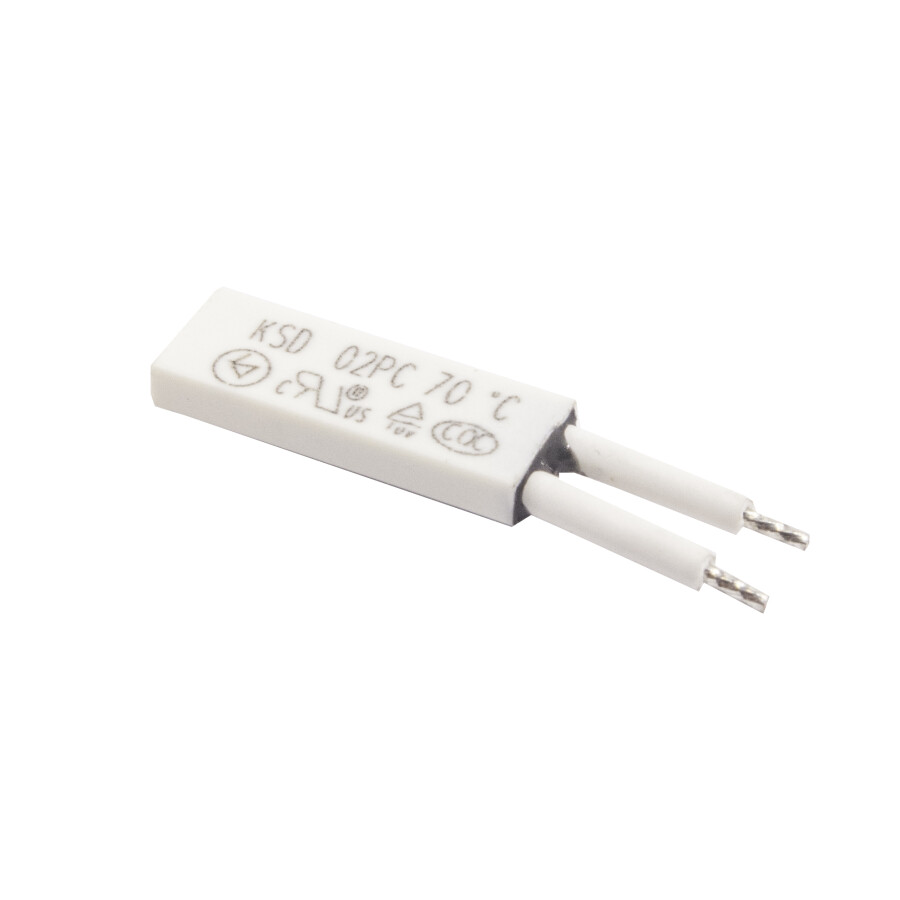

KSD 02PC 250V 2A NC 70 °C Ceramic Thermostat

KSD 02PC is a kind of thermostat that adopts a ceramic head as the temperature sensing element. Air conditioner motor, transformer, thermal devices, etc. It is widely used in motors and electrical equipment of household appliances.

Normally closed circuit limit thermostat. Since this product is a closed circuit, it passes the voltage until the temperature reaches 70 degrees, and when it reaches 70 degrees, it cuts off the voltage.

Technical Specifications:

Model: KSD 02PC
Material: Ceramic
Type: Normally Closed
Rated Voltage: 250V
Current: 2A
Cable Length (Approx): 1cm
Head Size (Approx): 15 x 6 x 2.45mm
Temperature: 70℃
