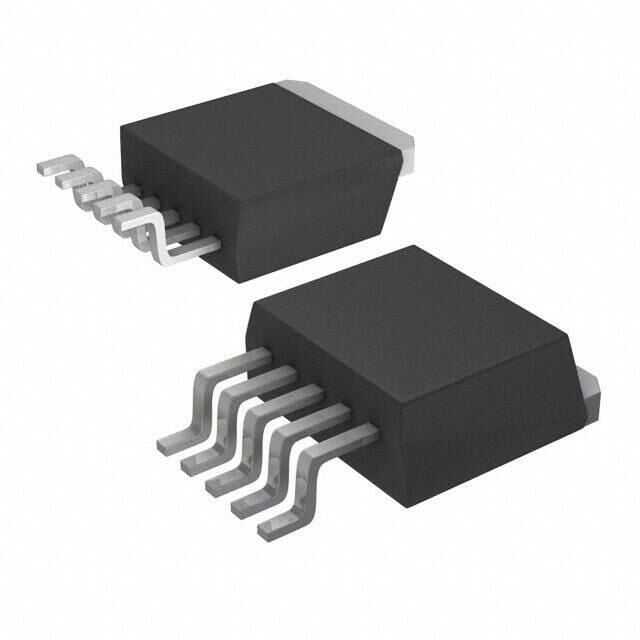

LM2596S-5V SMD DPAK-2 Voltage Regulator

LM2596 series regulators are monolithic integrated circuits that provide all active functions for a buck switching regulator capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V and in an adjustable output version.

Requiring a minimum number of external components, these regulators are easy to use and feature internal frequency compensation and a fixed frequency oscillator.

Usage Areas

*Electric Appliances

*Network infrastructure

*EPOS

Series	LM2596S
Supply Voltage	4.5V - 40V
Output Voltage	5V
Output Current	3A
Number of Exits	1 Exit

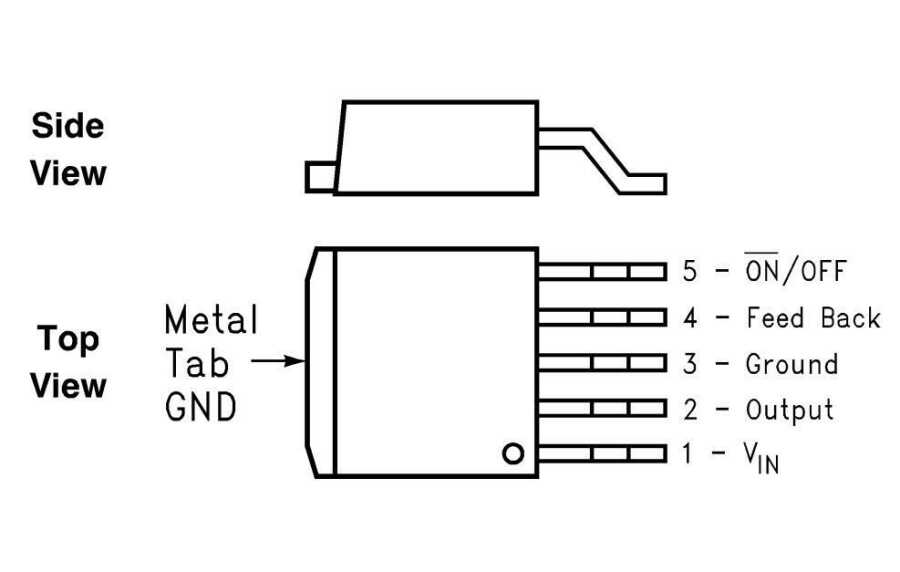

Number of Pins	5 Pin
Package Type	TO-263-5

LM2596S Datasheet
