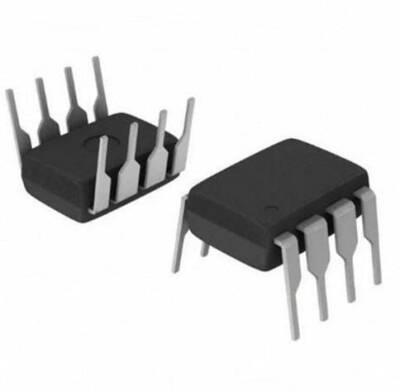

LM567CN DIP-8 Codec Integrated
15,23
TL
+
VAT
18,27
TL
Notify Me When It Arrives
15,23
TL
+
VAT
18,27
TL
Add to Favorite
RecommendCommentAlarm Price
LM567CN DIP-8 Codec IC

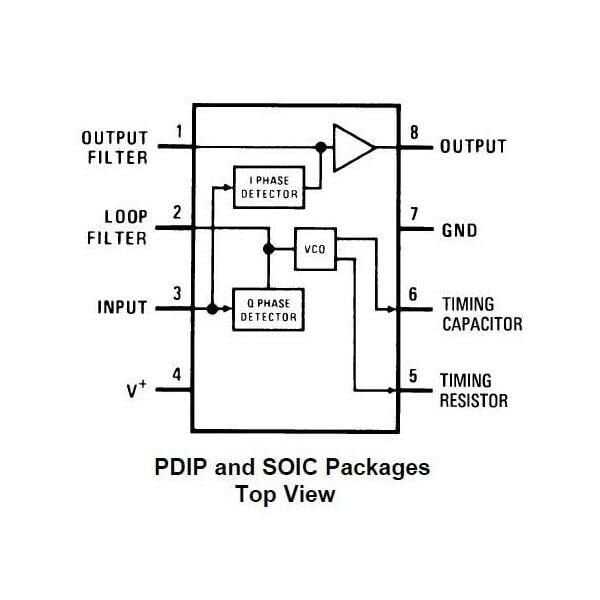

LM567 and LM567C are general purpose tone designed to provide a transistor switch saturated to ground when an input signal is present in the passband are decoders. The circuit consists of an I and Q detector driven by a voltage-controlled oscillator that determines the center frequency of the decoder. External components are used to independently adjust the center frequency, bandwidth and output delay.
Usage Area
Touch Tone Decoding
Precision Oscillator
Frequency Monitoring and Control
Wideband FSK Demodulation
Ultrasonic Controls
Carrier Current Remotes
Communication Paging Decoders
| Series | LM567CN |
| Supply Voltage | 3.5-8.5V |
| Operating Supply Current | 12 mA |
| Pd - Power Distribution | 1.1 W |
| Frequency | 500 kHz |
| Number of Pins | 8 Pin |
| Package Type | DIP-8 |
