LT-80W 12V TTL Burning CNC Laser Module Set

LT-80W is a burning laser set with 80W power that works with 12V. It can engrave and mark metal surfaces, wood and plywood. It can cut plywood up to 8-10mm.

It is an ideal product for those who want to build their own CNC laser cutting machine. Since it is a very powerful laser, it can cut and process most materials. A 12V, minimum 3A adapter is required to power the product. There is no adapter included in the product.

The laser head comes with a specially designed air support nozzle. When cutting with this laser head, the air support system will blow air from the air nozzle. This will give you an excellent cutting experience and greatly reduce burn marks. Air pump recommendation: Air pressure and capacity: ≥0.027kPa, 27L/min

Specifications:

Output power: 80W
Optical Power: 10W
Wavelength: 450nm (± 10nm)
Laser color: blue
Focal length: 45mm
Dot form: fixed focus
Electric power: 12V 3.2A(3A-3.5A)
PWM modulation: 0/5-12V 0-5kHz TTL /PWM
Input port: XH2.54-3P socket

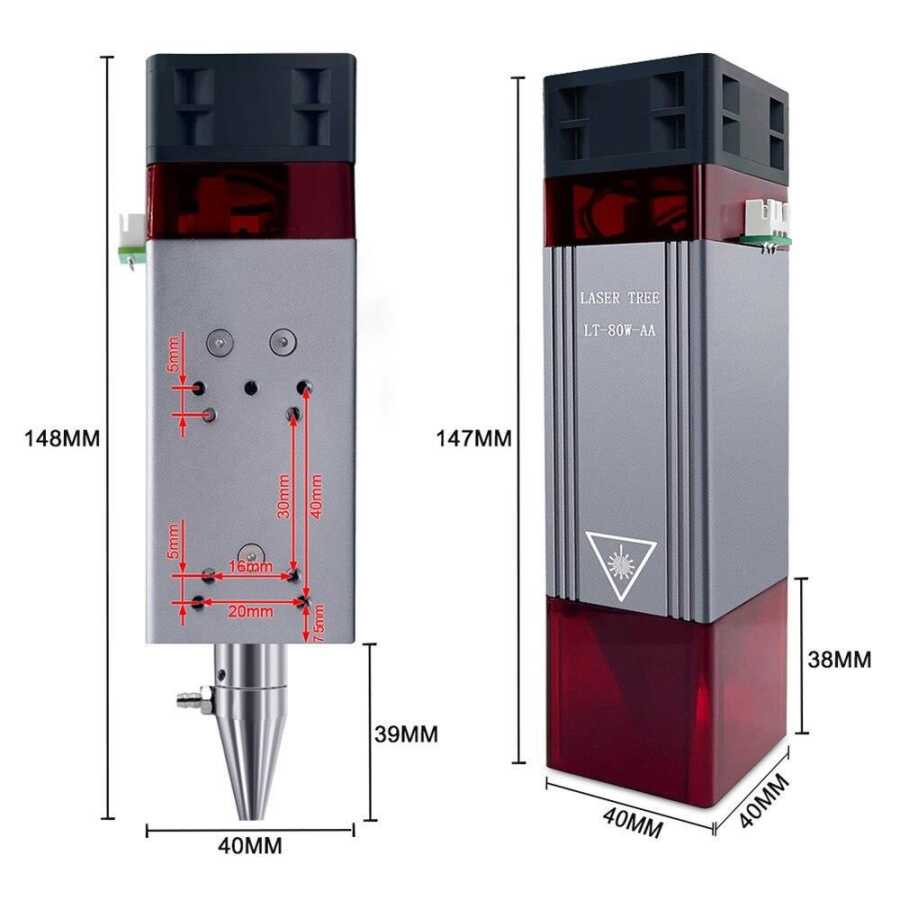

Product size: 40*40*147mm
Laser module net weight: 250g
Materials that can be engraved;
- MDF, leather, plywood, ceramics, bone, stone, bamboo, wood, etc.
Materials that can be cut;< ul>
8-10mm Plywood
5-6mm Leather
4-5mm MDF
8-10mm Wood
4 -5mm Black Acrylic

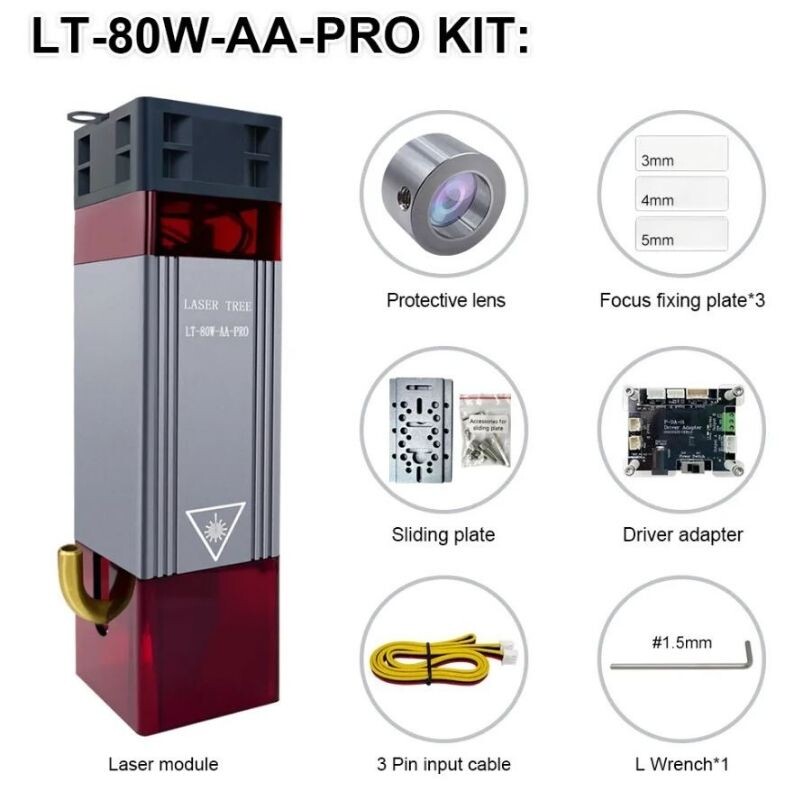

Product Content

LT-80W Laser
Protective Lens
3-4-5mm focus corrector transparent plate
Sliding Plate
Drive Adapter
Hexagon
3 Pin Supply Cable
