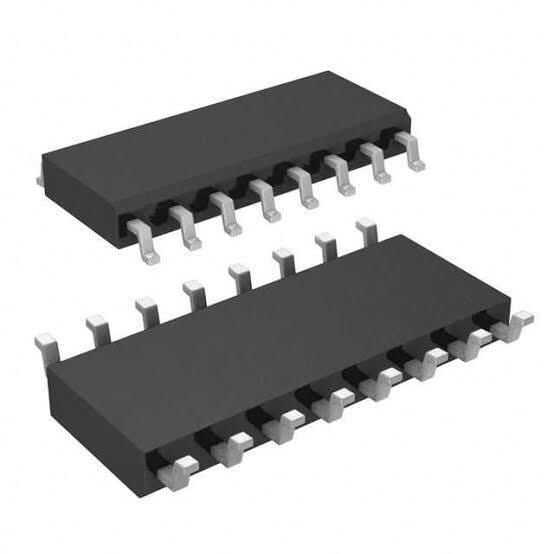

MAX232 SMD SO16 Integrated
The MAX232 device is a dual driver/receiver incorporating a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3V, a typical hysteresis of 0.5V, and can accept ±30V inputs. Each driver converts TTL/CMOS input levels to TIA/EIA-232-F levels.
Usage Areas
- TIA / EIA-232-F
- Battery Powered Systems
- Terminals
- Modems
- Computers
| Series | MAX |
| Supply voltage | 4.5-5.5V |
| Number of Drives | 2 |

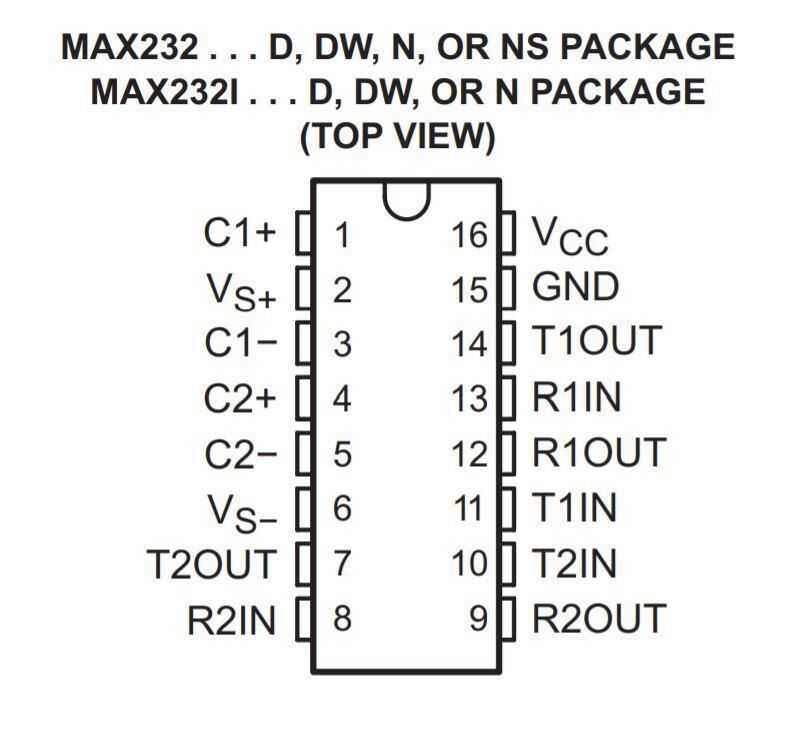

| Number of Pins | 16 |
| Package Type | SO-16 |
