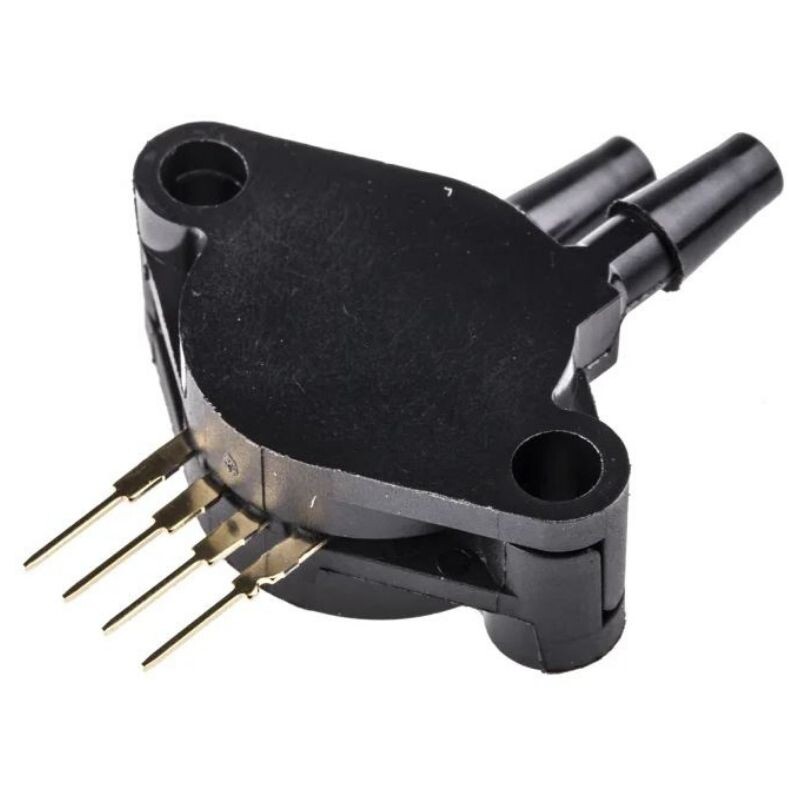

MPX2010DP Pressure Sensor
MPX2010DP is a differential, dual-port silicon pressure sensor in a 4 pin SIP package. This piezoresistive pressure sensor provides a very sensitive and linear voltage output directly proportional to the applied pressure. It features an integrated strain gauge and thin-film resistor network on-chip. The sensor is laser cut for precise aperture, offset calibration and temperature compensation.
To see all our pressure sensors click.
| Pressure Type | Differential | |
|---|---|---|
| Operating pressure | 1.45 PSI (10 kPa) | |
| Output Type | Wheatstone Bridge | |
| Output | 0 mV ~ 25 mV (10V) | |
| Accuracy | ±%1 | |
| Voltage - supply | 10V ~ 16V | |
| Port Size | Male - 0.19" (4.93mm) Pipe, Double | |
| Port Style | Prickly | |
| Features | Temperature Corrected | |
| Termination Style | PCB | |
| Maximum Pressure | 10.88 PSI (75 kPa) | |
| Operating temperature | -40°C~125°C | |
| Package / Status | 4-SIP Module |
