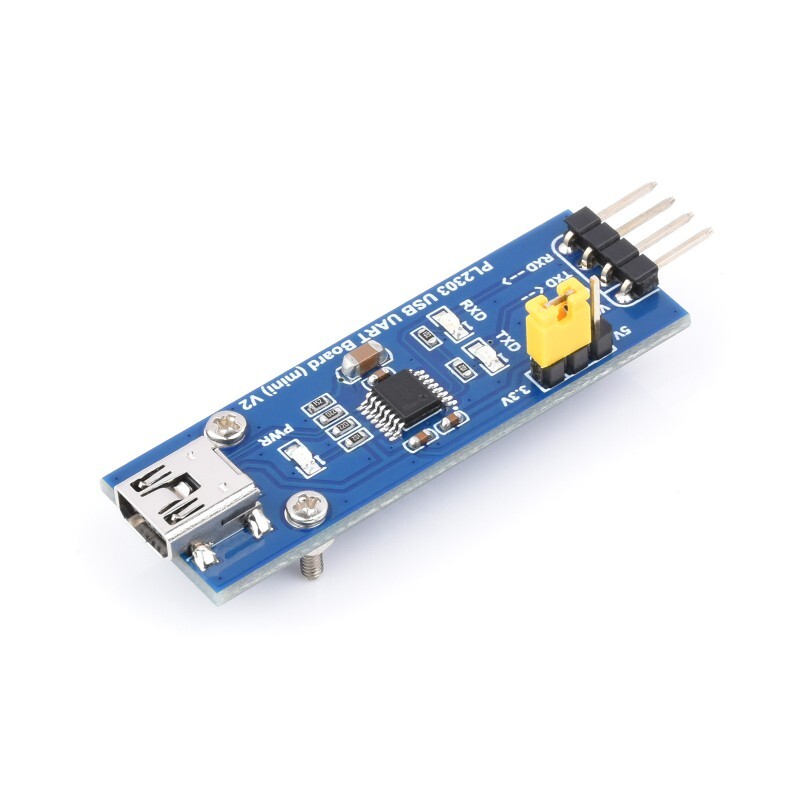

PL2303 USB - UART (TTL) Communication Module - mini USB

PL2303 USB - UART (TTL) Communication Module - mini USB

PL2303 USB - UART (TTL) Communication Module - mini USB, Communication Module Windows XP/7/8/10/11/ etc. operating systems and compatible with 1.8V/2.5V/3.3V/5V logic voltage.

User Manual

Features

• SKU: 24680
• Windows XP/7/8/10/11/... support
• 3x VCCIO power mode with jumper setting.
• VCCIO - 5V: 5V external power supply
• VCCIO - 3.3V: 5V external power supply
• Without jumper cap: works with external power (1.8V/2.5V/3.3V/5V).
• Onboard 3 LED indicators: TXD, RXD, PWR.
• Communication interface: USB/UART
• Chip: PL2303
• USB interface voltage: 5V
• UART interface voltage: 1.8V/2.5V/3.3V/5V
• Size: 16.51mm x 48.26mm
