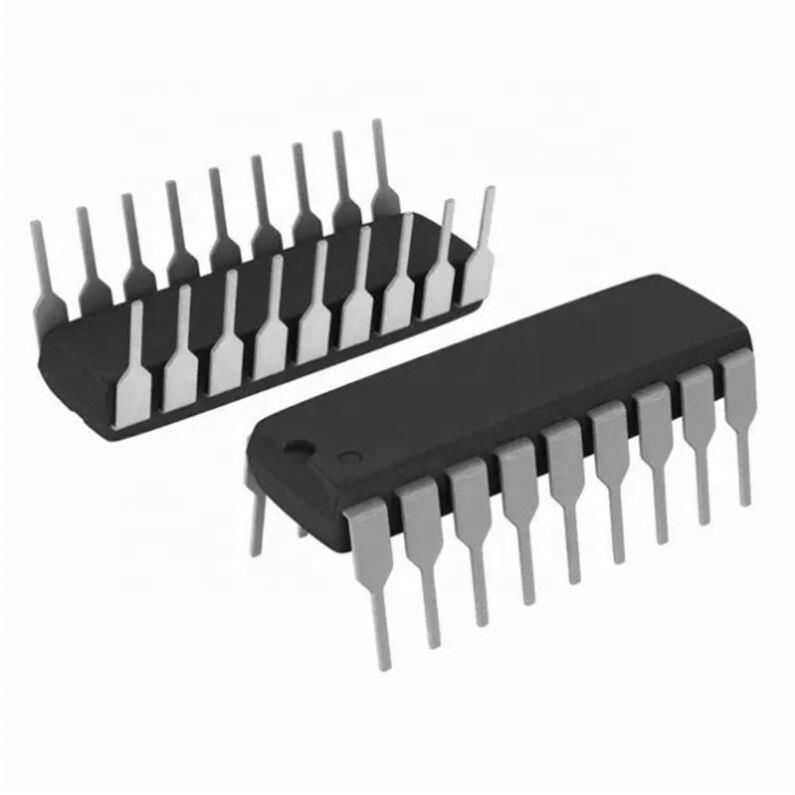

PT2262 DIP-18 Encoder Integrated

PT2262 is a remote control encoder paired with PT2272 using CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation. The PT2262 has a maximum of 12-bit three-state address pins providing up to 531,441 (or 312) address codes; thus, greatly reducing any code collisions and unauthorized code scanning possibilities.

Uses

*Vehicle Security System

*Garage Gate Controller

*Remote Control Fan

*Home Security/Automation System

* Remote Control Toys

*Remote Control for Industrial Use

Series	PT2262
Supply Voltage	4-15V
Power distribution	300mW
Number of Data Pins	6 Pin
Tri-State Code Address Pins	12

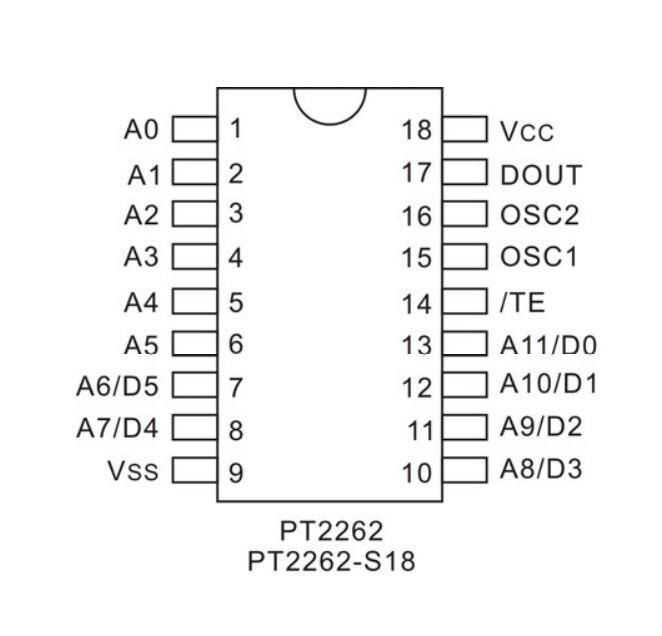

Number of Pins	18
Package Type	DIP-18

PT2262 Datasheet
