Name: RP2040-Zero MCU Programming Board with Raspberry Pi Chip
Brand: Motorobit
SKU: RSP.MDL.01.000007
Price: 258.00 TRY
Availability: InStock

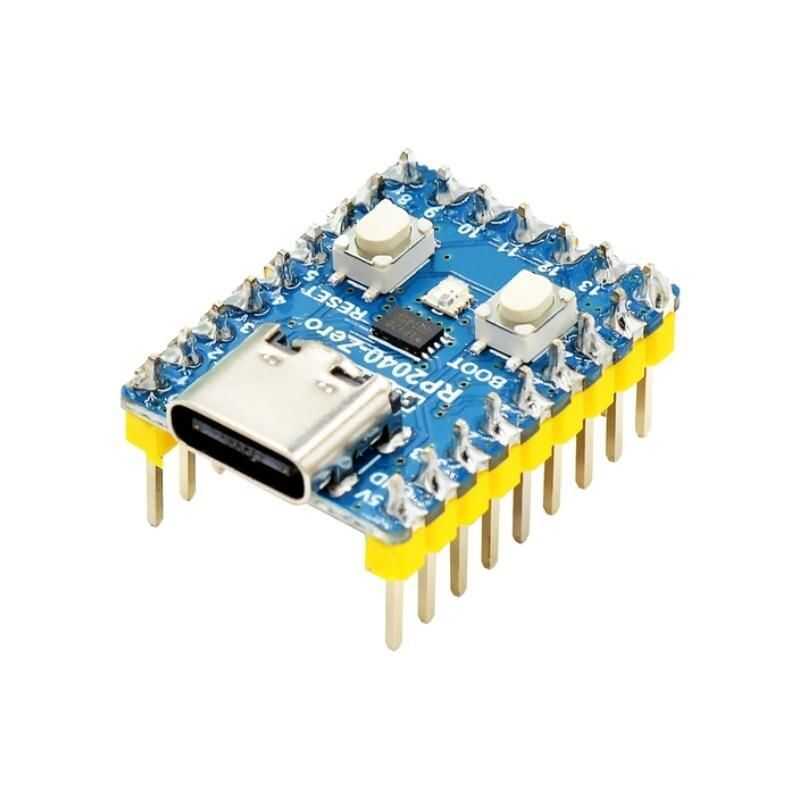

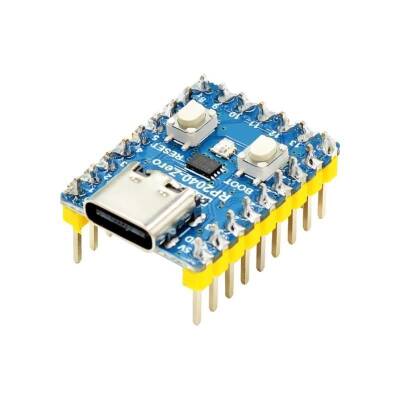

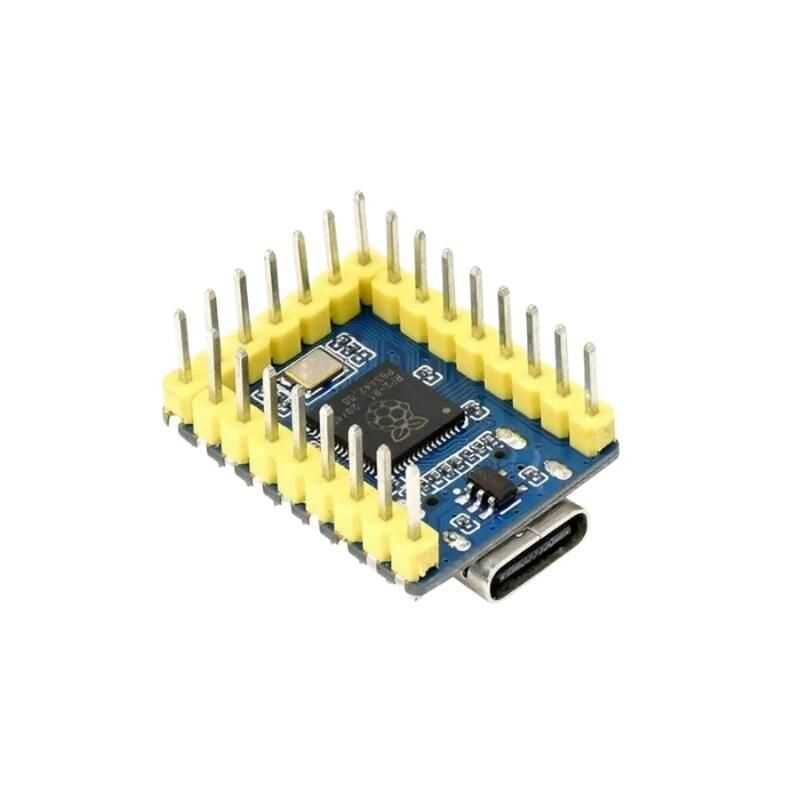

RP2040-Zero MCU Programming Card with Raspberry Pi Chip

RP2040-Zero is an MCU card similar to Raspberry Pi Pico. It has a Raspberry Pi chip on it. This product, which is 18x23.5mm in size, is suitable for many projects thanks to its small size.

Features:

By Raspberry Pi designed RP2040 microcontroller chip.
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
264KB SRAM and 2MB onboard Flash memory.
USB-C connector keeps it up to date, easier to use.
Petal module allows soldering directly to carrier boards.
Device and host supported USB 1.1.
Low-power sleep and sleep modes.
Drag-and-drop programming using mass storage via USB.

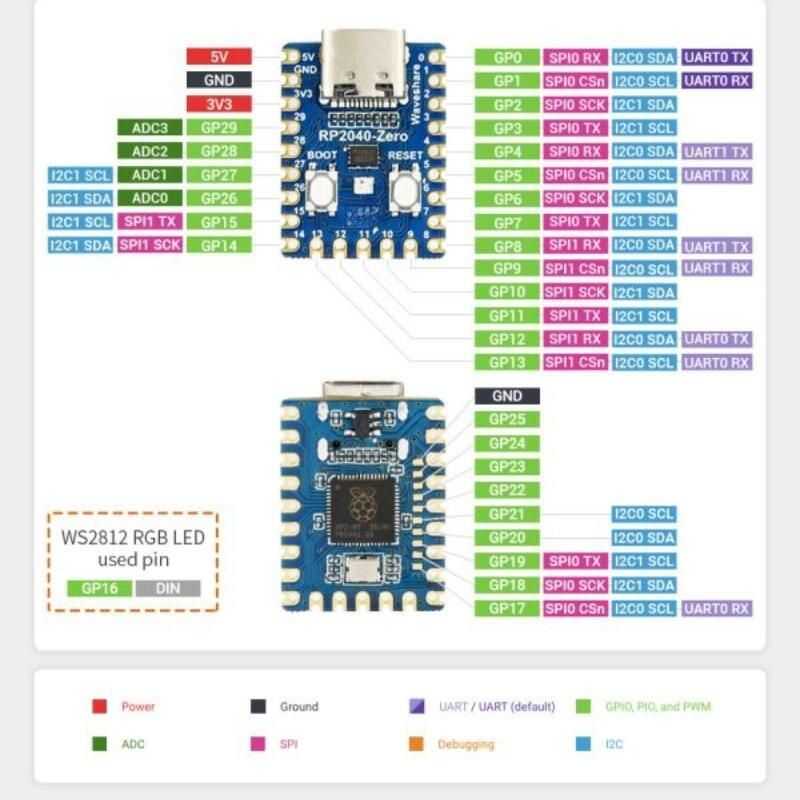

29 × multifunction GPIO pins (20 × via edge pinout, via solder points others).
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.
Accurate clock and timer on chip.
Temperature sensor.
On-chip accelerated floating point libraries.
8 × Programmable I/O (PIO) state machines for dedicated peripheral support.
