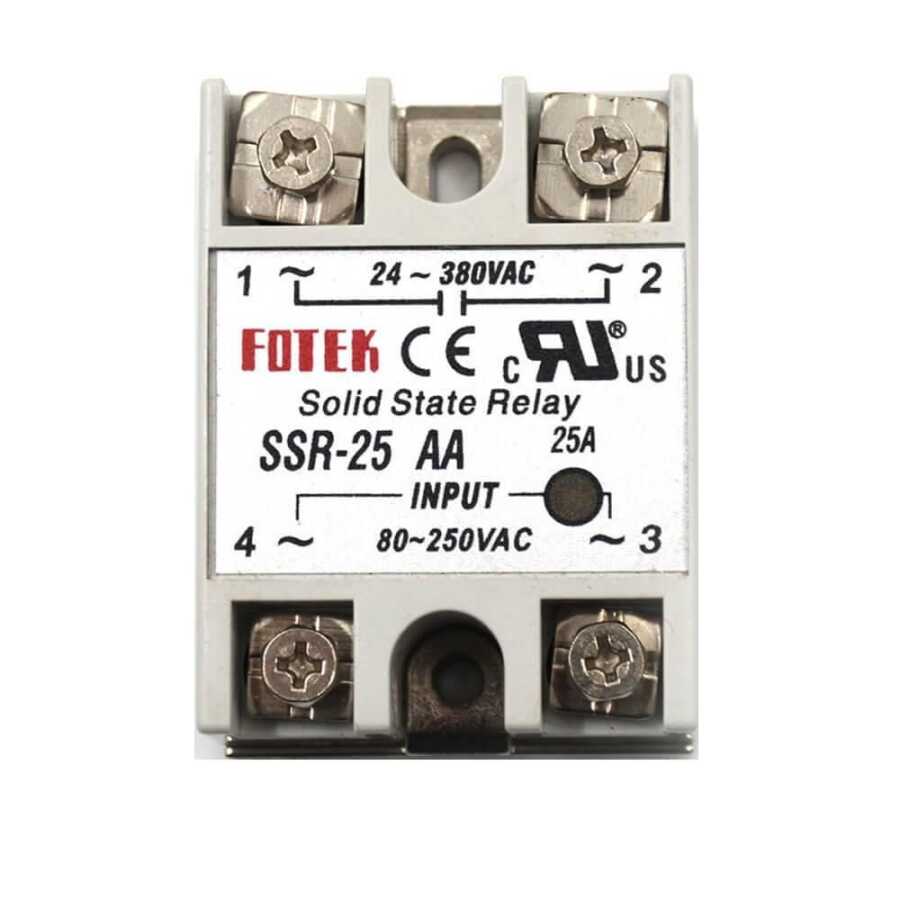

SSR-25AA Solid State Relay 25A

Fotek SSR-25AA 25 Ampere Solid State (Relay) relay. Solid state relays work like classical relays or contactors where they are used. Since they consist of a semiconductor circuit, they are longer lasting and more durable than other products with mechanical contact outputs.

Fotek Solid State Relay This product, which is triggered by AC 80-250 volt supply, can switch AC 24-380V electricity. It can also work compatible with programming cards such as Arduino and Raspberry Pi.

All Solid State Relay types here you can find it.

Features:

Model: SSR-25 AA
Load Voltage: 24-380VAC
Load Current: 25A
Control Voltage: AC 80-250V
Operating Indicator: LED
Shutdown Voltage: ＜35 VAC
Trigger Current: Max. 1.0 VA
Control Method: Zero cross switching
Leakage Current: Max. 5 mA
Response Time: Max. 8.3 ms (60 Hz)
Input Voltage Immunity: 2 KV (EN61000-4-4)
Insulation Power: 4 KVrms (EN60950/VDE0805)
Insulation Strength: 100MΩ / 500VDC (EN60950/VDE0805)
Coating Material: ABS (UL:94V0)
Ambient Conditions: -40°C ~ +80°C；35~85 %RH

Fotek SSR Datasheet
