T-SIM7080G-S3 ESP32-S3 TTGO Development Board

T-SIM7080G-S3 ESP32-S3 TTGO Development Board

T-SIM7080G-S3 ESP32-S3 TTGO Development Board, measurement, asset tracking, remote monitoring, E-health etc. It is a development board that you can use for M2M applications such as.

Imei is not registered.

Guide

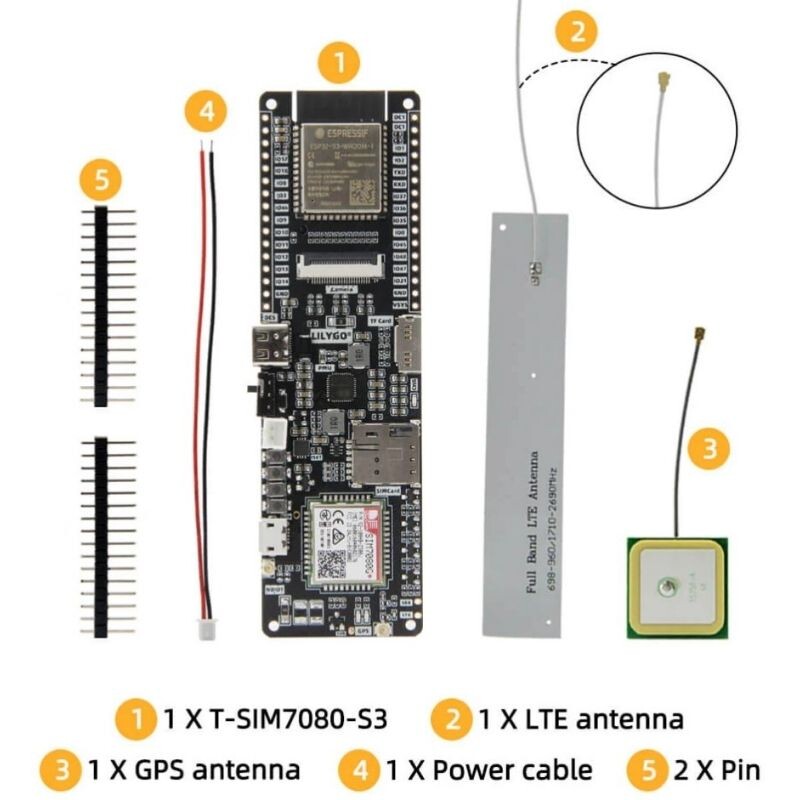

Package Content

• 1x T-SIM7080G-S3
• 1x LTE antenna
• 1x GPS antenna
• 1x Power cable
• 2x Header
>

Specifications

• MCU: ESP32-S3
• CAT-M & NB-IoT: SIM7080G
• Sim card support
• TF card support
• Clock Speed: 240Mhz
• Flash: 16MB
• PSRAM: 8MB
• Wireless Connection: Wifi, Bluetooth LE: Bluetooth 5
• Interface: I2C, SPI, UART, SDIO, I2S, CAN
• Dimensions: 111x33x20mm
