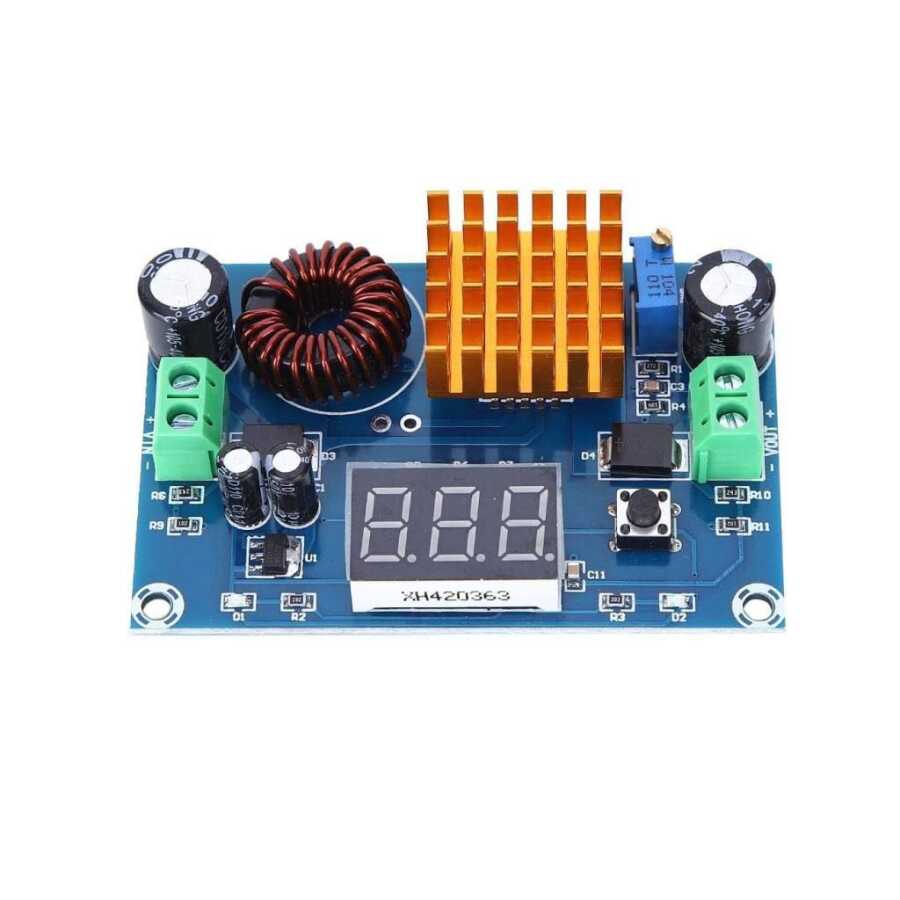

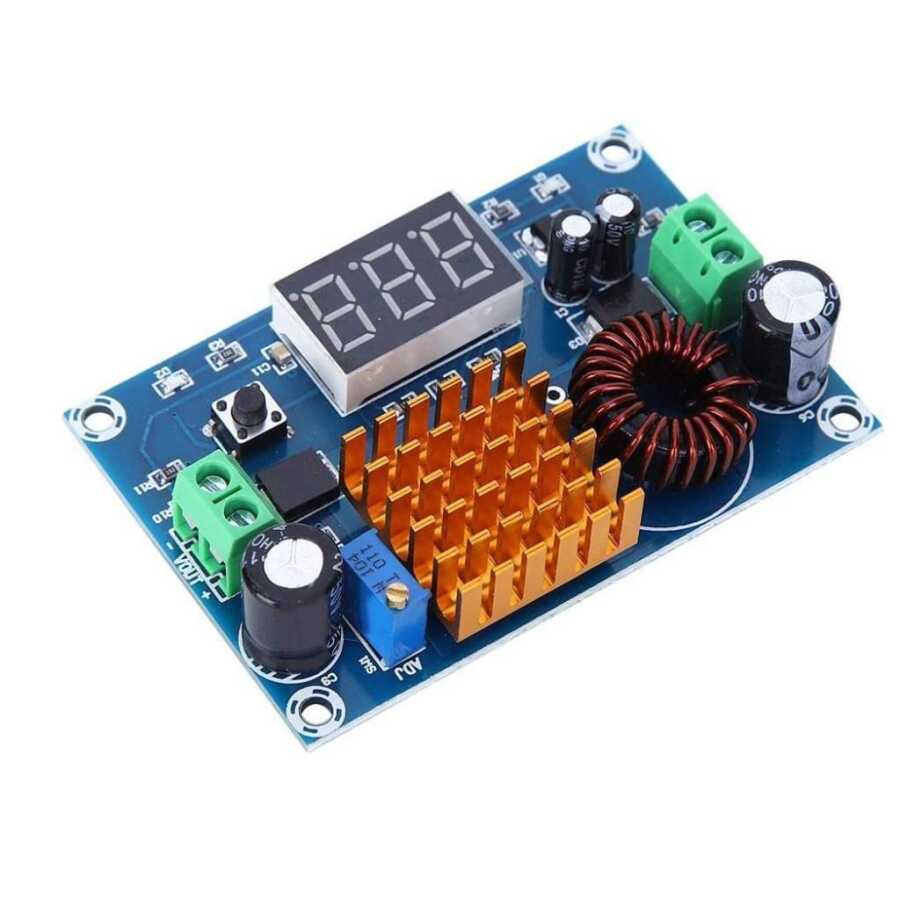

VHM-411 5A 100W Voltage Booster Step Up Regulator Board

VHM-411 voltage booster, which can increase the input voltage from 4-35V to 5-45V voltage booster is the regulator card. The output voltage value cannot be lower than the input voltage. For example, if the input is 12V, it gives an output value between 12-45V.

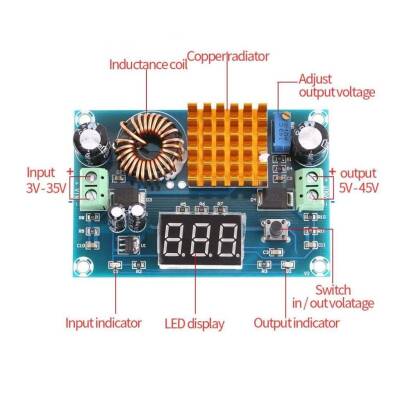

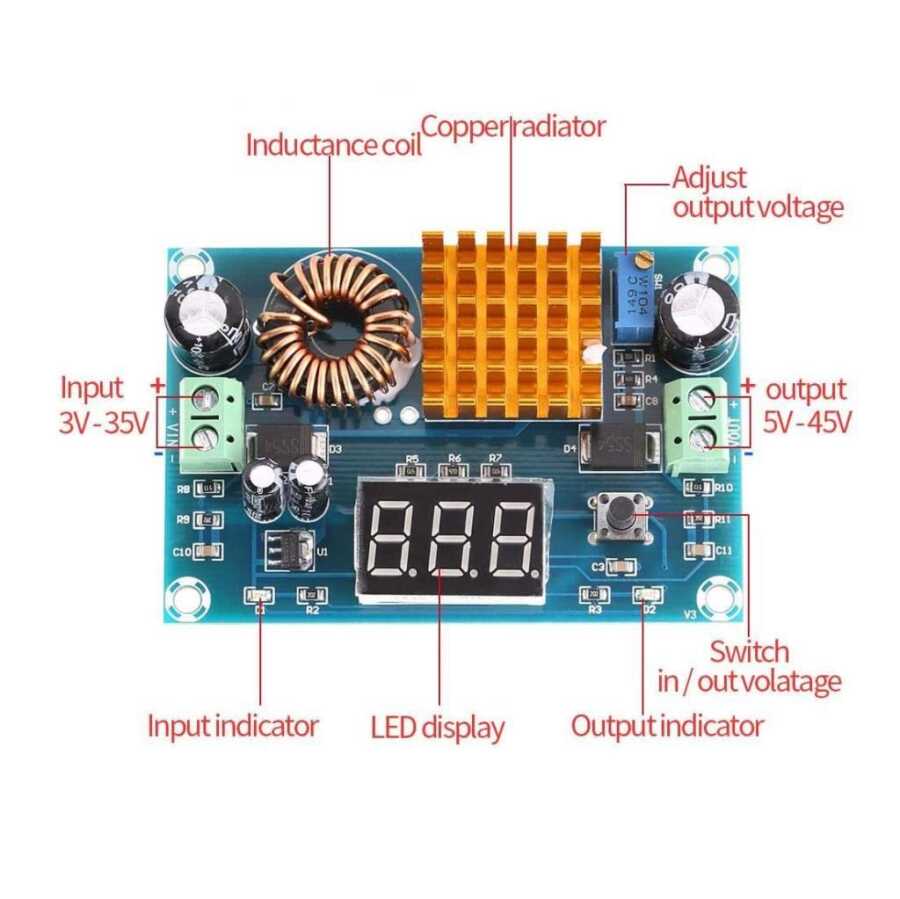

Input or output voltage can be observed on the screen on VHM-411, which is very easy to use. You can switch between input and output voltages by pressing the button on the circuit. Voltage increase adjustment can be made very easily with the help of the trimpot on the module.

VHM-411 Technical Specifications:

Input Voltage : 4V-35V
Output Voltage: 5V-45V
Current: 5A Maximum
Maximum Power: 100W
Sensitivity: 0.1V
Product Weight: 38 grams
Product Dimensions: 70x50x26mm
