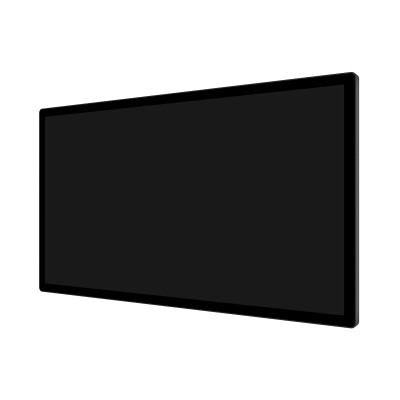

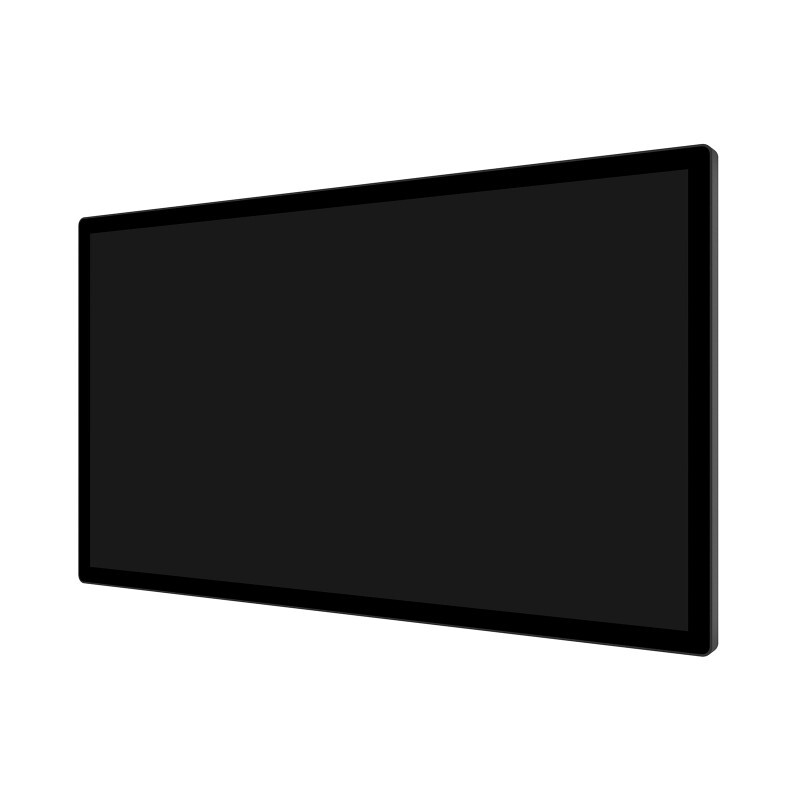

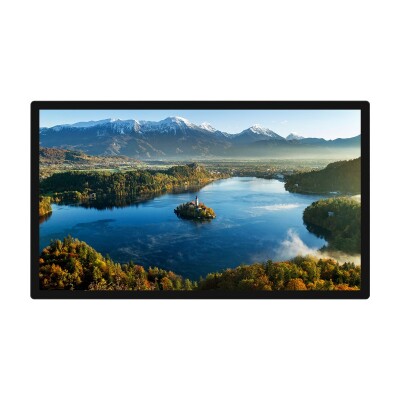

WaveShare 27" 1920×1080 Full HD Capacitive Touchscreen

WaveShare 27" 1920×1080 Full HD Capacitive Touchscreen

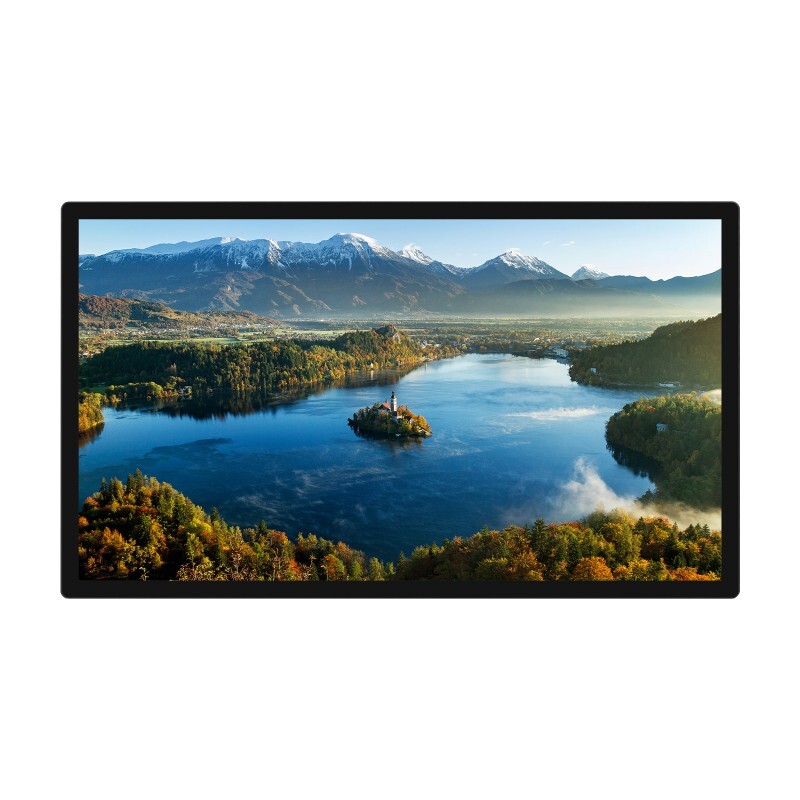

The WaveShare 27" 1920×1080 Full HD Capacitive Touchscreen is a versatile display solution that combines Full HD resolution and a 10-point capacitive touch panel. The 1920 × 1080 resolution IPS panel, 178° wide viewing angle, and 99% sRGB color gamut provide high-quality and vibrant images for both everyday use and professional applications.

User Manual

Features

• SKU: 34082
• 27-inch IPS display with 1920x1080 hardware resolution
• 10-point capacitive touchscreen with reinforced glass panel and up to 6H hardness
• Optical coupling touch operation for better image effect
Uses

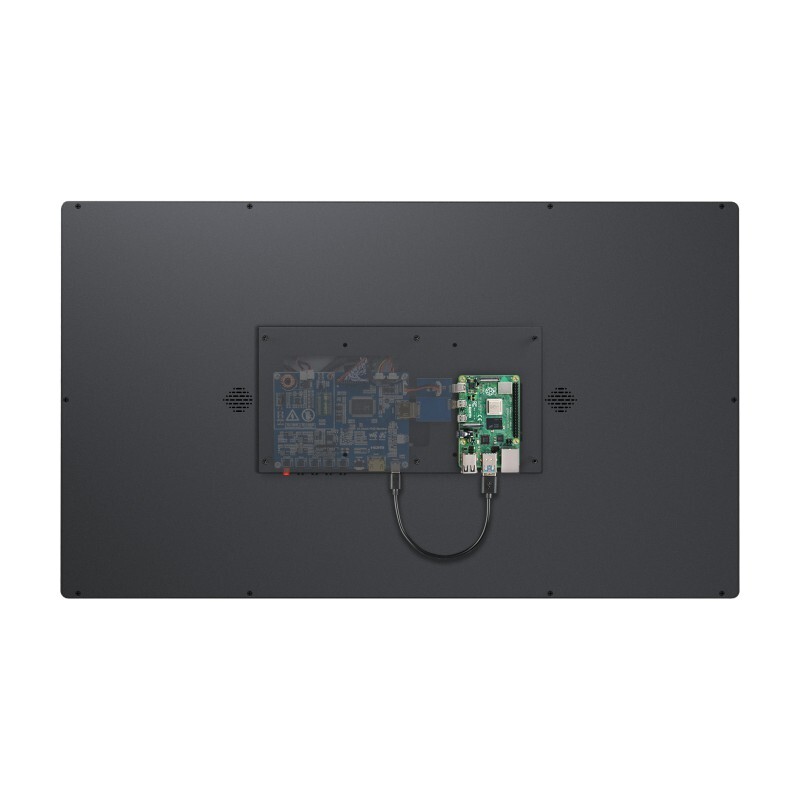

• When used with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali and Retropie
• When used as a computer monitor, it supports Windows 11 / 10 / 8.1 / 8 / 7
• When used with Jetson Nano, it supports Ubuntu
• Supports multi-language OSD menu (for power control, brightness/contrast adjustment, etc.)
• Built-in high-quality speaker supporting HDMI audio output

Technical Specifications

• Size: 27 Inches
• Viewing Angle: 178 Degrees
• Resolution: 1920×1080 Pixels
• Dimensions: 629.62(H) × 367.40(D) ​​× 18.00(D) mm
• Active Area: 597.88(H) × 336.31(D) mm
• Pixel Pitch: 0.3114(H) × 0.3114(D) mm
• Color Gamut: 99% sRGB
• Contrast Ratio: 1500:1
• Backlight Adjustment: OSD Menu
• Refresh Rate: 60 Hz
  Display Interface: Standard HDMI Interface
• Power Interface: 12V
• Typical Power Consumption: 36 Watts
• Weight: 4.92 kg

Package Contents

• 27 inch FHD Monitor x1
• 12V 5A Power Supply x1
• USB Type-A male to Type-C male port cable ~15cm x1
• USB Type-A male to Type-C male port cable ~1m x1
• HDMI flat cable ~1m x1
• Cleaning cloth x1
• Screw pack x1

Size
