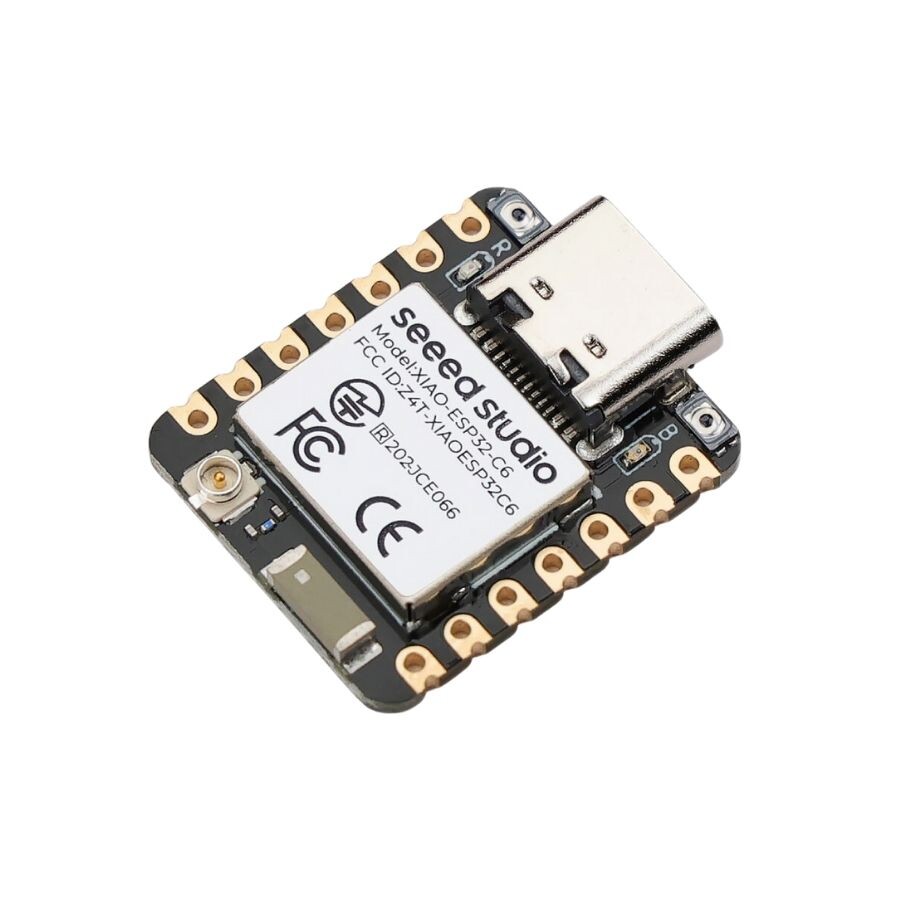

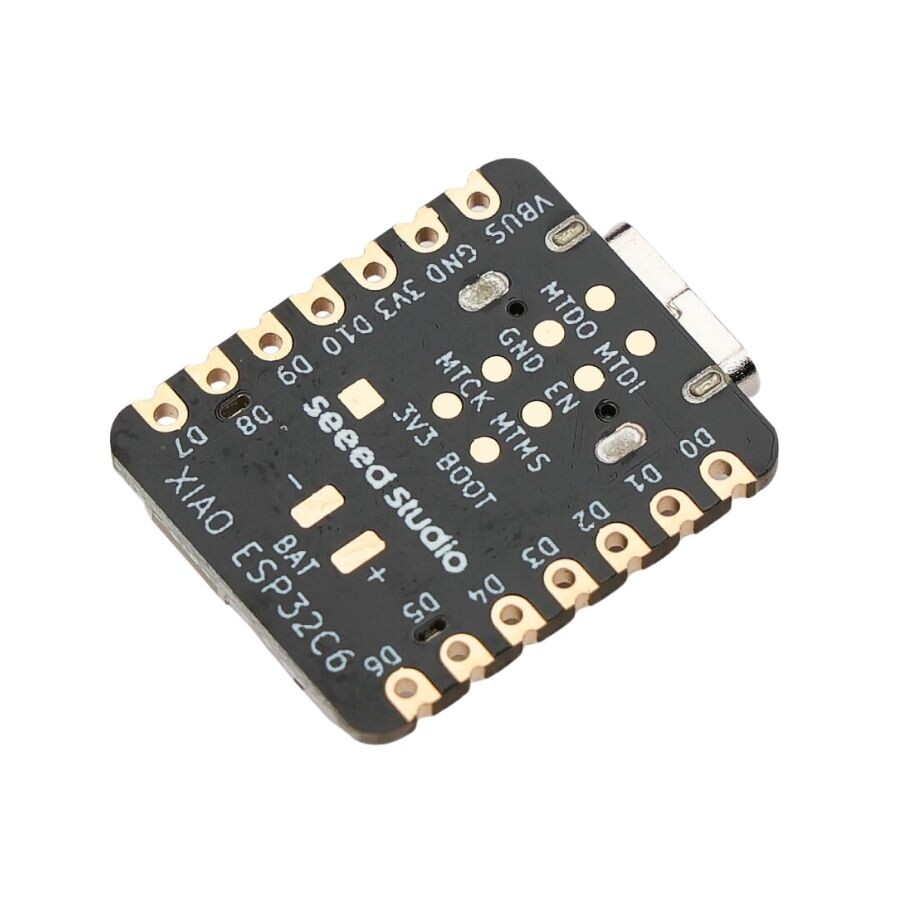

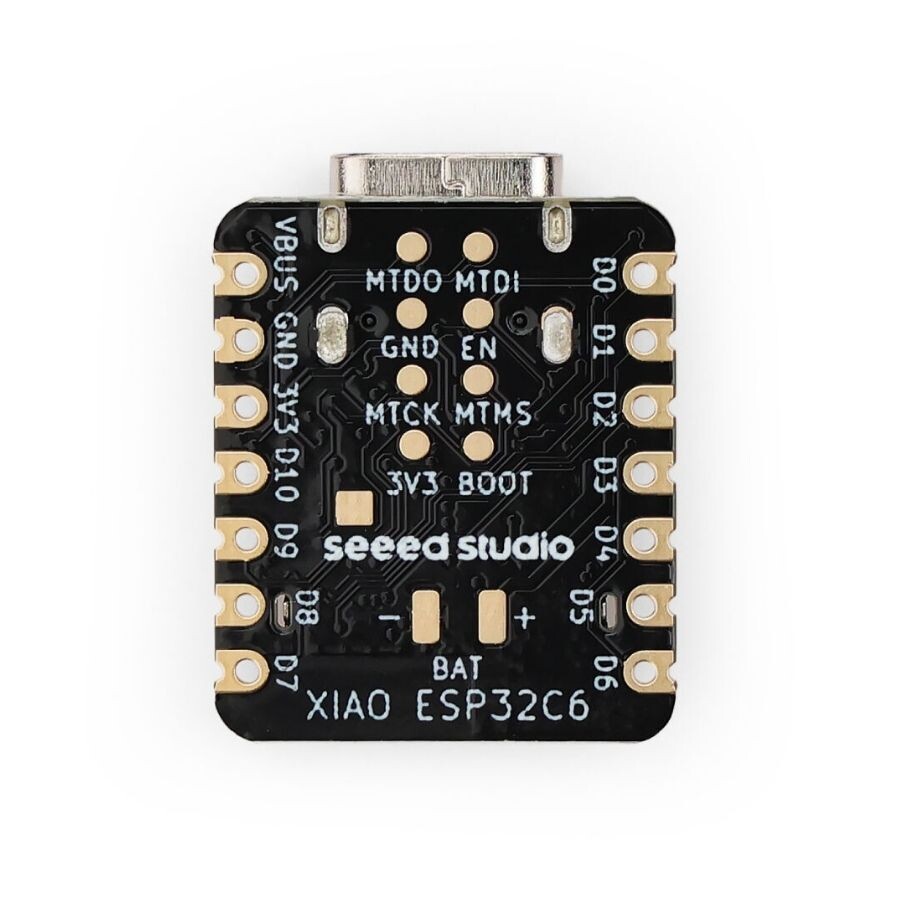

Gelince Haber VerXIAO ESP32-C6 Geliştirme Kartı, Espressif’in ESP32-C6 tabanlı, uygun maliyetli bir MCU'dur. Bu kompakt MCU, çeşitli kablosuz bağlantı desteğiyle (2,4 GHz Wi-Fi 6, BLE 5, Zigbee ve Thread) Matter uyumlu akıllı ev uygulamalarında mükemmel performans gösterir. XÇip üzerinde şifrelenen XIAO ESP32C6, istenen düzeyde güvenlik, sorunsuz bir geliştirme deneyimi ve önde gelen IoT bulut platformlarıyla kolayca entegre olmaktadır.
Product | XIAO ESP32C6 | XIAO ESP32C3 | XIAO ESP32S3 |
Processor | Espressif ESP32-C6 SoC | Espressif ESP32-C3 SoC | Espressif ESP32-S3R8 |
two 32-bit RISC-V processors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz | RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz | Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
| |
Wireless | Complete 2.4GHz Wi-Fi 6 subsystem | Complete 2.4GHz Wi-Fi subsystem | Complete 2.4GHz Wi-Fi subsystem |
BLE: Bluetooth 5, Bluetooth mesh | |||
Zigbee,Thread,IEEE 802.15.4 | / | / | |
On-chip Memory | 512KB SRAM & 4MB Flash | 400KB SRAM & 4MB Flash | 8M PSRAM & 8MB Flash |
Interface | 1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO | 1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC | 1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED |
1x Reset button, 1x Boot button | |||
Dimensions | 21 x 17.8mm | ||
Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V | ||
Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA | |||
Charging battery current: 100mA | |||
Power Consumption Model (Supply Power: 3.8V) | Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~ 15 μA | Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~ 44 μA | Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2 mA Deep Sleep Model: ~ 14 μA |
Working Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 65°C |
