ZK-SK150C 150W 8A Adjustable DC Power Supply Module

ZK-SK150C 150W 8A Adjustable DC Power Supply Module

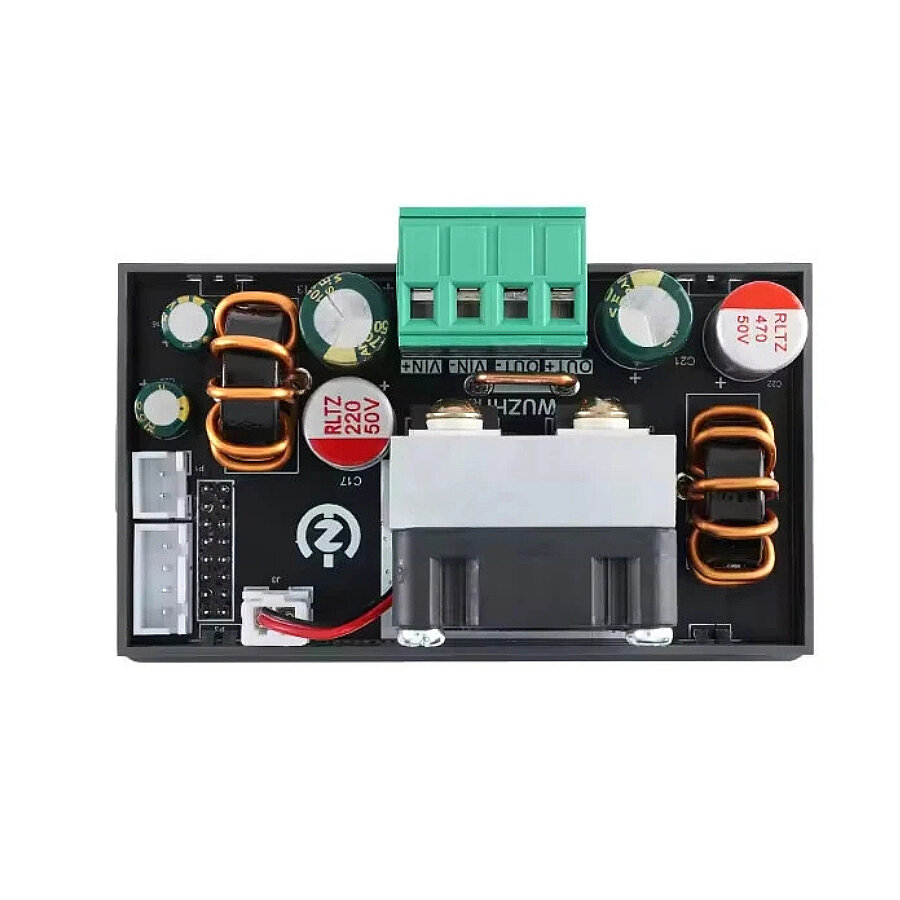

The ZK-SK150C 150W 8A Adjustable DC Power Supply Module is designed to convert a 7–36V DC input voltage into an adjustable 0.5–40V DC output. Thanks to its buck-boost architecture, it can both step down and step up the input voltage. It features a maximum output current of 8A and a rated output power of 150 watts.

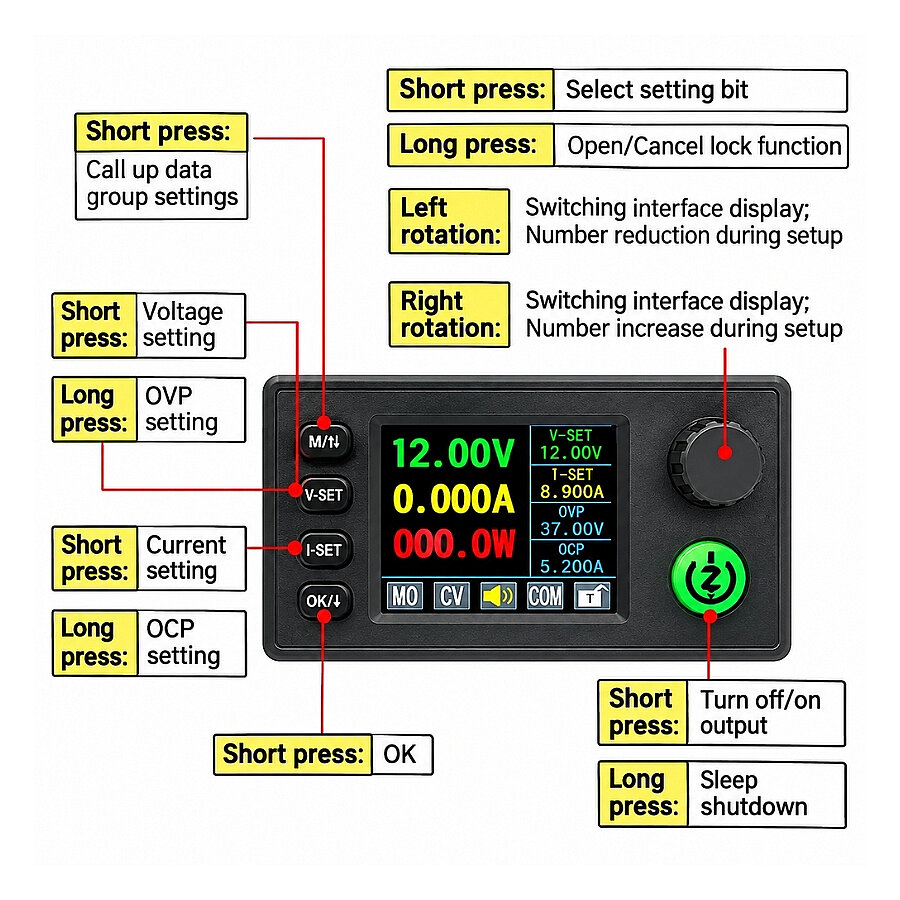

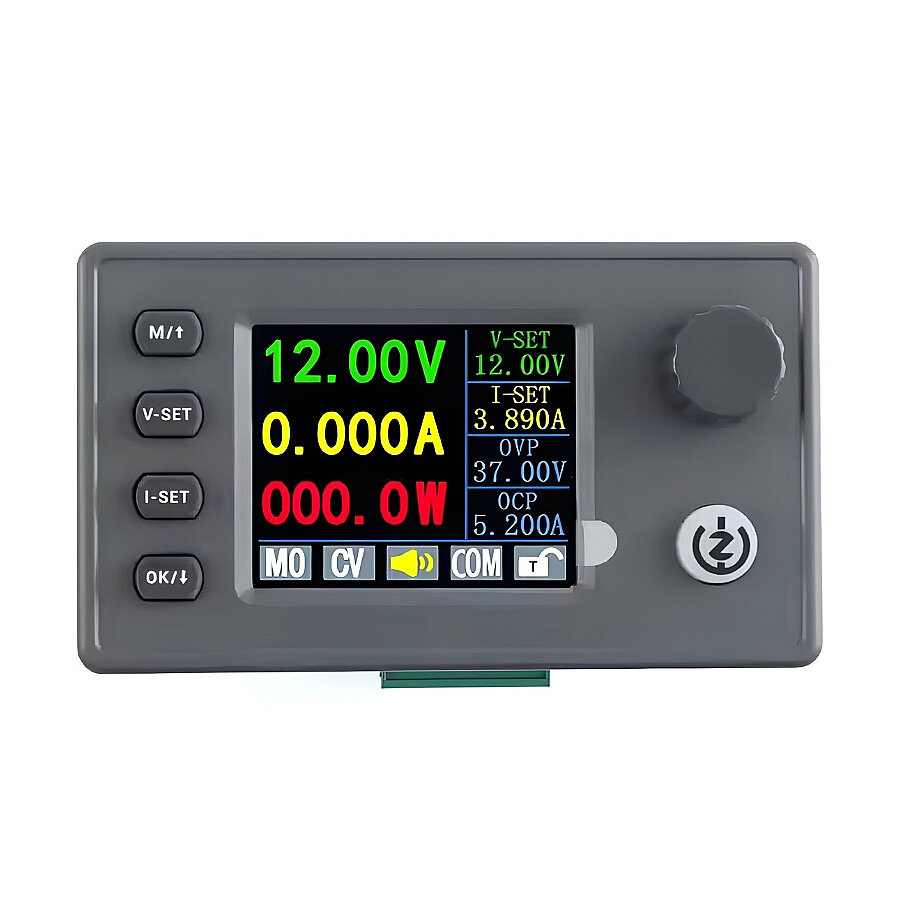

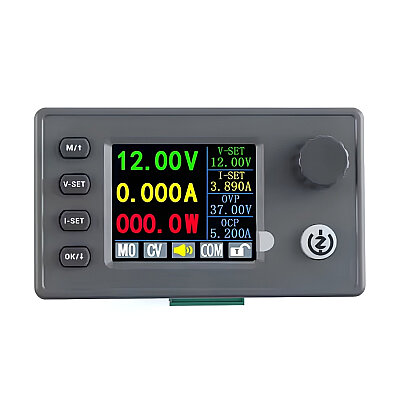

A standout feature of the module is its 1.8-inch color display. The screen displays not only output voltage and current but also power, capacity, energy, operating time, input voltage, CV/CC status, and communication information.

It also features a dedicated statistics screen and a real-time voltage-current curve display.

Specifications

• Input Voltage: 7–36V DC
• Output Voltage: 0.5–40V DC
• Output Current: 0–8A
• Rated Maximum Power: 150W
• Operating Mode: CV / CC
• Voltage Resolution: 0.01V
• Current Resolution: 0.001A
• Voltage Accuracy: ±0.3% + 3 digits
• Current Accuracy: ±0.5% + 3 digits
• Conversion Efficiency: Approx. 88%
• Soft Start: Yes
• Display: 1.8" color screen
• Voltage Curve: Yes
• Current Curve: Yes
• Memory Groups: 11 slots
• Memory Groups: M0–M10
• Buzzer: Yes
• Key Lock: Yes
• Chinese / English Menu: Yes
• Screen Brightness Adjustment: 0–5 levels
• Automatic Screen Off: Adjustable
