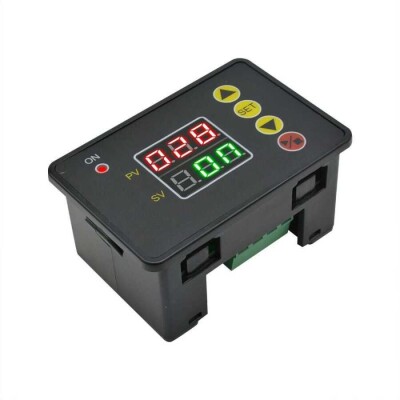

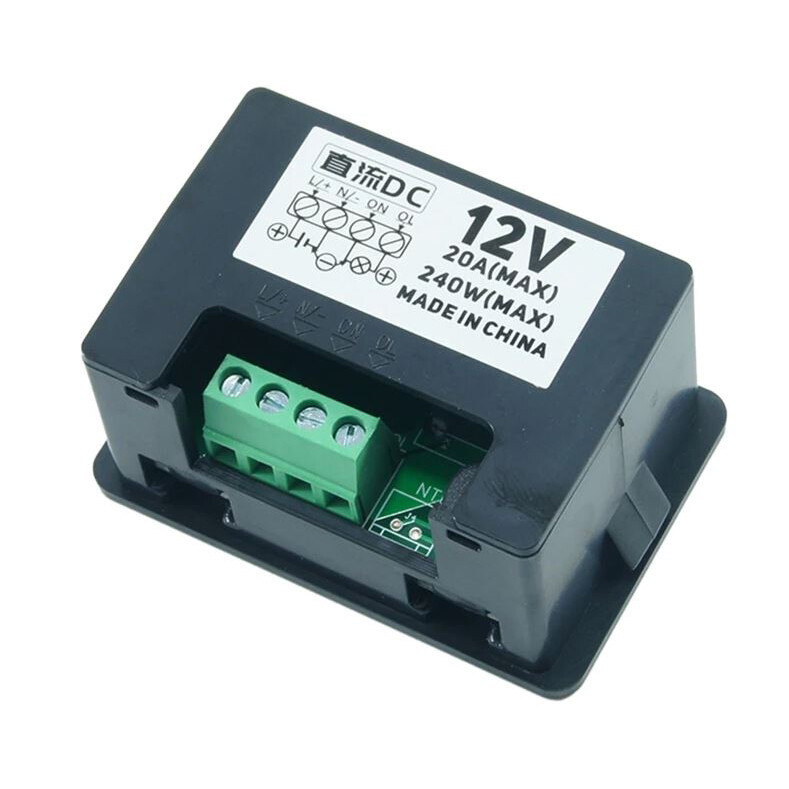

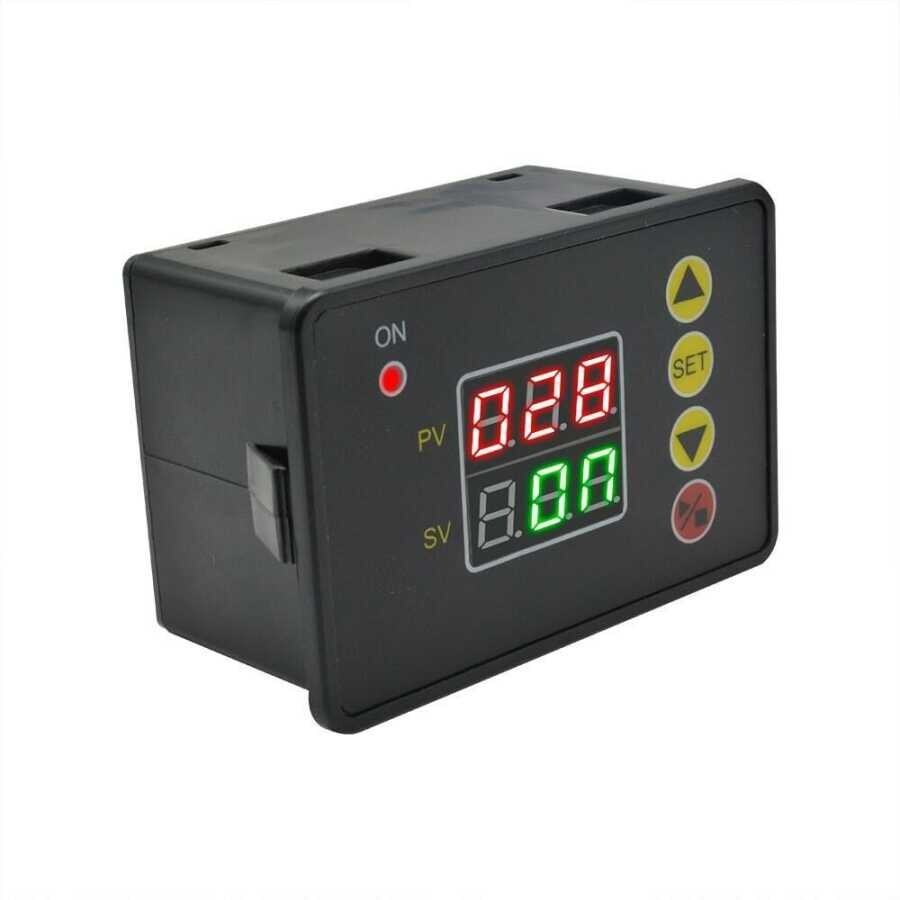

1.37" Timer Relay Module 12V
1.37" Timer Relay Module 12V is a timer relay that works with 12v DC voltage. There are 6 different operating modes. It has an operating range between 0 seconds and 99 hours.
Features:
- Operating Voltage ： DC12V
- Control circuit voltage ：DC12V
- Relay carrying power ： 2200W, 10A max.）
- Relay type ： Normally open relay
- Power consumption ： ＜ 1W
- Timing error ： ± 3s （24 hours）
- Weight ： 65g
- Dimension ： 67mm × 45mm × 34mm
Working Modes:
P0.0 and P1.0 are the on and off times of the product. The second digit represents the type of duration. 0 seconds, 1 minute, 2 hours.
P2: Operating Modes.
P2.0: The relay remains closed for the PV period and then opens.
P2.1: The relay remains open for the PV period. is closed.
P2.2: The relay remains closed for the duration of PV, and then remains open for the duration of SV. Then it closes.
P2.3: The relay remains open for the duration of PV, and then remains closed for the duration of SV. Then it opens.
P2.4: The relay remains closed for the duration of PV, and then remains open for the duration of SV. It repeats this in a cycle.
P2.5: The relay remains open for the duration of PV, and then remains closed for the duration of SV. It repeats this in a loop.
