ASY-3D AC 220V Delayed DPDT Digital Time Relay - 99.9S
696,00
TL
+
VAT
835,20
TL
Notify Me When It Arrives
696,00
TL
+
VAT
835,20
TL
Add to Favorite
RecommendCommentAlarm Price
ASY-3D AC 220V Delayed DPDT Digital Time Relay - 99.9S

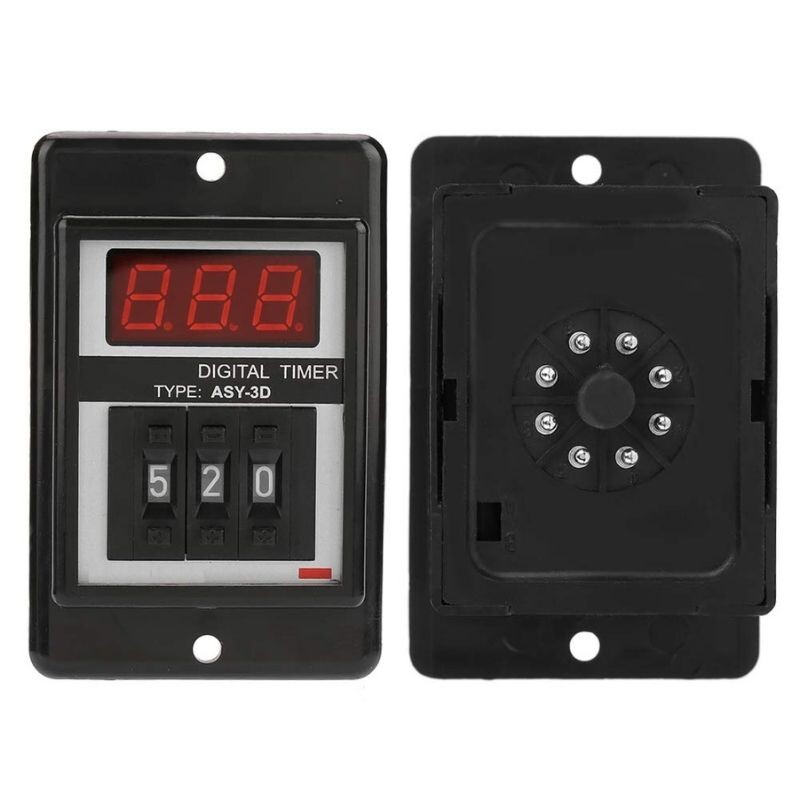

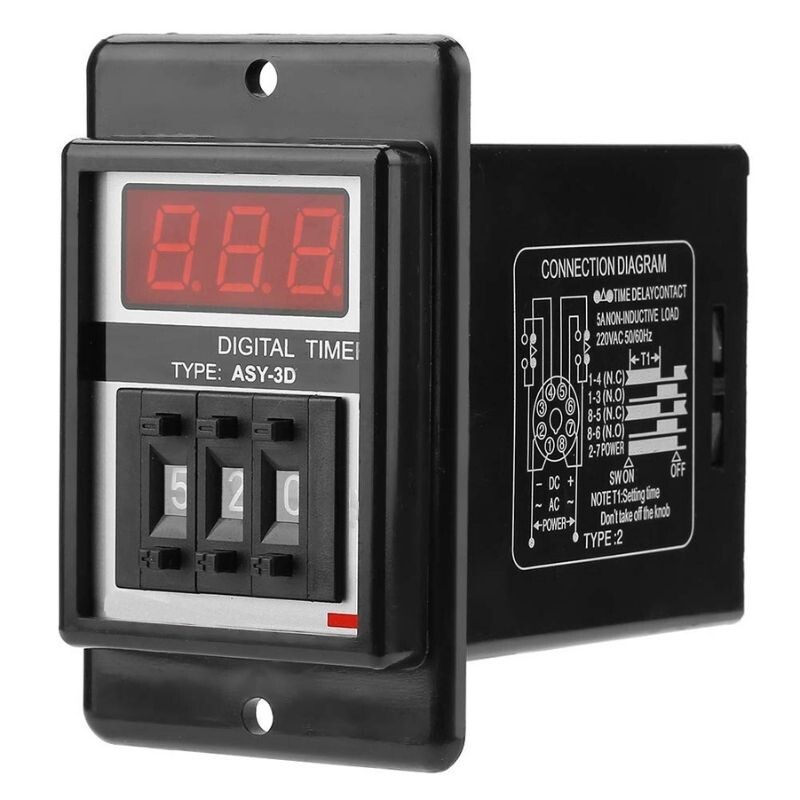

ASY-3D AC 220V Delayed DPDT Digital Time Relay - 99.9S. It is a delayed time relay that can be adjusted between 0 and 99.9 seconds. It has a digital display. Time adjustment can be made with the buttons at the bottom of the screen.

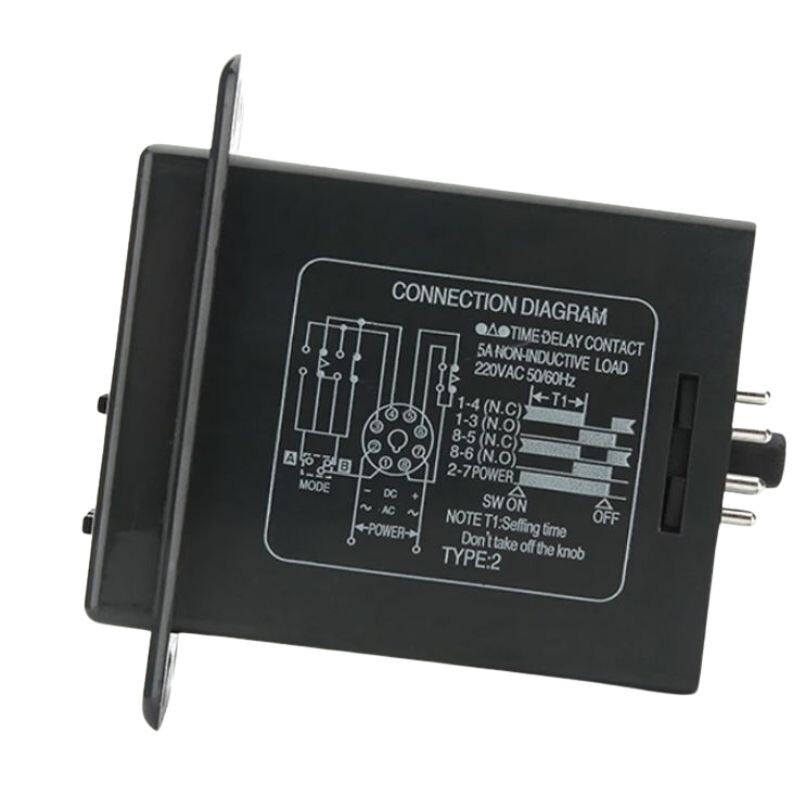

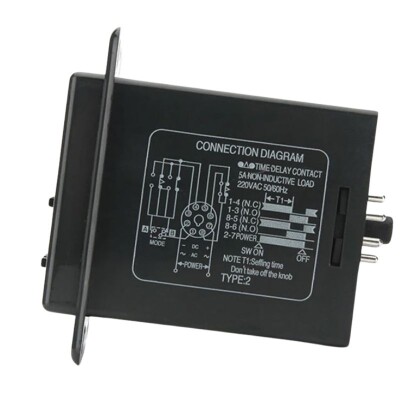

Adjustments such as delay or NO-NC contact are provided via connection. The product has 8 pins. Delay time or no-NC contact can be adjusted with different connections on 8 pins.
Technical Specifications
- Model: ASY-3D
- Adjustable Time: 0-99.9S
- Operating Voltage: 220V AC
- Contact Type: DPDT
- Operating Mode: On-Delay
- Rated Current: 10A
- Power: 5VA
- Frequency: 50/60Hz
- Size: 85x57x86mm
