YS-RT1M 12V Delayed Time Relay 0-120s

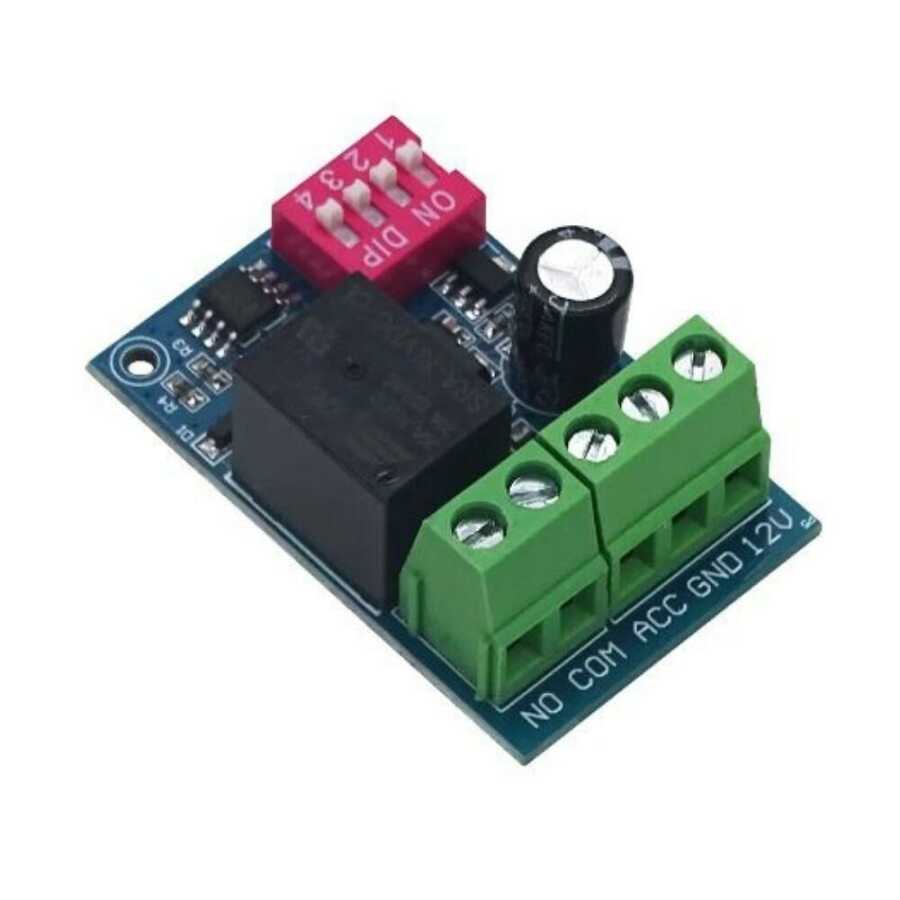

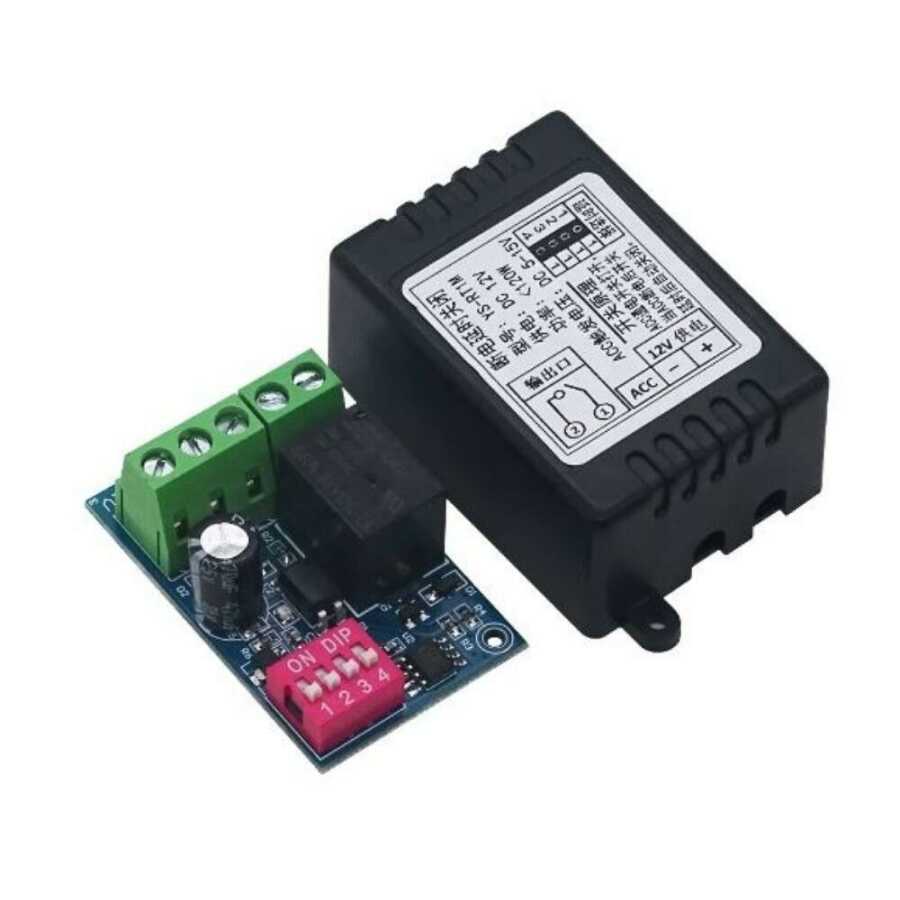

YS-RT1M 12V Delayed Time Relay 0-120s. It is a delayed time relay that works with 12VDC and can switch AC/DC. The time can be adjusted between 0-120 seconds with the 4-pin dip switch on it. Trigger input is made from ACC pin.

Technical Specifications

Model: YS-RT1M
Supply Voltage: 12VDC
Switching Voltage: 0-14VDC / 0-125VAC
Current: 10A
Operating Current: 68mA
Operating Temperature Range: -20 ~ 70°C
Dimensions: 50x35x22mm

Operating Method

After triggering the product when you release the trigger, it will continue to work for the specified time. When it is finished, you need to trigger it again to work again.

If you give the trigger continuously, it will work continuously, and when the trigger is released, the time will start counting.
