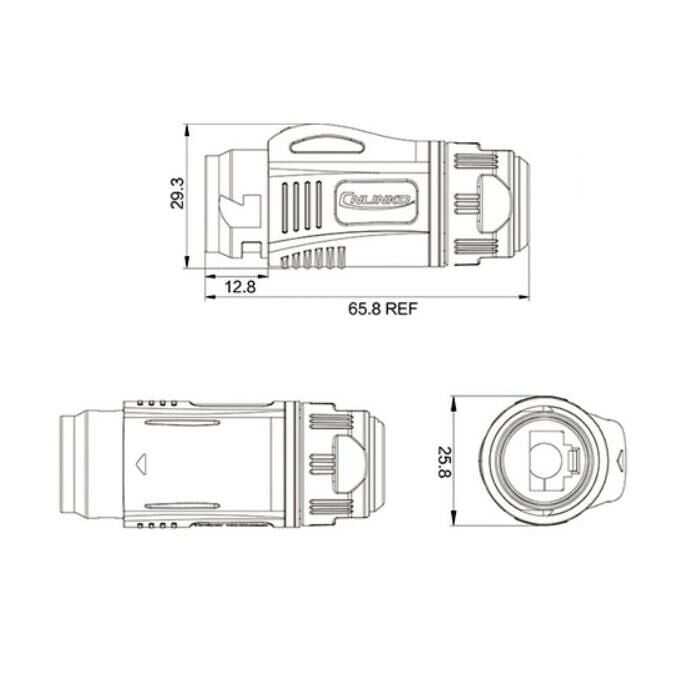

BD-24-C/RJ45/015/PE-43-001A Waterproof Ethernet Connector - Male

BD series is the newly developed modern style series products . Direct locking design ensures a more stable connection, more convenient operation and a more durable use time. Meet the quality and meet the environmental protection requirements of international industrial equipment. Quick plug design allows one-handed insertion/removal.

Suitable RJ45 cable plug protection for a fast and secure data connection. Simple slot for attached RJ45 cable (RJ45 cable not included).

BD-24-J/RJ45/213/SX-43-201 Waterproof Ethernet Connector - Female.

Technical Specifications

High temperature and pressure resistance
IP65/67 rating when connected
Connector Type: RJ45
Cable Connection - 24-26 AWG
Rated Current - 1.5 Amperes
Operating Voltage - 42V
Contact Resistance - <1mOhm
Withstand Voltage - 1000V
Ingress Protection - IP65/67
Operating Temperature - -40 C - 80 C
Body Material - High Performance Plastic

BD24 Waterproof Connector Datasheet
