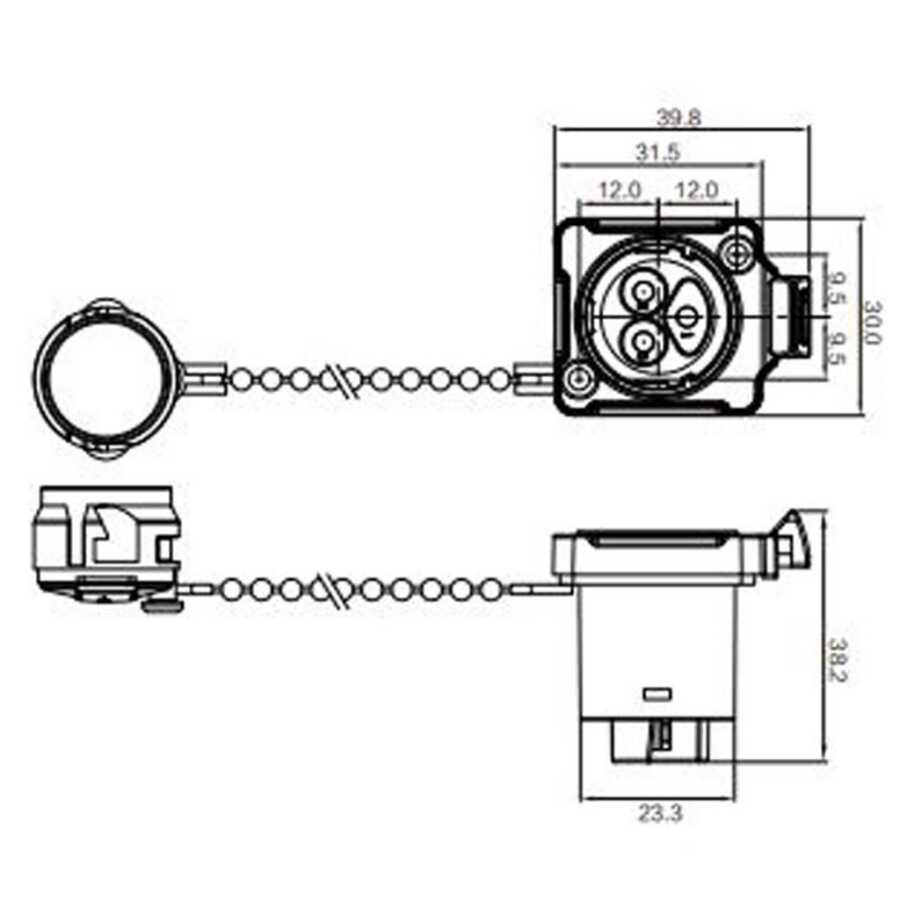

BD-24-J03SX-03-201A 3-Pin Waterproof Connector - Female

BD-24 series power and signal waterproof connectors, stand-alone or can be fixed together and used to provide solutions for equipment connections in different industries. It has uses such as audiovisual equipment, medical equipment, industrial control, test and measurement equipment, AV system, broadcast television and communications, industry. Suitable for connection of equipment installed on the front and back of the board.

The new BD-24 (M24 type) series waterproof connector adopts streamlined dynamic design, one-button device end push and quick plug-in .

BD-24-C03PE-23-001A 3-Pin Waterproof Connector - Male.

Technical Specifications

High temperature and pressure resistance
IP65/67 rating when connected
Number of Pins: 3
Pin Diameter - 3.2 mm
Cable Connection - 12-14 AWG
Rated Current - 25 Amperes
Operating Voltage - 500V AC
Contact Resistance - <5mOhm
Withstand Voltage - 2500V
Ingress Protection - IP65/67
Operating Temperature - -40 C - 80 C
Body Material - High Performance Plastic
Flammability Rating- UL94-V0

BD24 Waterproof Connector Datasheet
