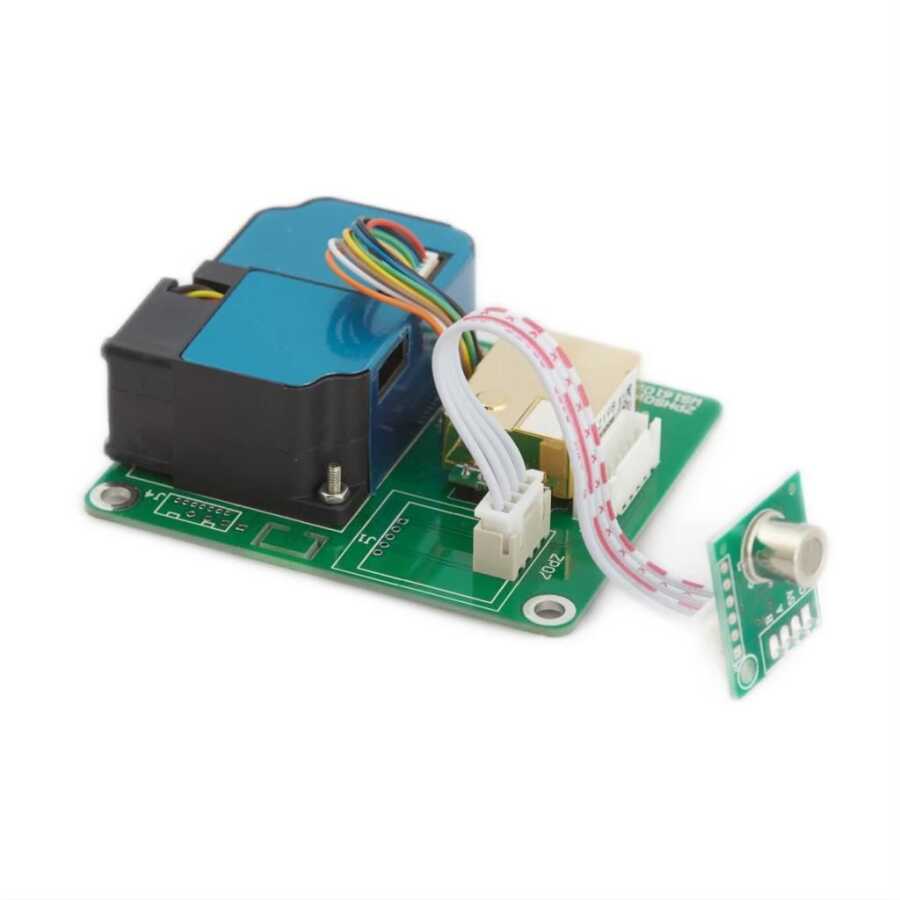

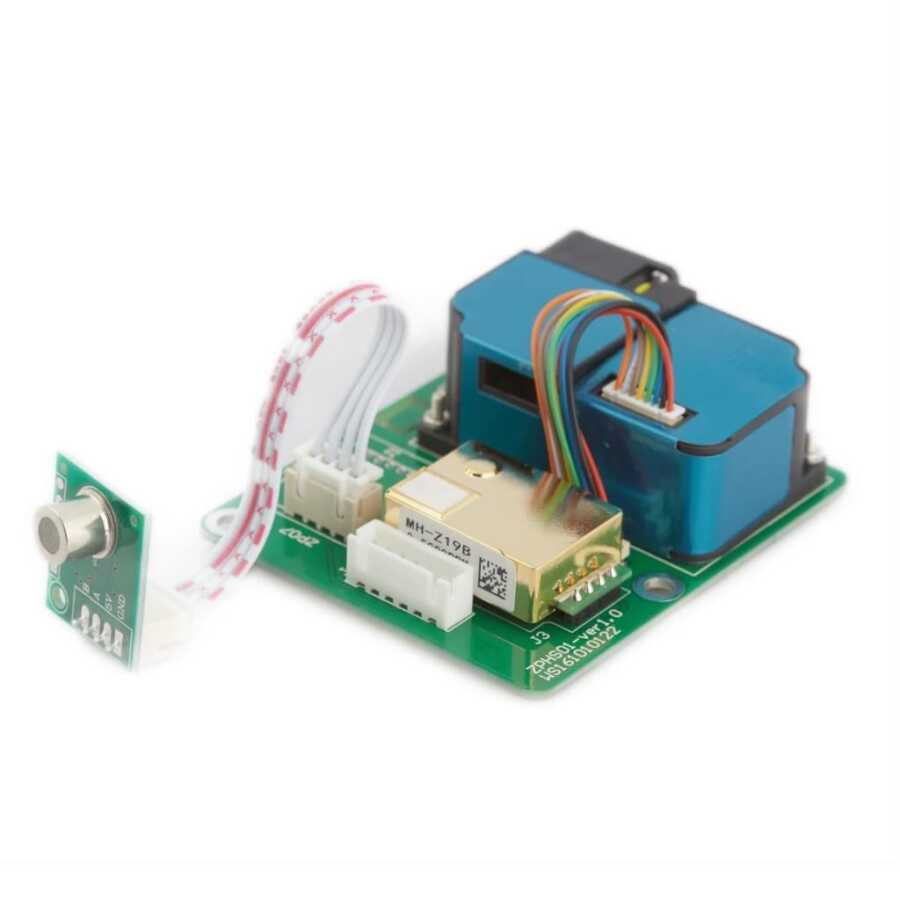

ZPHS01 All-in-one Gas Detection Module
ZPHS01 contains sensors that enable CO2, PM2.5, VOC, temperature and humidity measurement. contains. There is no need to use separate products for these measurements. It uses serial port (TTL) communication protocol.
Suitable for use in air quality measurements, smart home applications, gas detection, temperature and humidity measurements.
Pins:
- PIN1 TX serial port (board serial port sender) 3V TTL level
- PIN2 RX serial port (board serial port receiver) 3V TTL level
- PIN3 +5V Power input (+5V)
- PIN4 GND Power input (Ground terminal)
- PIN5 SL
- PIN6 SD
Features:
- Product number: ZPHS01
- category: Carbon dioxide, PM2.5, VOC, temperature, humidity
- Inhibiting gas: ,etc.
- Operating Voltage: 5V
- Average current: ＜200mA
- Interface level: 3V (compatible with 3.3V)
- Output signal: UART, IIC
- Preheat time: ≤5min
- CO2 range: 0-5000ppm
- pm2.5 range: 0-1000μg/
- VOC range: 4 rows
- Temperature range: -10~50℃
- Temperature accuracy: ±0.5℃
- Humidity range: 0~100%RH
- Humidity accuracy: ±% 3
