1.28'' 240x240 Round Oled LCD Screen

WaveShare
Product code : EKN.OLD.01.000007
838,50 TL + VAT
1.006,20 TL
838,50 TL + VAT
1.006,20 TL
Add to Favorite
 10+
RecommendCommentAlarm Price

1.28'' 240x240 Round Oled LCD Screen

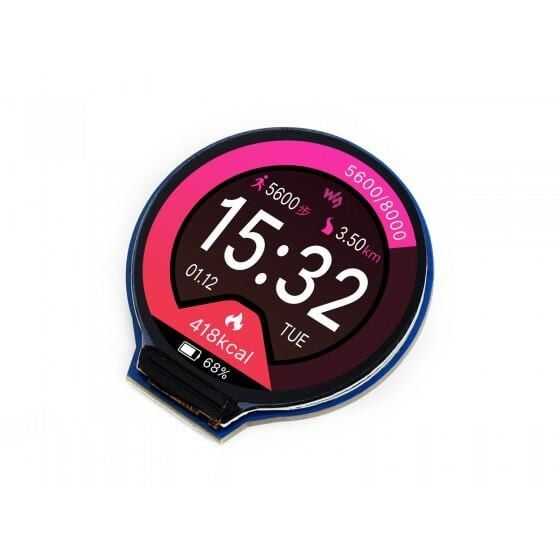

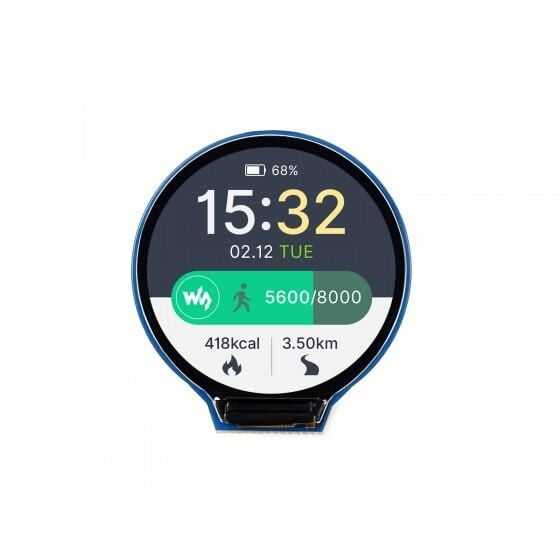

1.28'' 240x240 Round Oled LCD Screen has a clear and vivid screen with 240 × 240 resolution, 65K RGB colors.

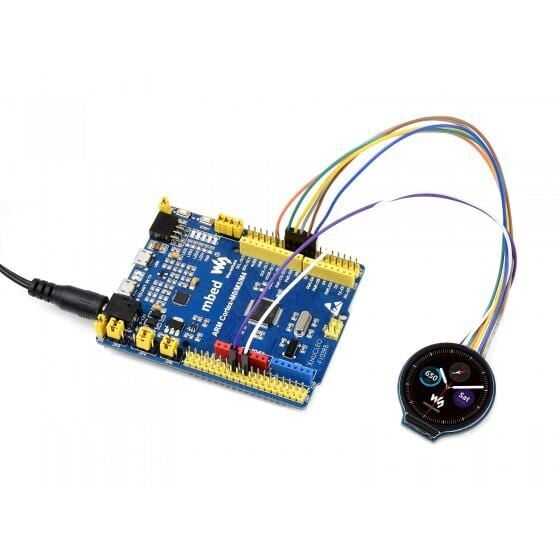

SPI interface minimizes required IO pins, supports controller boards such as Raspberry Pi/Jetson Nano/Arduino/STM32.
User Manual

Features:

  • Operating Voltage: 3.3-5V
  • Resolution: 240x240
  • Display Panel: IPS
  • Screen Size: Φ32.4mm
  • Driver: GC9A01
  • Interface: 4-wire SPI
  • Pixel size: 0.135 × 0.135mm

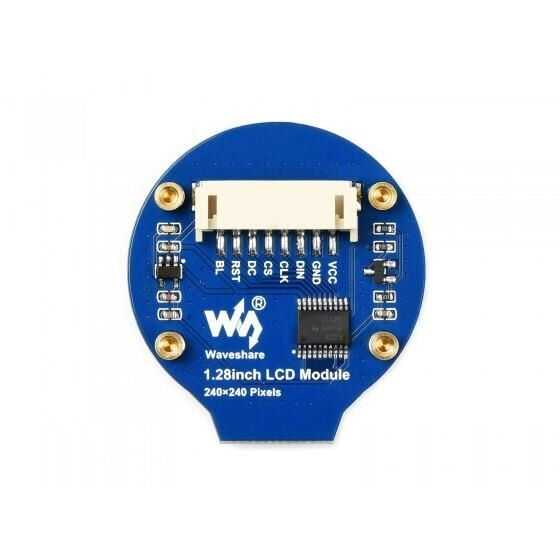

Pinout

1.28'' 240x240 Round Oled LCD Screen

Size

1.28'' 240x240 Round Oled LCD Screen
