2.8'' Touch LCD Shield ILI9341 MRB2801
575,00
TL
+
VAT
690,00
TL
Notify Me When It Arrives
Notify Me When It Arrives

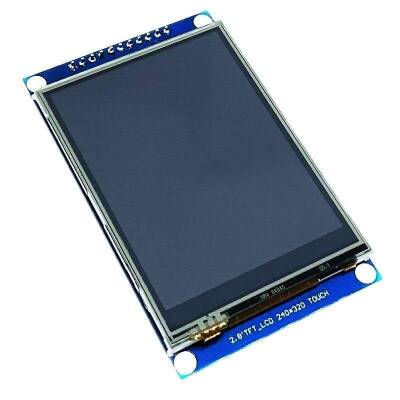

2.8'' Touch LCD Shield ILI9341 MRB2801
2.8'' Touch LCD Shield ILI9341 MRB2801. Directly compatible with ALIENTEK STM32 Mini, Elite, WarShip, Explorer and Apollo cards.
*2.8 inch color screen, supports 16BIT RGB 65K color screen, displays rich colors
*240x320 resolution for clear image
*8-bit / 16-bit parallel bus switching support (default is 16-bit), fast transfer speed
*ALIENTEK STM32 Mini, Elite, WarShip for direct plug-in use Supports Explorer and Apollo development boards
*Touch function support
*Provides a rich sample program for STM32 and C51 platforms
*240x320 resolution for clear image
*8-bit / 16-bit parallel bus switching support (default is 16-bit), fast transfer speed
*ALIENTEK STM32 Mini, Elite, WarShip for direct plug-in use Supports Explorer and Apollo development boards
*Touch function support
*Provides a rich sample program for STM32 and C51 platforms
Technical Specifications
- Power: + 3.3 / 5 VDC (Internal Regulator)
- Current: <100mA
- Screen Type: 2.8 "TFT" color LCD
- Colors: 65K
- Resolution: 240 x 320 RGB pixels
- Touch Chip: XPT2046
- Display mode: Transmissive
- Backlight: 4 x White LED
- Viewing Angle: 12 o'clock
- Operating Temperature: -20 ° C ~ + 60 ° C
- Storage Temperature: -30 ° C ~ + 70 ° C

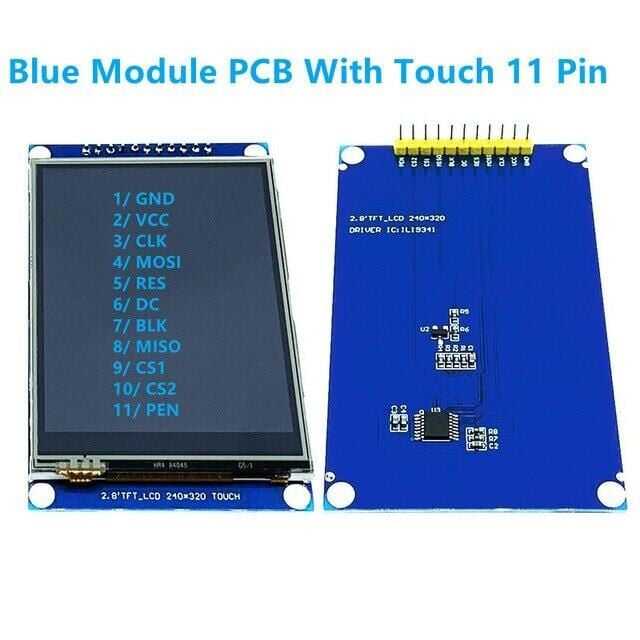

- Connections: 11 Pin
